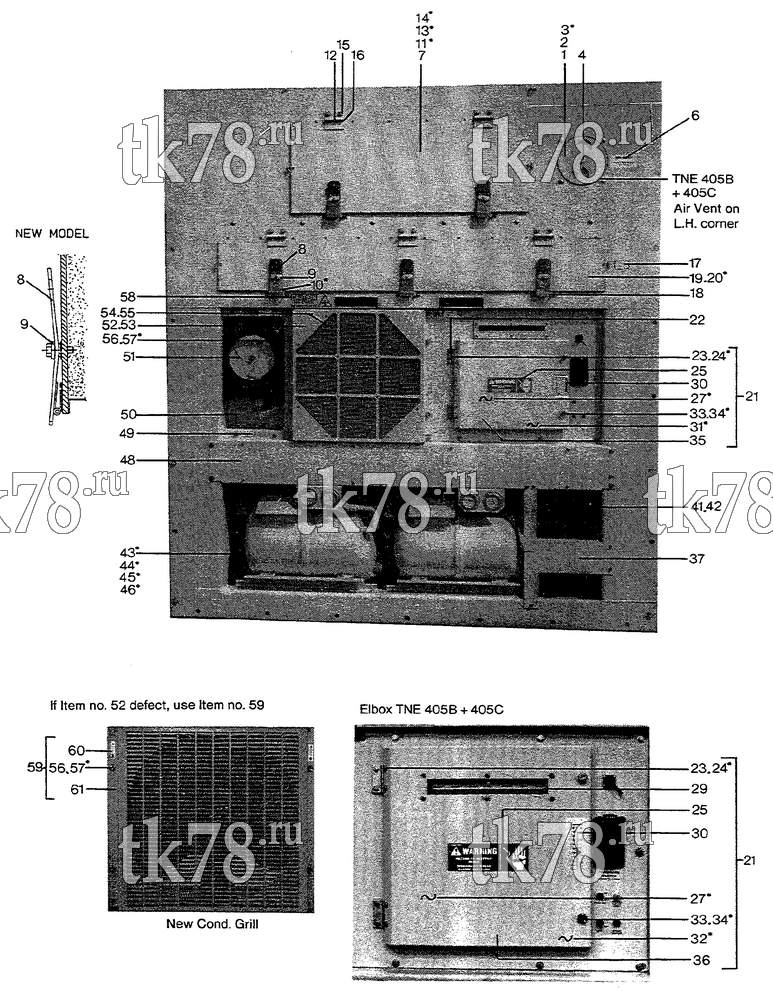

Установкa Thermo King TNE 405 A, B, C схема REFRIGERATION UNIT - FRONT VIEW (TNE 405 A, B, C) – 150E11
Обновление от: 9/10/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-3053 | PLATE - vent (360-53882) | 1 | |
| 2 | 503-151 | PLATE - vent (060-06908) | 1 | |
| 3 | 503-201 | GASKET - air vent (K28-10688) | 1 | |
| 4 | 509-646 | HANDLE - vent lock (360-07913) | 1 | |
| 5 | Not Used | |||
| 6 | 509-1059 | NAMEPLATE - Air Vent (K35-05615) | 1 | |
| 7 | 509-695 | DOOR - evaporator (incl 8-16) (360-53137) | 1 | |
| 8 | 91-9041 | LATCH - door | 2-3 | |
| 9 | 91-9040 | KNOB - latch | 2-3 | |
| 10 | 91-8134 | INSULATOR - latch (K28-50067-14) | 2-3 | |
| 11 | 503-212 | GASKET - evaporator door (K28-51502) | 1 | |
| 12 | 509-1014 | HINGE - complete (incl 15 & 16) (K29-51572) | 2-3 | |
| 13 | 509-937 | STRAP (15 in, rubber) (K28-10691) | 2-3 | |
| 14 | 91-9039 | HOOK - strap | 2-3 | |
| 15 | N/A | PIN - hinge (K29-51573) | 2-3 | |
| 16 | 505-219 | SPLIT - hinge pin (K21-51573) | 2-3 | |
| 17 | 509-1092 | NAMEPLATE - Customs Sealed (K35-50048) | 6 | |
| 18 | 91-8195 | KEEPER - door latch (060-07964) | 2 | |
| 19 | 509-683 | DOOR - heat assembly (incl 8-20) (360-51240) | 1 | |
| 20 | 503-213 | GASKET - heat door (K28-51503) | 1 | |
| 21 | 504-286 | DOOR - electric assembly (TNE 405-405A, incl 23-35) (360-53575) | 1 | |
| 509-667 | DOOR - electric assembly (TNE 405B-405C, incl 23-36) (360-50599) | 1 | ||
| 22 | 509-1005 | HINGE - complete (K29-17880) | 1 | |
| 23 | 91-9381 | HINGE - female part (K29-17880-01) | 2 | |
| 24 | 55-9392 | INSULATOR - warning (K28-50067-02) | 2 | |
| 25 | 509-1045 | NAMEPLATE - Warning (K35-04184) | 1 | |
| 26 | Not Used | |||
| 27 | 509-1063 | NAMEPLATE - Electric Diagram (K35-05638) | 1 | |
| 28 | Not Used | |||
| 29 | 509-957 | COVER - plexiglass (K28-50069) | 1 | |
| 30 | 509-1056 | NAMEPLATE - Conversion (F or C) (K35-05610) | 1 | |
| 31 | 503-202 | GASKET - electric door (TNE 405-405A) (K28-10689) | 1 | |
| 32 | 503-203 | GASKET - electric door (TNE 405B-405C) (K28-50016) | 1 | |
| 33 | 505-585 | SCREW - door (quick open) (K21-72462-00) | 2 | |
| 34 | 55-8919 | RETAINER - screw (K21-16182) | 1 | |
| 35 | 509-1561 | PLATE - electric door (TNE 405-405A) (060-7668) | 1 | |
| 36 | 91-9086 | PLATE - electric door (TNE 405B-405C) (060-50592) | 1 | |
| 37 | 509-645 | RETAINER - cable (360-07822) | 1 | |
| 38 | Not Used | |||
| 39 | Not Used | |||
| 40 | Not Used | |||
| 41 | 41-1976 | PLUG (4-pin, 380/440, 32 amp, ISO, power) | 1 | |
| 42 | 41-2503 | CABLE - power | 1 | |
| 43 | 506-101 | KAZOO - drain type (060-02709) | 2 | |
| 44 | 505-286 | CLAMP - drain type (K23-08856) | 4 | |
| 45 | 509-306 | TUBE - drain (060-53075) | 2 | |
| 46 | 509-686 | TUBE - drain (complete) (360-53074) | 1 | |
| 47 | Not Used | |||
| 48 | 509-692 | BRACKET - condenser coil (front) (360-53113) | 1 | |
| 49 | 509-277 | HANDGRAB (option) (060-51098) | 1 | |
| 50 | 91-9087 | BRACKET - recorder (360-07630) | 1 | |
| 51 | 45-1673 | RECORDER | 1 | |
| 52 | Not Used | |||
| 53 | Not Used | |||
| 54 | Not Used | |||
| 55 | Not Used | |||
| 56 | 505-585 | SCREW - door (quick open) (K21-72462-00) | 4 | |
| 57 | 55-8919 | RETAINER - screw (K21-16182) | 4 | |
| 58 | 509-1048 | NAMEPLATE - Caution (K35-04602) | 1 | |
| 59 | 509-685 | GRILLE - condenser fan (complete, incl 55-61) (360-53055) | 1 | |
| 60 | 509-1047 | NAMEPLATE - arrow (K35-04538) | 2 | |
| 61 | 509-685 | GRILLE - plate, condenser fan (060-53151) | 1 |
