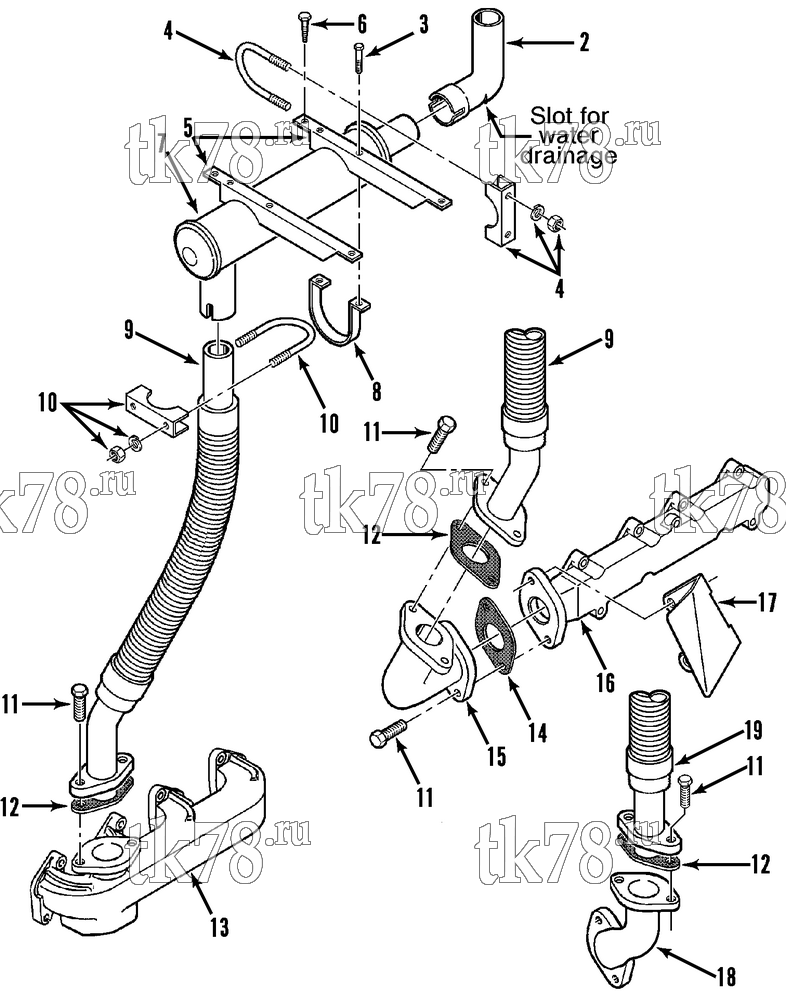

Установкa Thermo King TK6000 30 w/se 2.2 Engine схема MUFFLER GROUP – 97A11
Обновление от: 12/6/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | Not Used | |||
| 2 | 11-7287 | TUBE - exhaust | 1 | |
| 3 | 55-2963 | SCREW - clamp | 4 | |
| 55-2959 | LOCKWASHER | 4 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 4 | 99-496 | U-CLAMP - muffler (1-5/8 id) | 1 | |
| 5 | 99-3259 | BRACKET - muffler | 2 | |
| 6 | 55-5046 | SCREW - bracket | 4 | |
| 7 | 12-573 | MUFFLER (steel) | 1 | |
| 12-645 | MUFFLER (ss) | 1 | ||
| 8 | 99-3639 | CLAMP - muffler | 2 | |
| 9 | 11-8052 | TUBE - exhaust (before 6/95) | 1 | |
| 10 | 99-454 | CLAMP - muffler (1-3/4 id) | 1 | |
| 11 | 55-139 | SCREW - flange | 2 | |
| 55-790 | LOCKWASHER | 2 | ||
| 55-312 | NUT | 2 | ||
| 12 | 33-2113 | GASKET - flange | 1 | |
|
10-33-2113 | Прокладка выхлопной системы, Isuzu C-201 | 1 040 ₽ |
|
| 13 | 11-5864 | MANIFOLD - exhaust (before 6/95) | 1 | |
| 14 | 33-2314 | GASKET - flange | 1 | |
| 33-2314 OEM | Прокладка глушителя, Isuzu 2.2 DI (D201), Yanmar 482 / 486 / 486V | 1 250 ₽ |
|
|
|
10-33-2314 | Прокладка глушителя, Isuzu 2.2 DI (D201), Yanmar 482 / 486 / 486V | 990 ₽ |
|
|
PP-33-2314 | Прокладка глушителя, Isuzu 2.2 DI (D201), Yanmar 482 / 486 / 486V | 480 ₽ |
|
| 15 | 11-8086 | ELBOW - exhaust (before 6/95) | 1 | |
| 11-8661 | ELBOW - exhaust (6/95 & after) | 1 | ||
| 16 | 11-7398 | MANIFOLD - exhaust (6/95 & after) | 1 | |
| 17 | 91-5913 | SHIELD - heat | 1 | |
| 18 | 11-8661 | ELBOW - exhaust (6/95 & after) | 1 | |
| 19 | 11-8662 | TUBE - exhaust (6/95 & after) | 1 |
