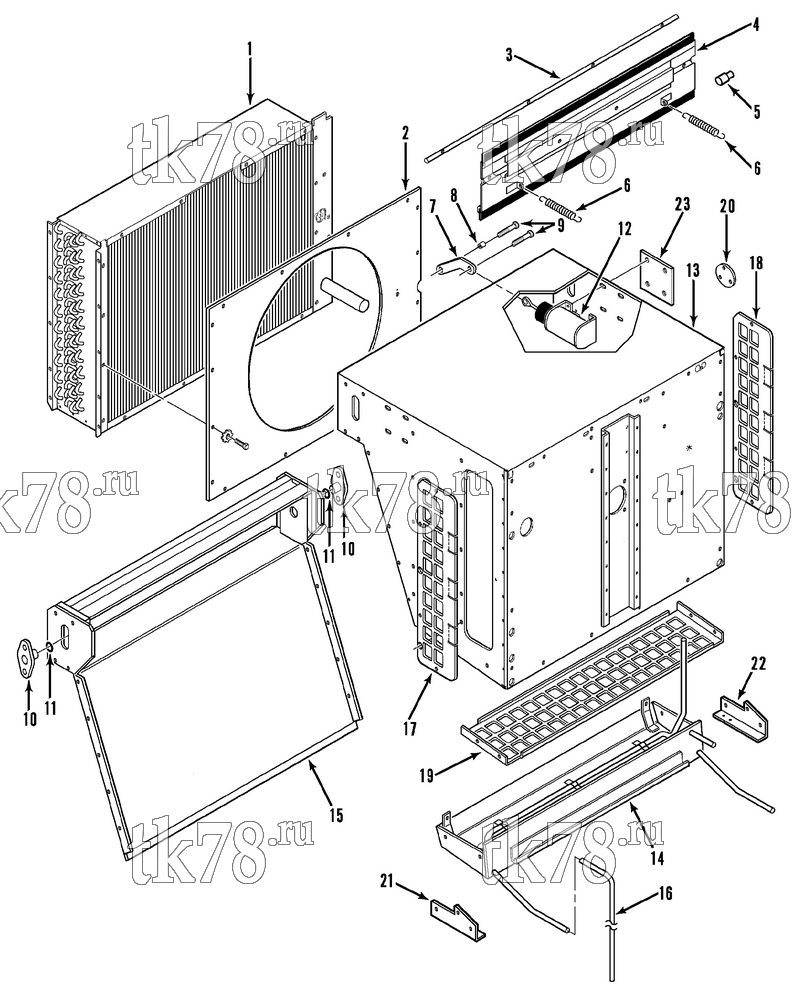

Установкa Thermo King TK6000 30 w/se 2.2 Engine схема EVAPORATOR GROUP – 96B7
Обновление от: 9/23/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-985 | COIL - evaporator | 1 | |
| 67-1175 | COIL - evaporator (vinyl dip) | 1 | ||
| 55-6722 | INSERT - threaded (10-32) | 20 | ||
| 55-3027 | SCREW - evaporator to drain pan brackets | 20 | ||
| 55-5676 | WASHER - special (drain pan) | 5 | ||
| 2 | 91-2664 | ORIFICE | 1 | |
| 55-2977 | SCREW - orifice | 16 | ||
| 55-3045 | WASHER - dome | 16 | ||
| 55-6733 | INSERT - threaded (1/4-20) | 16 | ||
| 3 | 77-1997 | SHAFT - damper | 1 | |
| 55-5757 | SCREW - shaft | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-4223 | NUT | 4 | ||
| 4 | 98-3899 | BLADE - damper | 1 | |
| 5 | 91-3599 | STOP - damper | 2 | |
| 55-3031 | SCREW - stop | 2 | ||
| 6 | 99-317 | SPRING - damper | 2 | |
|
10-99-317 | Пружина | 500 ₽ |
|
| 7 | 91-2663 | LINKAGE - damper | 1 | |
| 203-304 | GREASE | A/R | ||
| 8 | 99-837 | SPACER - linkage | 1 | |
| 9 | 55-3027 | SCREW - link | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-2965 | NUT | 1 | ||
| 10 | 99-6565 | BEARING - damper | 2 | |
|
10-99-6565 | Демпфер | 1 040 ₽ |
|
| 55-2129 | SCREW - bearing | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 11 | 55-5675 | WASHER - special | 2 | |
| 12 | 44-2823 | SOLENOID - damper | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 55-2762 | BOLT - eye | 1 | ||
|
10-55-2762 | Шток | 1 050 ₽ |
|
| 91-3095 | BOOT - eye bolt | 1 | ||
|
10-91-3095 | Крышка плунжера соленоида оборотов двигателя | 1 890 ₽ |
|
| 203-304 | GREASE | A/R | ||
| 44-7096 | HARNESS - ground | 1 | ||
| 44-2756 | DIODE | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 99-3588 | BOLTSTRIP - solenoid | 2 | ||
| 55-4953 | NUT - solenoid | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 13 | 98-3897 | HOUSING - evaporator | 1 | |
| 98-4527 | HOUSING - evaporator (TC) | 1 | ||
| 98-4628 | HOUSING - evaporator (R22) | 1 | ||
| 14 | 98-3900 | PAN - drain | 1 | |
| 203-389 | SEALER - polyurethane (white) | A/R | ||
| 55-6733 | INSERT - threaded (1/4-20) | 8 | ||
| 55-5972 | SCREW - pan (torx head) | 8 | ||
| 15 | 98-3898 | PANEL - rear access | 1 | |
| 203-389 | SEALER - polyurethane (white) | A/R | ||
| 55-6721 | INSERT - threaded (#10-32) | 6 | ||
| 55-6733 | INSERT - threaded (1/4-20) | 8 | ||
| 55-5972 | SCREW - pan (torx head) | 8 | ||
| 16 | 99-2230 | HOSE - drain | 2 | |
| 66-1273 | VALVE - check (hose) | 2 | ||
| 17 | 91-5399 | SCREEN - curbside | 1 | |
| 18 | 91-5400 | SCREEN - roadside | 1 | |
| 91-5521 | SCREEN - roadside (TC) | 1 | ||
| 19 | 91-5401 | SCREEN - bottom | 1 | |
| 20 | 99-2235 | PLATE - cover | 1 | |
| 55-3561 | SCREW - plate | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 21 | 91-2665 | ANGLE - pan | 1 | |
| 22 | 91-2666 | ANGLE - pan | 1 | |
| 23 | 99-6349 | PLATE - switch cover | 2 |
