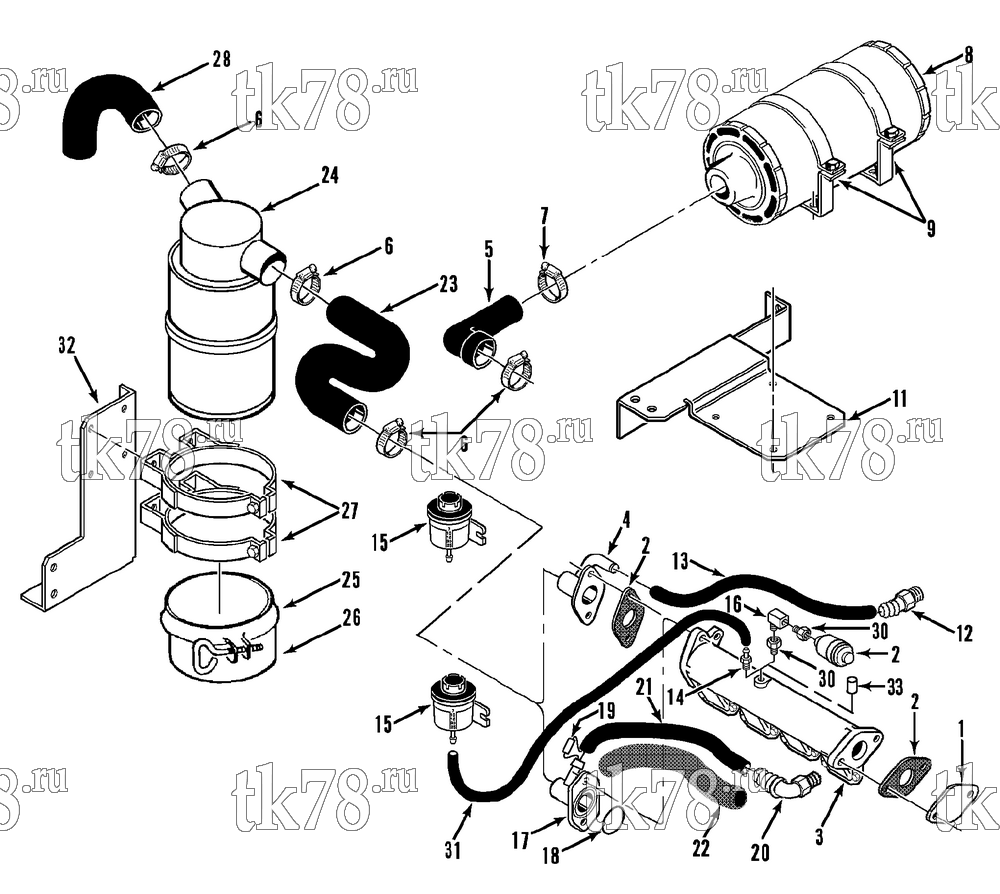

Установкa Thermo King TK6000 30 w/se 2.2 Engine схема AIR CLEANER GROUP – 96B1
Обновление от: 3/3/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-7427 | COVER - manifold | 1 | |
| 2 | 33-2341 | GASKET - air intake | 2 | |
| 3 | 11-7397 | MANIFOLD - intake (see 100C4) | 1 | |
| 4 | 91-4177 | HOUSING - air intake | 1 | |
| 55-5022 | SCREW - housing | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-4613 | FLATWASHER | 2 | ||
| 5 | 91-5359 | HOSE - air cleaner | 1 | |
| 6 | 55-4979 | CLAMP - hose (2.5 id) | 1 | |
| 7 | 55-1636 | CLAMP - hose (3.0 id) | 1 | |
| 8 | 11-7400 | FILTER - air cleaner | 1 | |
|
11-7400 OEM | Фильтр воздушный, SB/SMX | 3 460 ₽ |
|
|
US-11-7400 | Фильтр воздушный, SB/SMX | 2 460 ₽ |
|
|
10-11-7400 | Фильтр воздушный, SB/SMX | 1 590 ₽ |
|
| 9 | 11-5562 | CLAMP - air cleaner | 2 | |
| 10 | 55-141 | SCREW - clamp | 4 | |
| 55-371 | FLATWASHER | 4 | ||
| 55-4967 | NUT | 4 | ||
| 11 | 91-8334 | BRACKET - air cleaner | 1 | |
| 55-6542 | SCREW - bracket | 4 | ||
| 55-5006 | LOCKWASHER | 4 | ||
| 12 | 55-1592 | FITTING - breather | 1 | |
| 13 | 11-7687 | HOSE - breather | 1 | |
| 14 | 55-6132 | FITTING - air restriction indicator (before 8/15/93) | 1 | |
| 15 | 11-9262 | INDICATOR - air restrictor | 1 | |
| 16 | 55-2505 | ELBOW | 1 | |
| 10-317 | KIT - adapter & hose (air inlet, molded, 11/93 & after) | 1 | ||
| 17 | 11-8858 | ADAPTER - air intake | 1 | |
| 18 | 33-2854 | O-RING - adapter | 1 | |
| 19 | 91-7555 | RESTRICTOR | 1 | |
| 20 | 55-1592 | CONNECTOR - hose (breather) | 1 | |
| 21 | 11-8900 | HOSE - breather (5/8) | 1 | |
| 22 | 11-8901 | HOSE - insulation | 1 | |
| 55-5022 | SCREW - adapter | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-4613 | FLATWASHER | 2 | ||
| 23 | 11-8045 | HOSE - air cleaner (oil bath, preformed) | 1 | |
| 24 | 11-3975 | CLEANER - air (oil bath) | 1 | |
| 25 | 11-3631 | CLAMP - cup | 1 | |
| 33-828 | GASKET - cup | 1 | ||
| 26 | 11-2536 | CUP | 1 | |
| 11-2670 | CUP - inner | 1 | ||
| 27 | 11-3326 | CLAMP - air cleaner | 1 | |
| 28 | 11-4579 | ELBOW - air cleaner | 1 | |
| 29 | 11-7757 | INDICATOR - air restrictor | 1 | |
|
10-11-7757 | Индикатор засорения | 6 410 ₽ |
|
| 30 | 11-7828 | FITTING - air restriction indicator (after 8/16/93) | 1 | |
| 31 | 11-4367 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 32 | 91-8336 | BRACKET - oil bath air cleaner | 1 | |
| 55-6542 | SCREW - bracket | 4 | ||
| 55-5006 | LOCKWASHER | 4 | ||
| 33 | 55-3364 | PLUG - pipe (oil bath option) | 1 |
