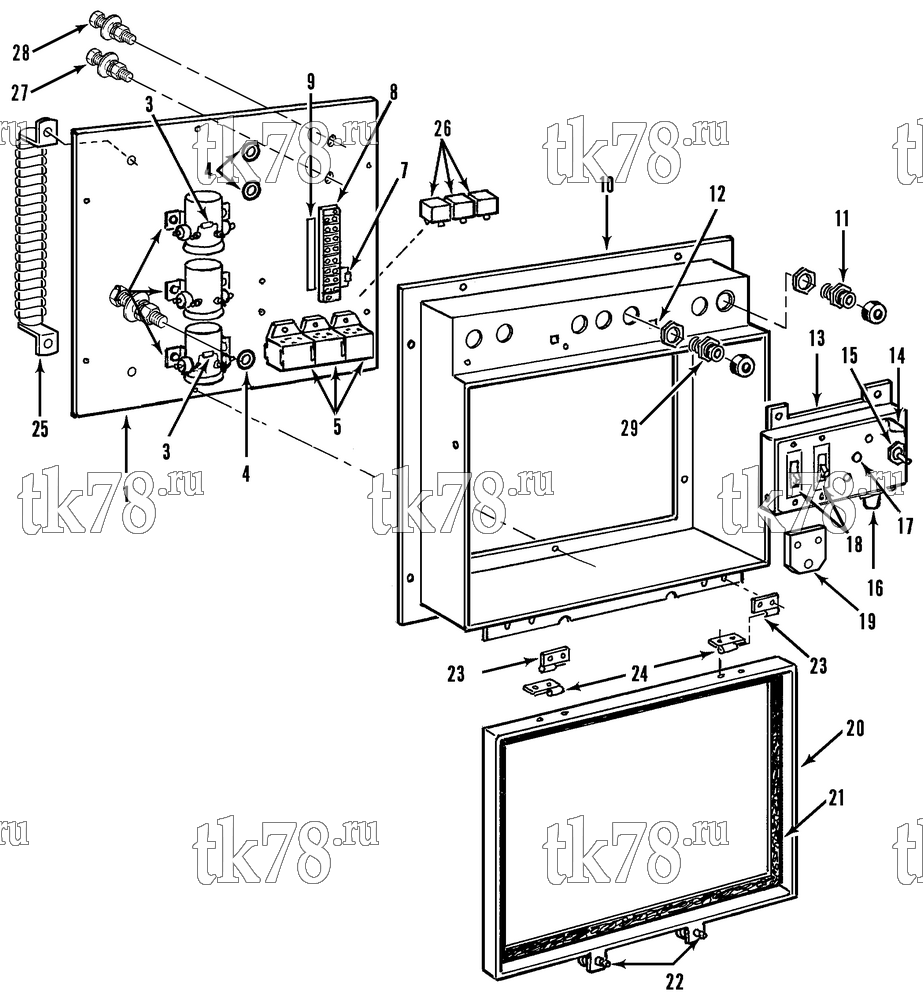

Установкa Thermo King THU8-M1, M1A, M2, M3, M4 схема CONTROL BOX ASSEMBLY (M4) – 99C9
Обновление от: 3/4/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-855 | PLATE - control box | 1 | |
| 55-2995 | SCREW - plate | 6 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 55-4560 | NUT | 6 | ||
| 2 | 44-4397 | SOLENOID | 3 | |
| 55-3021 | SCREW - solenoid | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 3 | 44-6007 | DIODE | 2 | |
| 4 | 33-282 | GROMMET | 3 | |
| 5 | 44-5537 | SOCKET - relay | 3 | |
| 55-3015 | SCREW - socket | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 6 | 44-9112 | RELAY - defrost switch | 1 | |
| 7 | 44-7889 | DIODE | 1 | |
| 8 | 44-5057 | BOARD - terminal | 1 | |
| 55-4487 | SCREW - board | 2 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 9 | 91-2804 | MARKSTRIP | 1 | |
| 10 | 91-856 | BOX - control (only) | 1 | |
| 11 | 55-5900 | CONNECTOR | 7 | |
| 12 | 55-5121 | NUT - captive | 2 | |
| 13 | 91-296 | BRACKET - circuit breaker | 1 | |
| 55-3024 | SCREW - bracket | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-4560 | NUT | 3 | ||
| 14 | 91-297 | NAMEPLATE - Circuit Breaker | 1 | |
| 15 | 44-1357 | SWITCH - service light | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 16 | 44-5112 | LIGHT - service | 1 | |
| 44-984 | BULB - light | 1 | ||
| 17 | 44-7217 | BREAKER - circuit (boost pump) | 1 | |
| 55-2991 | SCREW - circuit breaker | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 18 | 44-5494 | BREAKER - circuit (motor) | 2 | |
| 55-3513 | SCREW - circuit breaker & jumper | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-3014 | LOCKWASHER | 4 | ||
| 19 | 44-7583 | JUMPER - circuit breaker | 1 | |
| 55-2683 | SCREW - terminal | 1 | ||
| 55-3471 | LOCKWASHER (internal tooth) | 2 | ||
| 55-3672 | LOCKWASHER (internal/external) | 1 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 55-2640 | NUT | 2 | ||
| 20 | 91-298 | COVER - control box | 1 | |
| 21 | 33-1872 | GASKET - cover | 1 | |
| 22 | 55-5396 | SCREW - cover | 2 | |
| 23 | 99-8056 | HINGE - cover (female) | 2 | |
| 24 | 99-8057 | HINGE - door (male) | 2 | |
| 55-3015 | SCREW - hinge | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT | 8 | ||
| 25 | 44-8696 | RESISTOR (0.2 ohm) | 1 | |
| 55-3021 | SCREW - resistor | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 26 | 44-9111 | RELAY - boost pump/heat | 1 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 27 | 55-2683 | SCREW - ground (3/8-16 x 1.25) | 1 | |
| 55-3471 | LOCKWASHER (internal tooth) | 2 | ||
| 55-3672 | LOCKWASHER (internal/external) | 1 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 55-2640 | NUT | 2 | ||
| 28 | 55-3000 | SCREW - ground (10-32 x 1.0) | 1 | |
| 55-2996 | LOCKWASHER (internal tooth) | 2 | ||
| 55-3496 | LOCKWASHER (internal/external) | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2965 | NUT | 2 |
