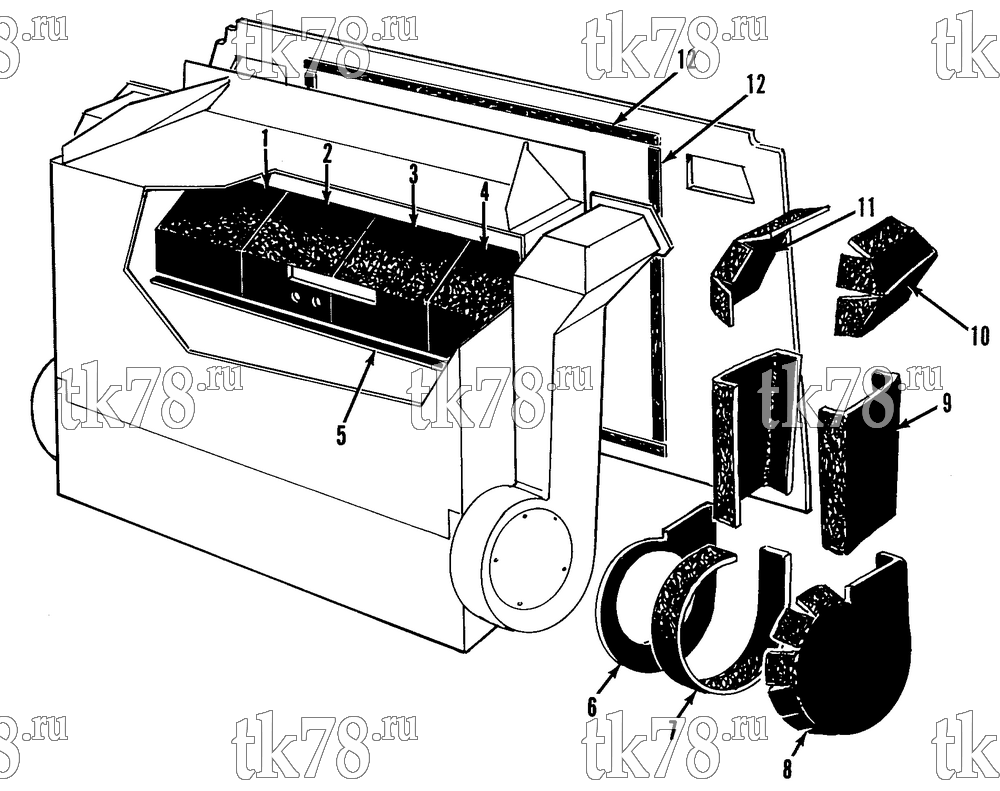

Установкa Thermo King TH3-M2 схема INSULATION – 67G12
Обновление от: 11/21/89
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-7853 | INSULATION - air return (roadside) | 1 | |
| 2 | 99-7851 | INSULATION - air return (roadside, center) | 1 | |
| 3 | 99-7850 | INSULATION - air return (curbside, center) | 1 | |
| 4 | 99-7852 | INSULATION - air return (curbside) | 1 | |
| 5 | 99-7925 | INSULATION - air barrier | 1 | |
| 6 | 99-7867 | INSULATION - inside housing (curbside) | 1 | |
| 99-7870 | INSULATION - inside housing (roadside) | 1 | ||
| 7 | 99-7866 | INSULATION - housing | 2 | |
| 8 | 99-7926 | INSULATION - outside housing (curbside) | 1 | |
| 99-7869 | INSULATION - outside housing (roadside) | 1 | ||
| 9 | 99-7924 | INSULATION - vertical duct | 4 | |
| 10 | 99-7841 | INSULATION - transition duct (inside, curbside) | 1 | |
| 99-7839 | INSULATION - transition duct (inside, roadside) | 1 | ||
| 11 | 99-7842 | INSULATION - transition duct (inside, curbside) | 1 | |
| 99-7840 | INSULATION - transition duct (inside, roadside) | 1 | ||
| 12 | 99-7849 | STRIP - sealing (frame to bulkhead, 25 ft) | A/R | |
| 13 | 99-7855 | STRIP - sealing (horizontal, frame to bulkhead, 25 ft) | A/R |
