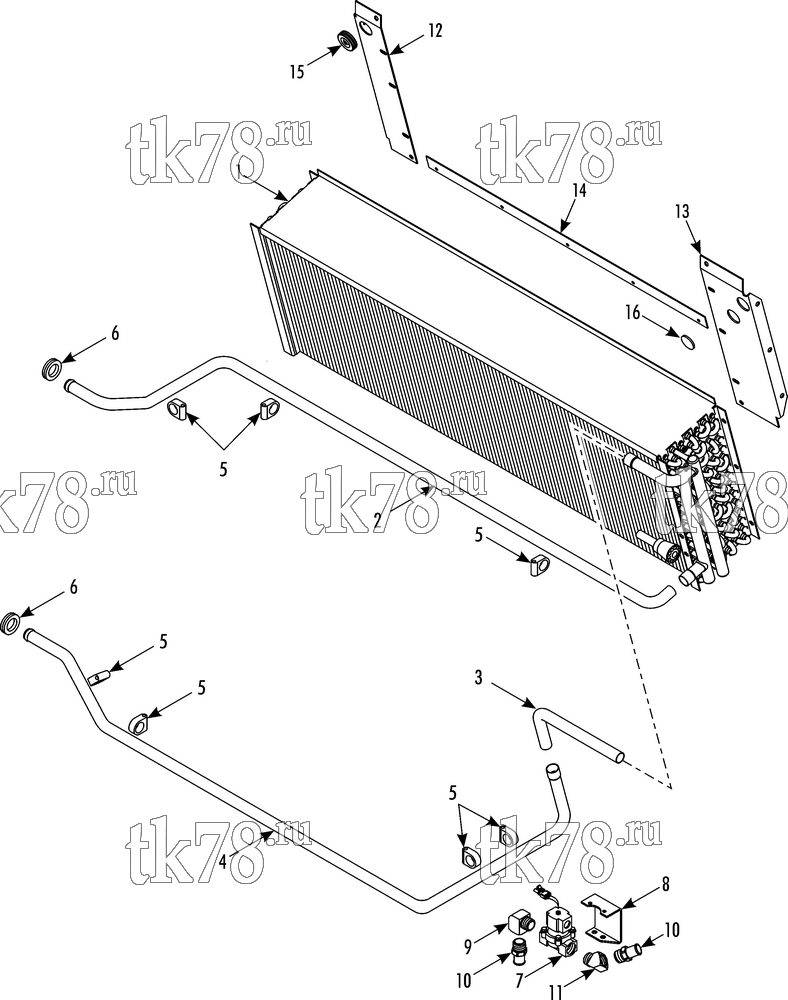

Установкa Thermo King TH14-M4 схема HEATER COMPONENTS (W/ REMOTE WATER VALVE) – 255F8
Обновление от: 10/26/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2643 | COIL - evaporator w/heat | 1 | |
| 2 | 61-5174 | TUBE - coolant, inlet | 1 | |
| 3 | 61-5583 | TUBE - coolant, coil to tube | 1 | |
| 4 | 61-5675 | TUBE - coolant, tube to outlet | 1 | |
| 5 | 55-7013 | CLAMP - tube (.875 id) | 7 | |
| 55-2979 | SCREW - clamp | 7 | ||
| 55-4953 | NUT | 7 | ||
| 6 | 33-507 | GROMMET (.875 id) | 2 | |
| 7 | 41-5610 | VALVE - solenoid (see 173F5) | 1 | |
| 8 | 92-9101 | BRACKET - valve | 1 | |
| 9 | 51-2126 | FITTING - elbow (90 deg) | 1 | |
| 10 | 51-2125 | FITTING - hose | 2 | |
| 11 | 51-2127 | FITTING - elbow (45 deg) | 1 | |
| 203-385 | SEALER - thread | A/R | ||
| 12 | 92-8464 | BRACKET - coil | 1 | |
| 13 | 92-8465 | BRACKET - coil | 1 | |
| 14 | 92-8466 | PLATE - cover | 1 | |
| 55-2957 | SCREW | 15 | ||
| 55-2086 | FLATWASHER | 15 | ||
| 55-1800 | LOCKWASHER | 15 | ||
| 15 | 33-2110 | GROMMET (1.0 id) | 1 | |
| 16 | 51-193 | PLUG - button | 1 |
