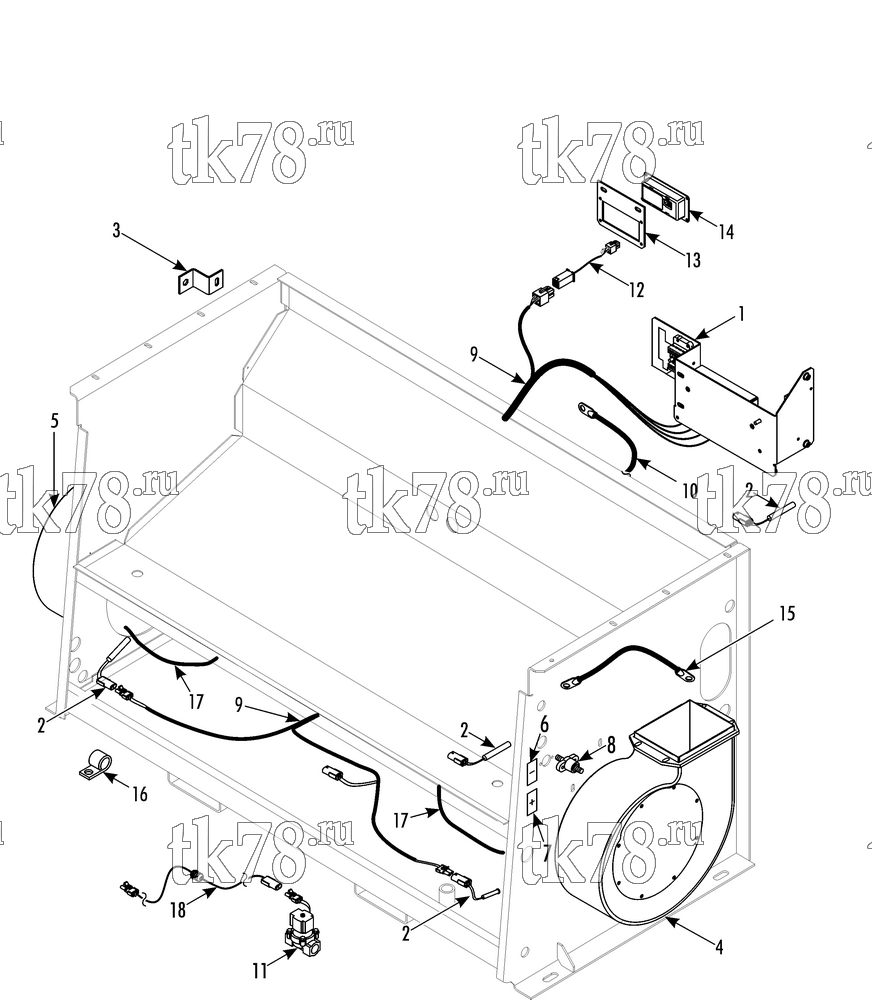

Установкa Thermo King TH14-M4 схема ELECTRICAL COMPONENTS – 255E9
Обновление от: 8/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | MODULE - IntelligAIRE III (see 255F0) | 1 | |
| 2 | 41-4157 | SENSOR - temperature | 4 | |
| 44-5835 | CONNECTOR - shroud (2-pin, see 115D14 for connectors) | 4 | ||
| 3 | 92-5407 | BRACKET - support | 1 | |
| 4 | 78-1772 | BLOWER - assembly (see 251A0) | 1 | |
| 5 | 78-1773 | BLOWER - assembly (see 251A0) | 1 | |
| 6 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 7 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 8 | 55-9551 | STUD - terminal (black) | 1 | |
| 55-9700 | SCREW - junction block | 2 | ||
| 9 | 42-270 | HARNESS - main, IntelligAIRE III (see 255E0) | 1 | |
| 10 | 41-4913 | CABLE - battery power | 1 | |
| 41-8267 | TERMINAL - lug (5/16, 1 awg) | 1 | ||
| 41-9479 | TERMINAL - lug (1/4, 1 awg) | 1 | ||
| 41-4817 | CONNECTOR - liquid tite | 1 | ||
| 11 | 41-5610 | VALVE - solenoid (see 173F5) | 1 | |
| 12 | 41-9432 | HARNESS - display, IntelligAIRE III (w/resistor) | 1 | |
| 13 | 92-8471 | BRACKET - controller (see 246A8) | 1 | |
| 14 | 45-2339 | CONTROLLER - IntelligAIRE III (see 246A8) | 1 | |
| 15 | 41-9475 | CABLE - chassis ground (ch) | 1 | |
| 41-9477 | TERMINAL - lug (3/8, 1 awg) | 1 | ||
| 41-9478 | TERMINAL - lug (1/2, 1 awg) | 1 | ||
| 41-9843 | CABLE - chassis ground (ch) | 1 | ||
| 41-9477 | TERMINAL - lug (3/8, 1 awg) | 2 | ||
| 16 | 51-147 | CLAMP (.437 dia) | 2 | |
| 55-9423 | CLAMP (.50 dia) | 1 | ||
| 51-178 | CLAMP (.625 dia) | 2 | ||
| 17 | 41-9844 | HARNESS - evaporator motors | 1 | |
| 41-9440 | CONNECTOR (7-pin) | 2 | ||
| 41-9441 | LOCK - secondary | 2 | ||
| 44-9689 | TERMINAL - female (10 ga) | 4 | ||
| 33-2418 | SEAL - cable (orange, 10 ga) | 4 | ||
| 41-8983 | PLUG - cavity | 6 | ||
| 18 | 41-9947 | HARNESS - coolant valve extension (see 115D14 for connectors) | 1 | |
| 51-2054 | CONNECTOR - harness grip | 1 |
