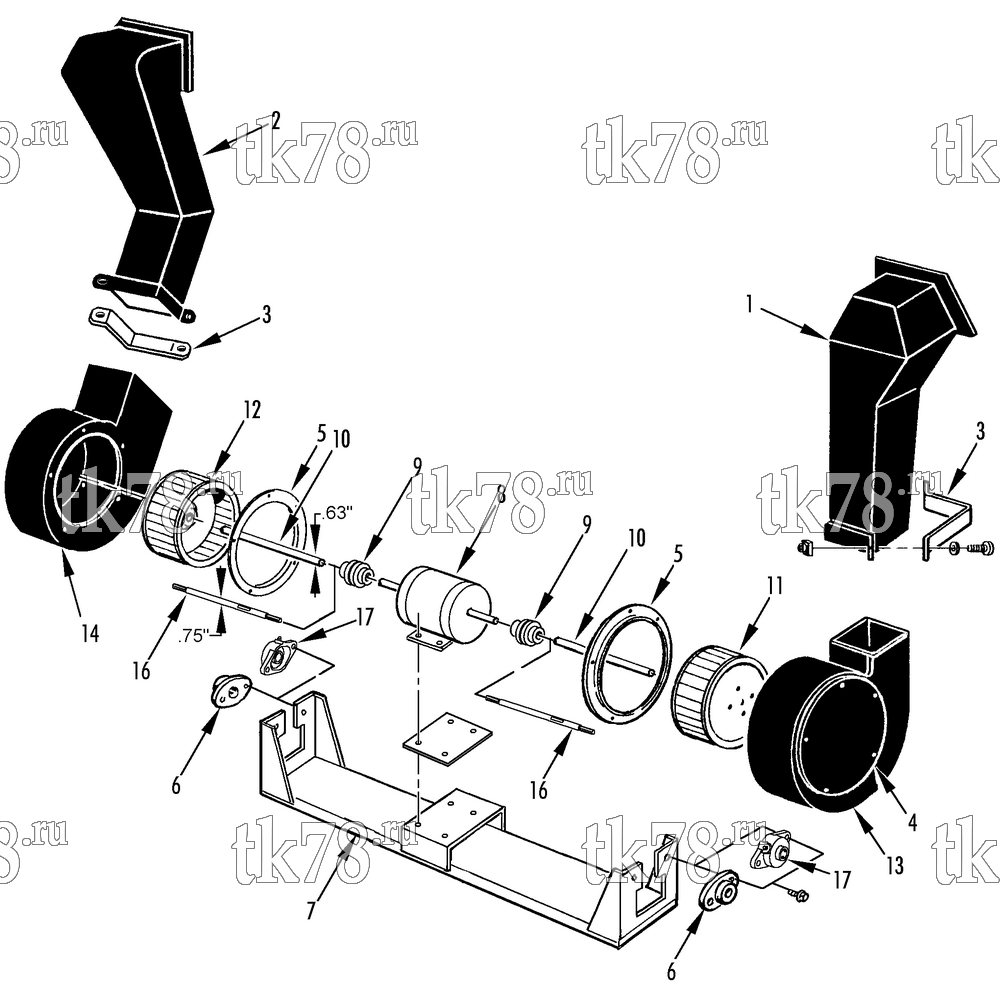

Установкa Thermo King TH11 Series M1 Thru M8 схема MOTOR & BLOWERS GROUP (M1 & M2) – 123F5
Обновление от: 5/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4532 | DUCT - curbside | 1 | |
| 33-2094 | GASKET - duct outlet (top) | 1 | ||
| 55-6526 | INSERT | 3 | ||
| 2 | 98-4669 | DUCT - roadside (M2, M3) | 1 | |
| 33-2027 | GASKET - duct outlet (top) | 1 | ||
| 55-6526 | INSERT | 3 | ||
| 3 | 91-5554 | CLAMP - duct (bottom) | 2 | |
| 55-2977 | SCREW - clamp | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4742 | WASHER - special | 4 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 4 | 99-9316 | PLATE - blower housing cover | 2 | |
| 5 | 77-1840 | RING - inlet | 2 | |
| 6 | 77-1807 | BEARING - flange (for shaft 77-1473, before 7/00) | 2 | |
| 55-3089 | SCREW - flange (5/16-18) | 4 | ||
| 55-7718 | FLATWASHER | 4 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-4954 | NUT | 4 | ||
| 7 | 98-4625 | TRAY - evaporator motor | 1 | |
| 55-2969 | SCREW - tray | 12 | ||
| 55-2958 | FLATWASHER | 12 | ||
| 55-2959 | LOCKWASHER | 12 | ||
| 305-1362 | INSERT - threaded | 12 | ||
| 8 | 104-461 | MOTOR - evaporator blower (G.E., see 77D12) | 1 | |
| 104-323 | MOTOR - evaporator blower | 1 | ||
| 55-3490 | SCREW - motor | 4 | ||
| 55-4727 | FLATWASHER | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 55-6713 | INSERT | 4 | ||
| 9 | 77-2589 | COUPLING - flexible | 2 | |
| 10 | 77-1473 | SHAFT - motor (0.63 dia, before 7/00) | 2 | |
| 11 | 77-2519 | WHEEL - blower (ccw, roadside) | 1 | |
| 12 | 77-2518 | WHEEL - blower (cw) | 1 | |
| 13 | 98-7383 | HOUSING - blower (curbside, incl 14) | 1 | |
| 55-3669 | RIVET - blind | 5 | ||
| 14 | 98-7382 | HOUSING - blower (roadside, incl 14) | 1 | |
| 55-3669 | RIVET - blind | 5 | ||
| 55-2979 | SCREW - housing | 2 | ||
| 55-4953 | LOCKNUT | 2 | ||
| 55-3031 | SCREW - housing | 10 | ||
| 55-2001 | FLATWASHER | 10 | ||
| 55-4560 | NUT (hexstop) | 10 | ||
| 55-2965 | NUT | 10 | ||
| 15 | 99-7780 | SPACER - motor mount (Ohio motor) | 1 | |
| 16 | 77-2665 | SHAFT - motor (0.75 dia, 7/00 & after) | 2 | |
| 17 | 77-2664 | BEARING - flange (for shaft 77-2588, 7/00 & after) | 2 | |
| 55-2341 | SCREW - bearing | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 55-4931 | WASHER - special | 4 | ||
| 55-4955 | NUT | 4 |
