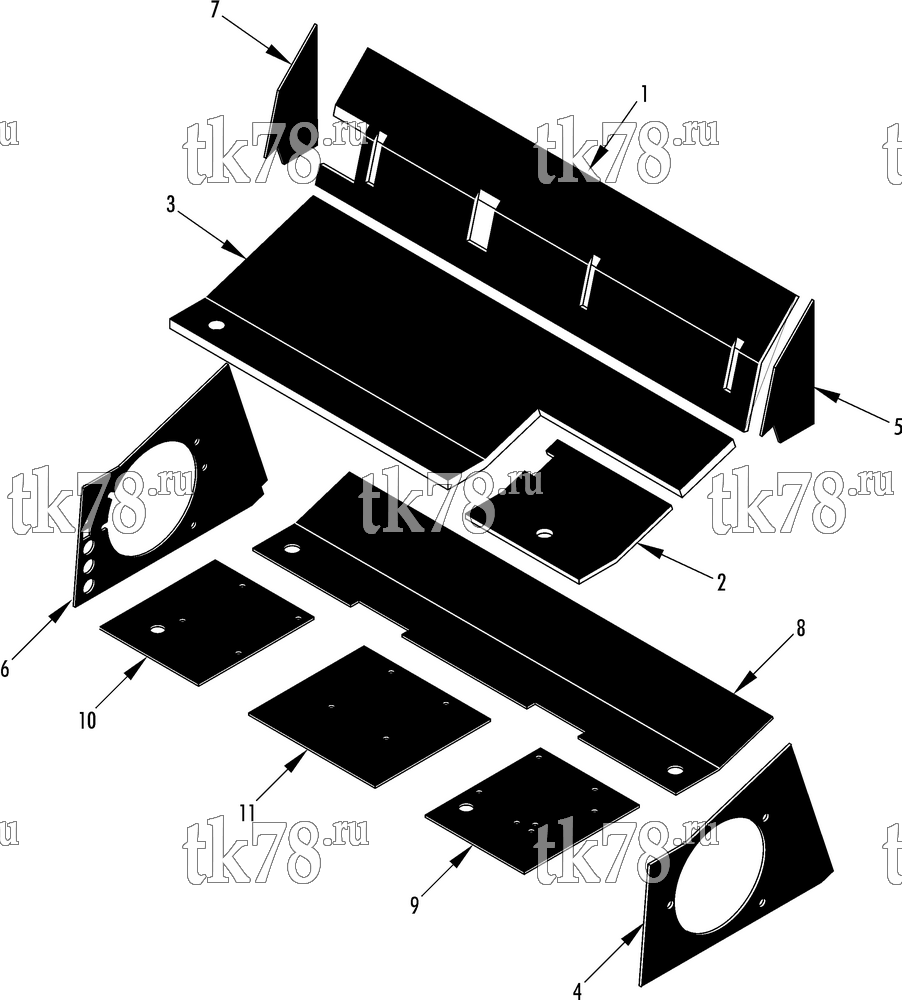

Установкa Thermo King TH11-M13 схема INSULATION GROUP (M13) – 242F7
Обновление от: 2/22/10
| № | TK # | Описание | Кол-во Цена |
|---|---|---|---|
| 1 | 91-5933 | INSULATION - blockoff panel (rear) | 1 |
| 2 | 91-5539 | INSULATION - blockoff panel (front) | 1 |
| 3 | 91-5538 | INSULATION - blockoff panel | 1 |
| 4 | 91-6251 | INSULATION (curbside) | 1 |
| 5 | 91-5530 | INSULATION - inside housing (curbside) | 1 |
| 6 | 92-4554 | INSULATION (roadside) | 1 |
| 7 | 91-5532 | INSULATION (roadside) | 1 |
| 8 | 91-5536 | INSULATION (front, bottom) | 1 |
| 9 | 91-5535 | INSULATION (bottom, curbside) | 1 |
| 10 | 91-5533 | INSULATION (bottom, roadside) | 1 |
| 11 | 91-5534 | INSULATION (bottom, center) | 1 |
