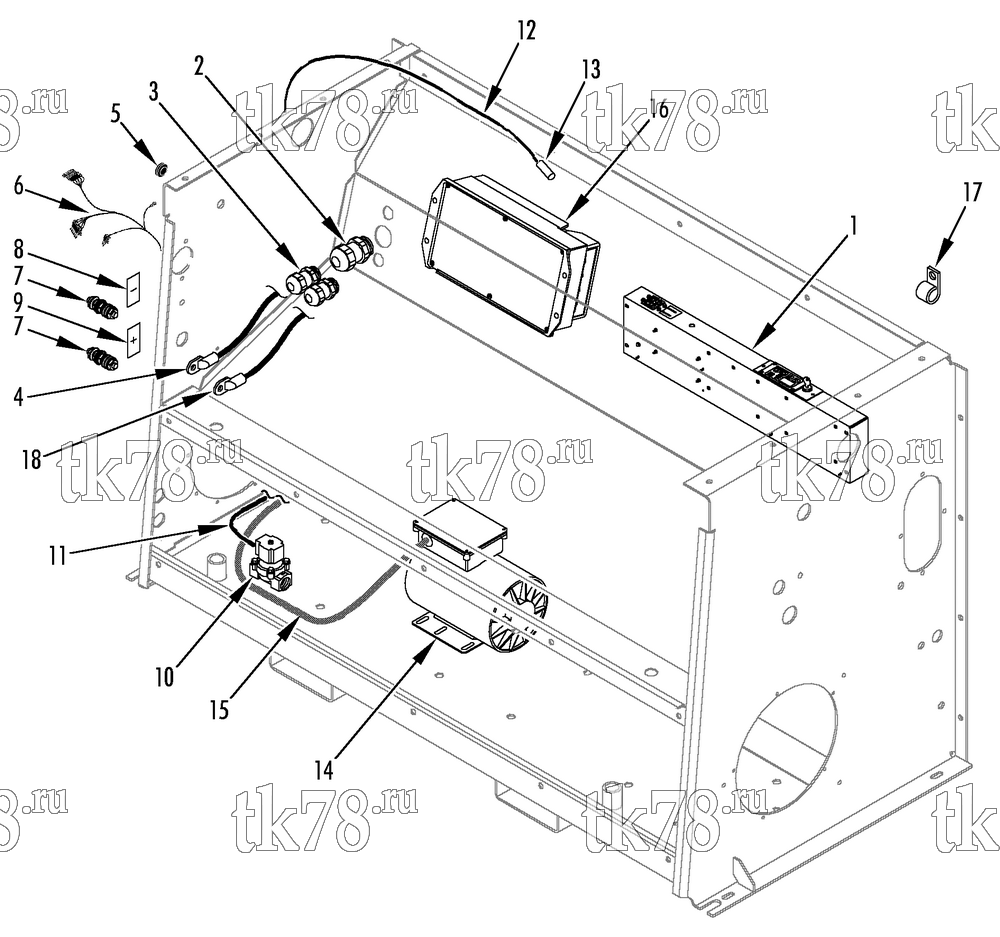

Установкa Thermo King TH11-M11 схема ELECTRICAL COMPONENTS – 212D7
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | PANEL - control (see 142A1) | 1 | |
| 2 | 55-5257 | CONNECTOR - liquid tite | 1 | |
| 3 | 55-5900 | CONNECTOR - liquid tite | 2 | |
| 4 | 41-4192 | HARNESS - power | 1 | |
| 41-5359 | WASHER - sealing | 1 | ||
| 55-2635 | LOCKNUT | 1 | ||
| 41-4817 | CONNECTOR - liquid tite | 1 | ||
| 5 | 55-547 | GROMMET (3/8 id, 1/8) | 1 | |
| 33-1692 | GROMMET (3/8 id, 3/16 groove) | 2 | ||
| 33-1815 | GROMMET (9/16 id, 3/16) | 1 | ||
| 33-316 | GROMMET (1 id, 3/16) | 1 | ||
| 6 | 41-6755 | HARNESS - control (see 204H3, for connector see 115D14) | 1 | |
| 7 | 55-3167 | STUD - terminal | 2 | |
| 55-671 | NUT | 8 | ||
| 55-448 | FLATWASHER | 8 | ||
| 55-3066 | LOCKWASHER | 4 | ||
| 55-3672 | LOCKWASHER | 1 | ||
| 8 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 9 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 10 | 41-7599 | VALVE - solenoid (water, 24V, see 205D1) | 1 | |
| 11 | 41-6756 | HARNESS - valve (for connectors see 115D14) | 1 | |
| 55-4396 | SCREW - harness | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-3014 | LOCKWASHER | 4 | ||
| 55-2999 | NUT - hex | 4 | ||
| 12 | 41-1246 | HARNESS - thermostat (ambient air, for connectors see 115D14) | 1 | |
| 13 | 40-975 | KIT - temperature sensor | 2 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 14 | 104-741 | MOTOR (20VAC, 3 phase, 1-7 hp) | 1 | |
| 15 | 41-2609 | HARNESS - motor/drive | 1 | |
| 16 | 41-3590 | DRIVE - motor upgrade | 1 | |
| 841-3590 | DRIVE - motor (reman) | 1 | ||
| 40-885 | KIT - power stud cleanup (see 187F2) | 1 | ||
| 55-2977 | SCREW - drive | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-3059 | NUT - captive | 4 | ||
| 17 | 55-547 | CLAMP (0.375 dia) | 3 | |
| 55-570 | CLAMP (0.625 dia) | 2 | ||
| 55-1203 | CLAMP (0.875 dia) | 4 | ||
| 55-6052 | CLAMP (1.00 dia) | 1 | ||
| 55-2991 | SCREW - clamp | 10 | ||
| 55-2001 | FLATWASHER | 11 | ||
| 55-2964 | LOCKWASHER | 10 | ||
| 55-6721 | INSERT | 9 | ||
| 55-4560 | NUT | 1 | ||
| 18 | 41-7201 | HARNESS - CH | 1 |
