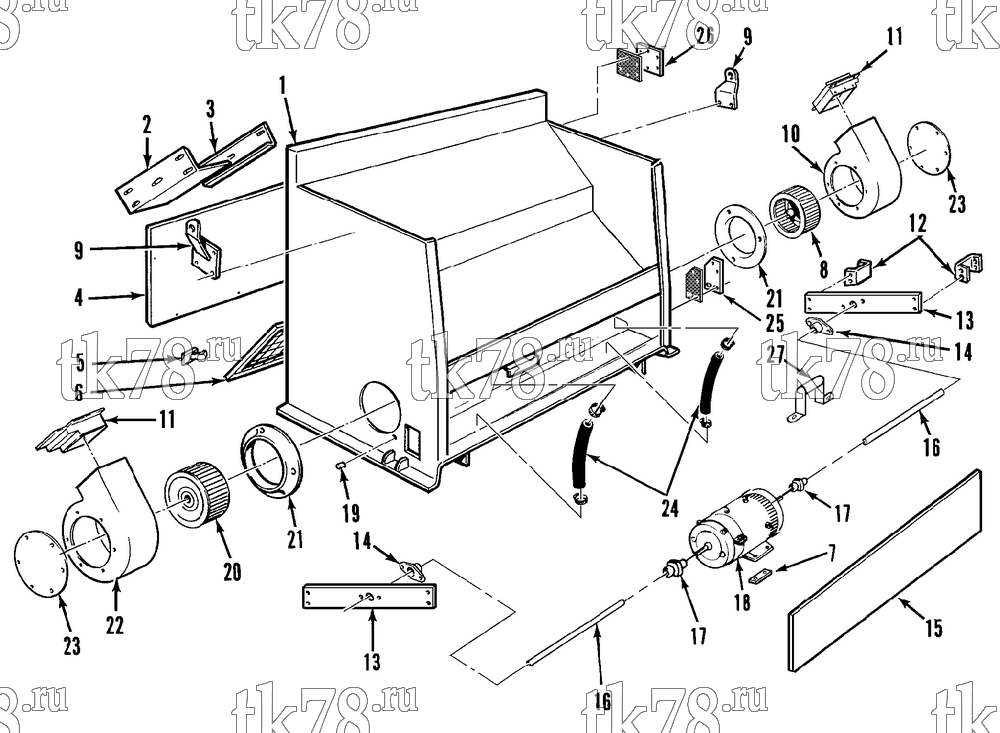

Установкa Thermo King TH1-M6, M7 схема STRUCTURAL - MOTORS & BLOWERS – 111F5
Обновление от: 1/17/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4343 | FRAME | 1 | |
| 55-3059 | NUT - captive (1/4-20, ss) | 35 | ||
| 55-4415 | NUT - captive (1/4-20, ss) | 6 | ||
| 55-7559 | PLUG - button (poly) | 3 | ||
| 2 | 91-4663 | BRACKET - coil (left) | 1 | |
| 3 | 98-2418 | BRACKET - coil (right) | 1 | |
| 55-2969 | SCREW - bracket | 6 | ||
| 55-4954 | NUT | 10 | ||
| 55-5720 | SCREW - socket head | 4 | ||
| 55-2958 | FLATWASHER | 20 | ||
| 4 | 98-2380 | PANEL - front | 1 | |
| 55-1587 | SCREW - panel | 11 | ||
| 99-5966 | STRIP - gasket (panel, 25 ft) | A/R | ||
| 55-2086 | FLATWASHER | 11 | ||
| 55-1800 | LOCKWASHER | 11 | ||
| 99-2789 | NAMEPLATE - TK Logo | 1 | ||
| 5 | 55-4422 | FASTENER - snap (filter) | 2 | |
| 55-5130 | RIVET - fastener | 2 | ||
| 6 | 91-6299 | FILTER - air | 1 | |
| 7 | 99-6871 | NUTSTRIP - motor | 2 | |
| 55-3035 | RIVET - strip | 4 | ||
| 8 | 77-2518 | WHEEL - blower (cw, curbside) | 1 | |
| 9 | 99-8564 | PLATE - lifting | 2 | |
| 55-3048 | SCREW - bracket | 4 | ||
| 55-2363 | LOCKWASHER | 4 | ||
| 55-2641 | FLATWASHER | 8 | ||
| 55-4955 | NUT | 4 | ||
| 10 | 98-3609 | HOUSING - blower (curbside) | 1 | |
| 91-358 | INSULATOR - housing (inside) | 1 | ||
| 91-359 | INSULATOR - housing (outside) | 1 | ||
| 91-360 | INSULATOR - housing (peripheral) | 1 | ||
| 55-3121 | SCREW - housing | 3 | ||
| 55-4953 | NUT | 3 | ||
| 11 | 98-2541 | ADAPTER - air outlet | 1 | |
| 55-3588 | RIVET - adapter | 12 | ||
| 12 | 91-4243 | CHANNEL - standoff | 4 | |
| 55-2977 | SCREW - channel | 8 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-4953 | NUT | 8 | ||
| 13 | 91-4664 | PLATE - bearing | 2 | |
| 55-2977 | SCREW - plate | 8 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-4953 | NUT | 8 | ||
| 14 | 77-1807 | BEARING - flange | 2 | |
| 55-2961 | SCREW - bearing | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 55-4955 | NUT | 4 | ||
| 55-4931 | WASHER - special | 4 | ||
| 15 | 98-2674 | PANEL - rear access | 1 | |
| 99-7779 | INSULATOR - panel (rear) | 1 | ||
| 99-5966 | STRIP - gasket (horizontal, 50 ft) | A/R | ||
| 99-7336 | STRIP - neoprene (0.12 x 0.8 x 50 ft) | A/R | ||
| 55-1587 | SCREW - panel | 10 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 16 | 77-1511 | SHAFT - blower | 2 | |
| 17 | 77-2589 | COUPLING - flexible | 2 | |
| 18 | 104-461 | MOTOR - evaporator blower (G.E., see 77D12, TH1 M7) | 1 | |
| 104-323 | MOTOR - evaporator blower (Ohio, see 76C1, TH1 M6) | 1 | ||
| 99-7780 | SPACER - motor mount (0.10 thk, Ohio motor) | 1 | ||
| 99-9084 | NAMEPLATE - arrow | 1 | ||
| 55-3490 | SCREW - motor | 4 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 19 | 99-6872 | SPACER - blower housing | 6 | |
| 20 | 77-2519 | WHEEL - blower (ccw, roadside) | 1 | |
| 21 | 77-1843 | RING - inlet | 2 | |
| 55-5130 | RIVET - ring | 10 | ||
| 22 | 98-3379 | HOUSING - blower (roadside) | 1 | |
| 91-363 | INSULATOR - housing (inside) | 1 | ||
| 91-364 | INSULATOR - housing (outside) | 1 | ||
| 91-360 | INSULATOR - housing (peripheral) | 1 | ||
| 55-3121 | SCREW - housing | 3 | ||
| 55-4953 | NUT | 3 | ||
| 23 | 99-9316 | PLATE - blower housing cover | 2 | |
| 91-365 | INSULATOR - cover | 2 | ||
| 55-3049 | SCREW - cover | 16 | ||
| 24 | 11-7524 | HOSE - drain (25 ft) | A/R | |
| 55-2684 | CLAMP - hose | 4 | ||
| 25 | 99-4826 | BASE - cover | 2 | |
| 33-2432 | GASKET - cover | 2 | ||
| 55-1587 | SCREW - cover | 8 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-4953 | NUT (hexstop) | 4 | ||
| 26 | 99-4877 | COVER - junction box | 1 | |
| 33-2433 | GASKET - cover | 1 | ||
| 55-3555 | SCREW - cover | 6 | ||
| 55-7562 | PLUG - button (nylon) | 1 | ||
| 55-5694 | PLUG - button (steel) | 1 | ||
| 55-7563 | PLUG - button (steel) | 1 | ||
| 27 | 44-6348 | RESISTOR - motor (Ohio, TH1 M6) | 1 |
