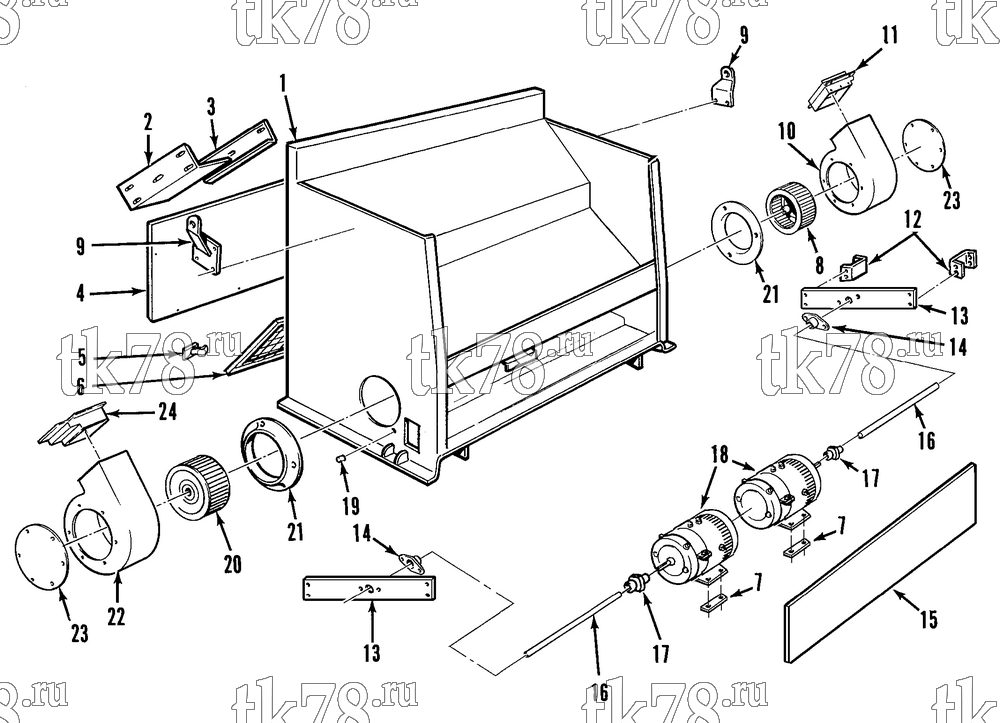

Установкa Thermo King TH1-M3, M4, M5 схема STRUCTURAL - MOTORS & BLOWERS (TH1 M5) – 94E7
Обновление от: 10/23/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3832 | FRAME - assembly | 1 | |
| 55-3059 | NUT - captive (1/4-20, ss) | 35 | ||
| 55-4415 | NUT - captive (1/4-20, ss) | 6 | ||
| 2 | 98-2417 | BRACKET - coil (left) | 1 | |
| 3 | 98-2418 | BRACKET - coil (right) | 1 | |
| 55-3048 | SCREW - bracket | 10 | ||
| 55-4955 | LOCKNUT | 10 | ||
| 4 | 98-2380 | PANEL - front | 1 | |
| 55-1587 | SCREW - panel | 11 | ||
| 99-5966 | STRIP - gasket (panel, 25 ft) | A/R | ||
| 99-2789 | NAMEPLATE - TK Logo | 1 | ||
| 5 | 55-4422 | FASTENER - snap (filter) | 2 | |
| 55-2995 | SCREW - fastener | 2 | ||
| 55-4508 | LOCKNUT | 2 | ||
| 6 | 91-6299 | FILTER - air | 1 | |
| 99-1908 | STRIP - gasket (50 ft) | A/R | ||
| 7 | 99-6871 | NUTSTRIP - motor | 4 | |
| 55-3035 | RIVET - strip | 4 | ||
| 8 | 77-2518 | WHEEL - blower (cw, curbside) | 1 | |
| 9 | 99-7773 | BRACKET - lifting | 2 | |
| 55-3048 | SCREW - bracket | 4 | ||
| 55-2363 | LOCKWASHER | 4 | ||
| 55-2641 | FLATWASHER | 8 | ||
| 55-4955 | LOCKNUT | 4 | ||
| 10 | 98-3378 | HOUSING - blower (right) | 1 | |
| 91-358 | INSULATOR - housing (inside) | 1 | ||
| 91-359 | INSULATOR - housing (outside) | 1 | ||
| 91-360 | INSULATOR - housing (peripheral) | 1 | ||
| 11 | 98-2541 | ADAPTER - air outlet | 1 | |
| 55-3035 | RIVET - adapter | 4 | ||
| 55-3121 | SCREW - housing | 3 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4953 | LOCKNUT | 3 | ||
| 12 | 91-4243 | CHANNEL - standoff (bearing plate) | 4 | |
| 55-2977 | SCREW - channel | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | LOCKNUT | 8 | ||
| 13 | 91-362 | PLATE - bearing | 2 | |
| 55-2977 | SCREW - plate | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | LOCKNUT | 8 | ||
| 14 | 77-1807 | BEARING - flange | 2 | |
| 55-2683 | SCREW - bearing | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 55-4955 | NUT | 4 | ||
| 15 | 98-2674 | PANEL - rear access | 1 | |
| 99-7779 | INSULATOR - panel | 1 | ||
| 99-5966 | STRIP - gasket (horizontal, 50 ft) | A/R | ||
| 99-7336 | STRIP - neoprene (0.12 x 0.8 x 50 ft) | A/R | ||
| 55-1587 | SCREW - panel | 11 | ||
| 55-2086 | FLATWASHER | 11 | ||
| 16 | 77-1982 | SHAFT - blower | 2 | |
| 17 | 77-2589 | COUPLING - flexible | 2 | |
| 18 | 104-490 | MOTOR - blower | 2 | |
| 44-4435 | BRUSH (set) | 1 | ||
| 77-1498 | BEARING (shaft end) | 1 | ||
| 77-1661 | BEARING (opposite shaft end) | 1 | ||
| 99-9084 | NAMEPLATE - arrow | 1 | ||
| 55-2969 | SCREW - motor | 8 | ||
| 55-4727 | WASHER - special | 8 | ||
| 55-2959 | LOCKWASHER | 8 | ||
| 19 | 99-6872 | SPACER - blower housing | 6 | |
| 20 | 77-2519 | WHEEL - blower (ccw, roadside) | 1 | |
| 21 | 77-1843 | RING - inlet | 2 | |
| 55-5130 | RIVET - ring | 10 | ||
| 22 | 98-3379 | HOUSING - blower (left) | 1 | |
| 91-363 | INSULATOR - housing (inside) | 1 | ||
| 91-364 | INSULATOR - housing (outside) | 1 | ||
| 91-360 | INSULATOR - housing (peripheral) | 1 | ||
| 55-2979 | SCREW - housing | 3 | ||
| 55-4953 | LOCKNUT | 3 | ||
| 23 | 99-9316 | PLATE - blower housing cover | 2 | |
| 99-6876 | INSULATOR - cover | 2 | ||
| 55-4339 | SCREW - cover | 10 | ||
| 24 | 98-2541 | ADAPTER - air outlet | 1 | |
| 55-3035 | RIVET - adapter | 4 |
