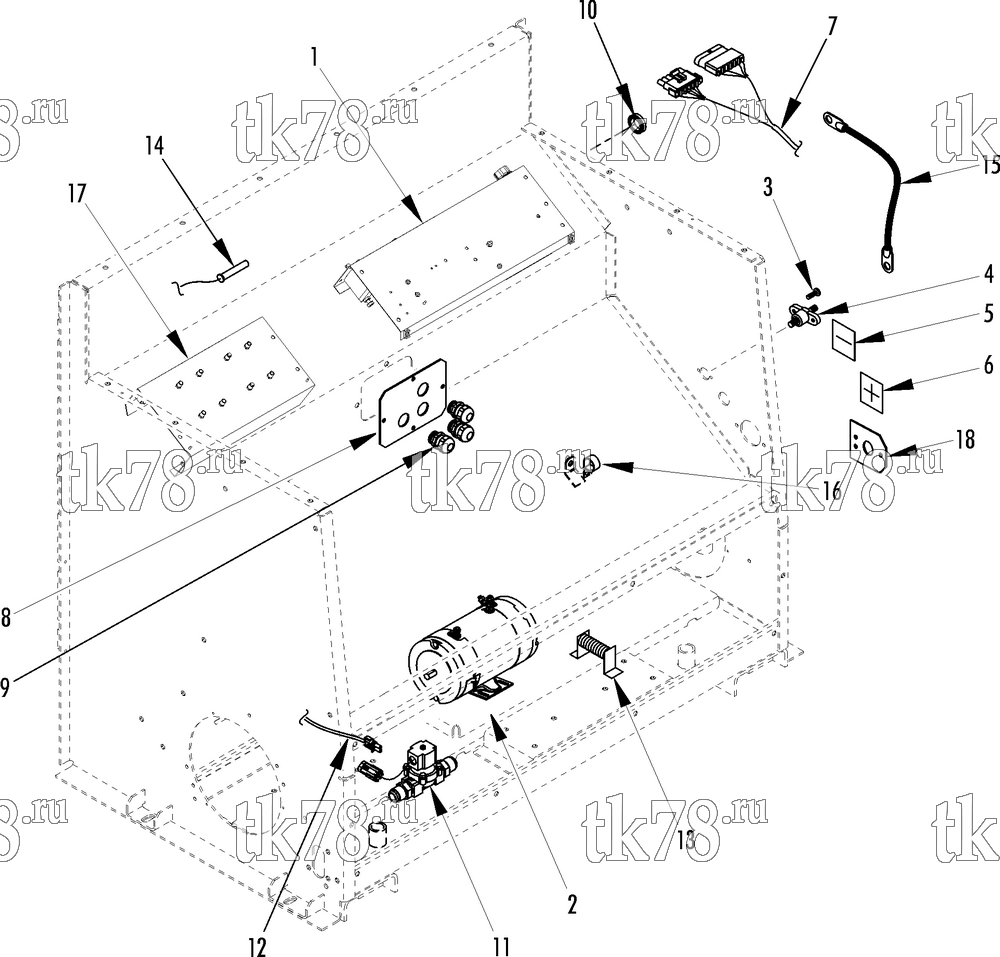

Установкa Thermo King TH1-M16 схема ELECTRICAL COMPONENTS – 226H4
Обновление от: 4/14/08
| № | TK # | Описание | Кол-во Цена |
|---|---|---|---|
| 1 | NSS | PANEL - control (see 208G5) | 1 |
| 2 | 104-651 | MOTOR - evaporator (see 153G5) | 1 |
| 3 | 55-9551 | STUD - terminal (black) | 1 |
| 4 | 55-9700 | SCREW - stud | 2 |
| 55-2001 | FLATWASHER | 4 | |
| 55-4560 | NUT | 2 | |
| 55-671 | NUT | 2 | |
| 55-448 | FLATWASHER | 4 | |
| 55-3066 | LOCKWASHER | 2 | |
| 5 | 99-4661 | NAMEPLATE - Negative | 1 |
| 6 | 99-4660 | NAMEPLATE - Positive | 1 |
| 7 | 41-6951 | HARNESS - control (for connectors see 115D14) | 1 |
| 8 | 91-5190 | PLATE - connector | 1 |
| 55-2957 | SCREW - plate | 2 | |
| 55-1800 | LOCKWASHER | 2 | |
| 55-2086 | FLATWASHER | 2 | |
| 9 | 41-4817 | CONNECTOR - liquid tite | 2 |
| 41-5359 | CONNECTOR - liquid tite | 1 | |
| 41-6950 | CONNECTOR - liquid tite | 2 | |
| 55-2635 | NUT - lock (3/4) | 4 | |
| 33-1815 | GROMMET (9/16 id, 1/8 groove) | 1 | |
| 10 | 33-316 | GROMMET (1.0 id, 3/16 groove) | 1 |
| 11 | 44-7591 | VALVE & CONNECTOR - water (for connectors see 115D14) | 1 |
| 41-7599 | VALVE - solenoid (water, 24V, see 208G3) | 1 | |
| 12 | 41-425 | HARNESS - valve (for connectors see 115D14) | 1 |
| 13 | 44-6348 | RESISTOR - motor | 1 |
| 55-2977 | SCREW - resistor | 2 | |
| 55-2086 | FLATWASHER | 2 | |
| 55-4953 | NUT | 2 | |
| 14 | 40-975 | KIT - temperature sensor | 1 |
| 40-975 OEM | Датчик температуры к-т, некалиброванный | 11 340 ₽ |
| 10-40-975 | Датчик температуры к-т, некалиброванный | 5 120 ₽ |
| 41-5210 | COLLAR - crimp | 2 | |
| 92-846 | HEATSHRINK (1/2 in) | 2 | |
| 15 | 41-4913 | HARNESS (2) | 1 |
| 41-4817 | CONNECTOR - liquid tite | 1 | |
| 41-5359 | CONNECTOR - liquid tite | 1 | |
| 41-5437 | HARNESS - cable | 1 | |
| 55-3834 | SCREW - harness | 1 | |
| 55-2958 | FLATWASHER | 1 | |
| 55-4954 | NUT | 1 | |
| 41-8185 | HARNESS - J (7.0 in lg) | 1 | |
| 41-6731 | HARNESS - single wire (34A, 90 in) | 1 | |
| 41-8186 | HARNESS - single wire (34B, 5 in) | 1 | |
| 16 | 55-2239 | CLAMP (0.375 dia) | 1 |
| 51-151 | CLAMP (0.562 dia) | 2 | |
| 55-2991 | SCREW - clamp | 2 | |
| 55-2964 | LOCKWASHER | 2 | |
| 55-9311 | CLAMP (1.000 dia) | 6 | |
| 55-1587 | SCREW - clamp | 6 | |
| 55-1800 | LOCKWASHER | 6 | |
| 55-2086 | FLATWASHER | 6 | |
| 17 | 91-8062 | PANEL - solenoid (see 208G8) | 1 |
| 18 | 92-6935 | BRACKET - electric | 1 |
| 55-2957 | SCREW - bracket | 2 | |
| 55-2086 | FLATWASHER | 4 | |
| 55-4953 | NUT | 2 |
