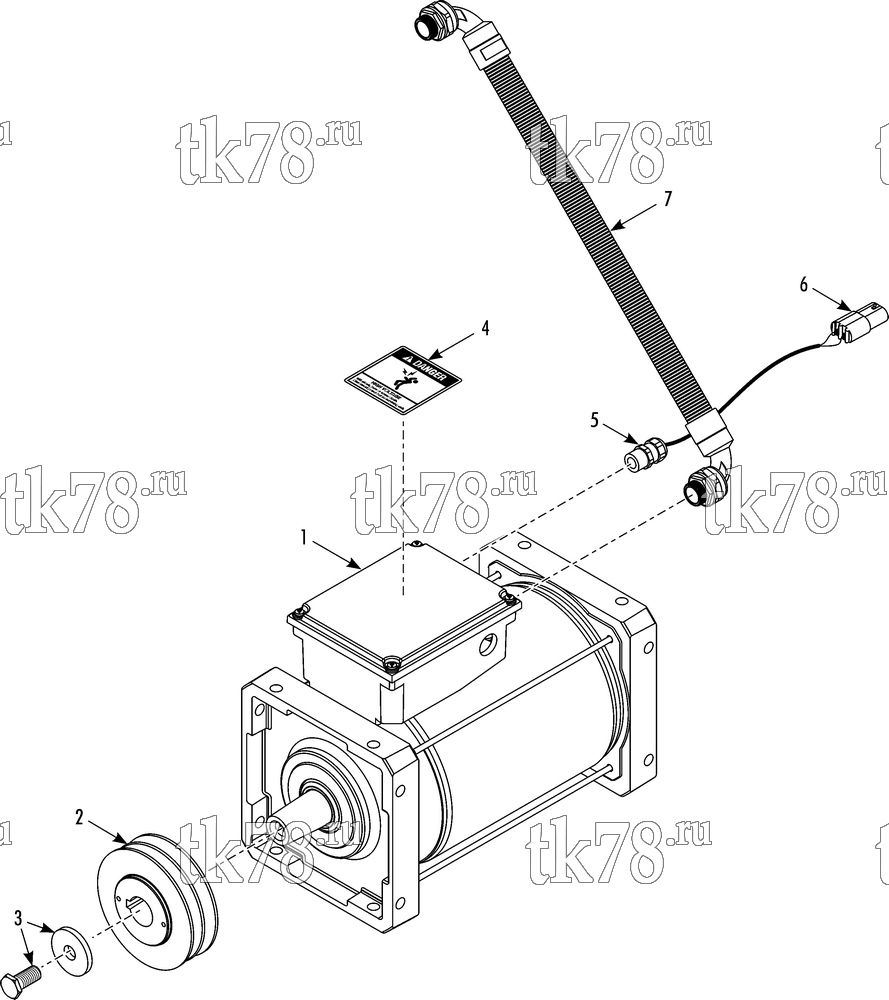

Установкa Thermo King TEA15-M1 схема ALTERNATOR (800684) – 262G7
Обновление от: 7/9/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-795 | ALTERNATOR | 1 | |
| 2 | 77-3076 | PULLEY - alternator (5.50 pitch diameter) | 1 | |
| 77-3113 | PULLEY - alternator (6.0 pitch diameter) | 1 | ||
| 3 | 55-9873 | SCREW - pulley | 1 | |
| 3 | 77-3012 | WASHER - pulley | 1 | |
| 4 | 92-4092 | NAMEPLATE - Danger High Voltage | 1 | |
| 5 | 51-2054 | CONNECTOR - harness grip | 1 | |
| 33-4410 | WASHER - sealing | 1 | ||
| 55-2836 | NUT | 1 | ||
| 6 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 44-5885 | SEAL - cable (green, 18-22 ga) | 2 | ||
| 44-5883 | TERMINAL - male (20-18 ga) | 2 | ||
| 7 | 42-738 | HARNESS - alternator to disconnect box | 1 | |
| 41-8853 | TERMINAL - lug (#10, 6 awg) | 4 | ||
| 41-9480 | TERMINAL - lug (1/4, 6 awg) | 1 | ||
| 41-9797 | TERMINAL - lug (5/16, 6 awg) | 3 |
