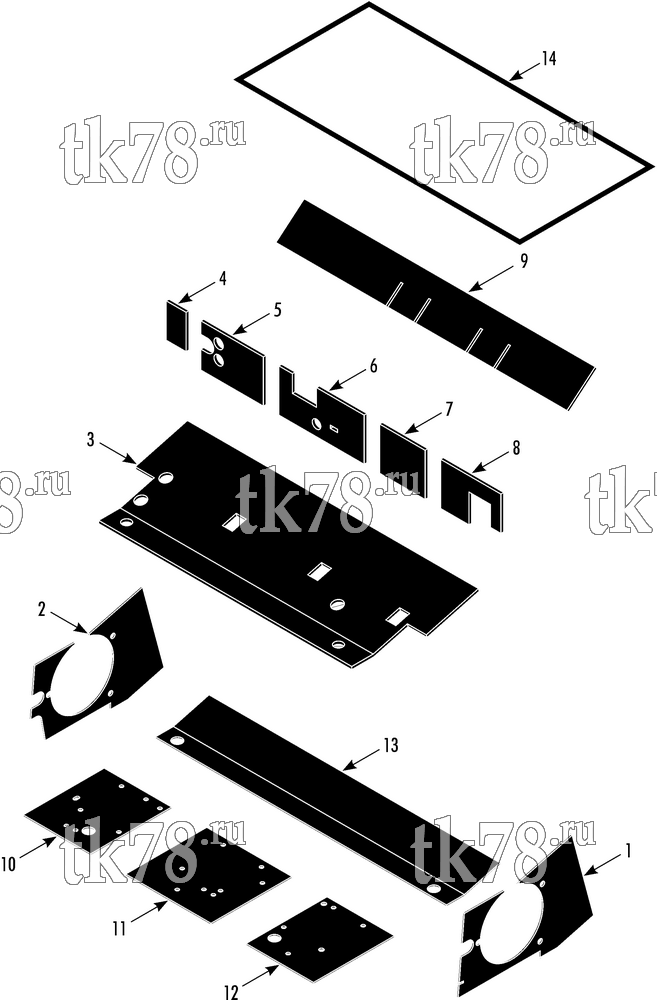

Установкa Thermo King TEA15-M1 схема INSULATION – 262G6
Обновление от: 8/31/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-5027 | INSULATION - evaporator panel (curbside) | 1 | |
| 2 | 33-5028 | INSULATION - evaporator panel (roadside) | 1 | |
| 3 | 33-5029 | INSULATION - evaporator panel (top) | 1 | |
| 4 | 33-5030 | INSULATION - panel back | 1 | |
| 5 | 33-5032 | INSULATION - panel back | 1 | |
| 6 | 33-5031 | INSULATION - panel back (center) | 1 | |
| 7 | 33-4864 | INSULATION - panel back | 1 | |
| 8 | 33-5033 | INSULATION - panel back | 1 | |
| 9 | 33-4863 | INSULATION - panel back (top) | 1 | |
| 10 | 33-4859 | INSULATION - bottom | 1 | |
| 11 | 33-4858 | INSULATION - bottom (center) | 1 | |
| 12 | 33-4857 | INSULATION - bottom | 1 | |
| 13 | 33-4860 | INSULATION - bottom (back) | 1 | |
| 14 | 99-6968 | STRIP - neoprene (50 ft cut to length) | A/R |
