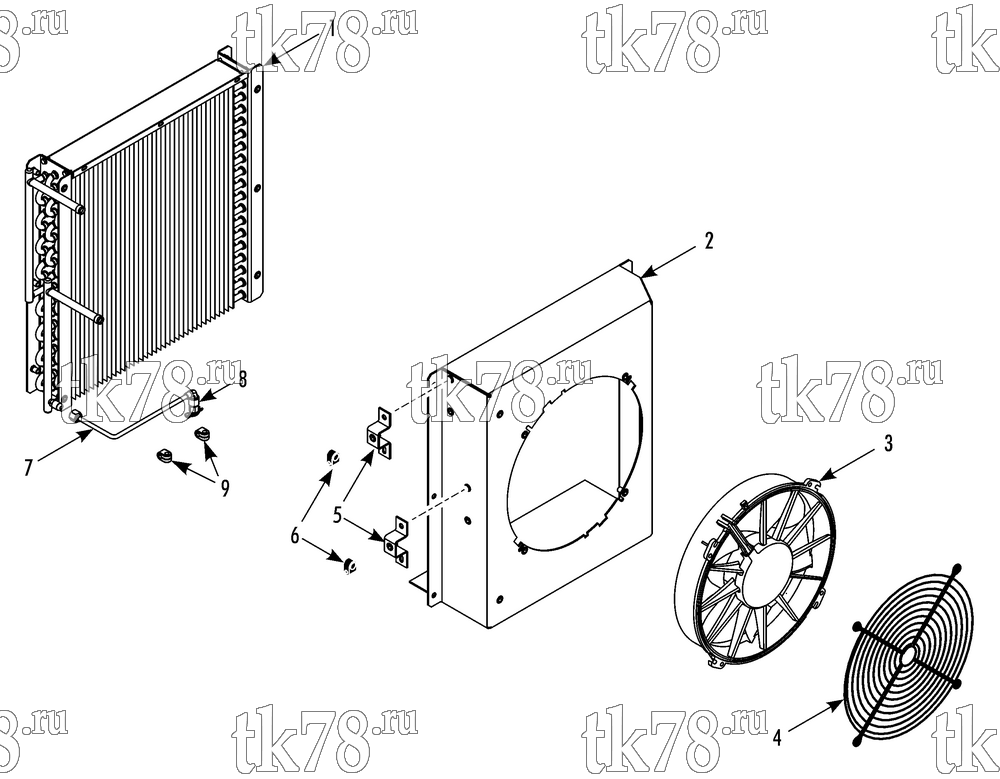

Установкa Thermo King TEA15-M1 схема RADIATOR – 262G4
Обновление от: 9/12/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2780 | COIL - radiator | 1 | |
| 55-2991 | SCREW - radiator | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-8798 | INSERT | 3 | ||
| 2 | 98-8610 | PANEL - orifice | 1 | |
| 55-2957 | SCREW - panel | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 3 | 78-1460 | FAN - radiator (24V) | 1 | |
| 4 | 98-5425 | GUARD - fan | 1 | |
| 55-2979 | SCREW - guard | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4727 | WASHER - special | 4 | ||
| 5 | 92-8736 | BRACKET - clamp | 2 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 6 | 55-6389 | CLAMP - tube | 2 | |
| 55-3675 | SCREW - clamp | 2 | ||
| 7 | 61-6270 | TUBE - drain | 1 | |
| 55-303 | NUT - tube | 1 | ||
| 55-7474 | ELBOW - tube | 1 | ||
| 8 | 55-5128 | COCK DRAIN | 1 | |
| 203-392 | SEALER - antiseize | A/R | ||
| 9 | 55-6544 | CLAMP - tube, drain | 2 | |
| 55-2979 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 |
