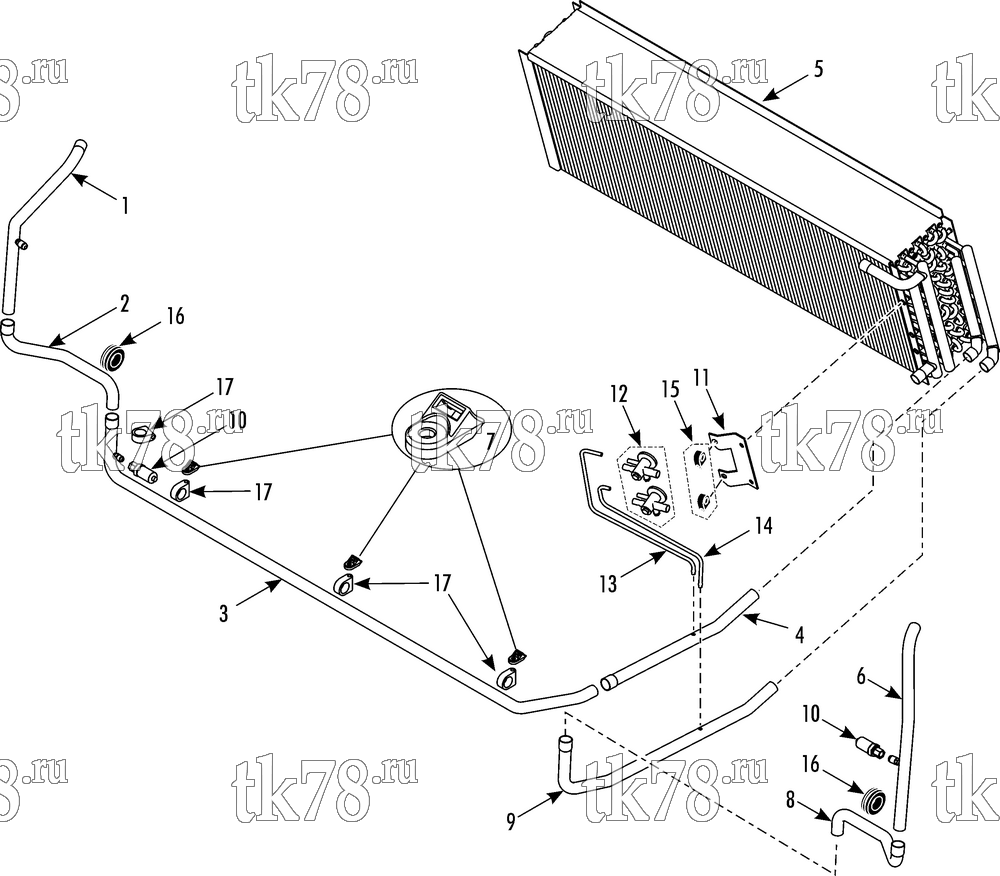

Установкa Thermo King TEA15-M1 схема REFRIGERATION EVAPORATOR – 262F4
Обновление от: 7/9/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-6254 | TUBE - suction, compressor to tube (#1) | 1 | |
| 2 | 61-6249 | TUBE - suction, tube to tube (#1) | 1 | |
| 3 | 61-6256 | TUBE - suction, tube to tube (#1) | 1 | |
| 4 | 61-6251 | TUBE - suction, tube to evap (#1) | 1 | |
| 5 | 67-2553 | COIL - evaporator (see heater components) | 1 | |
| 6 | 61-6253 | TUBE - suction, compressor to tube (#2) | 1 | |
| 66-9842 | VALVE | 1 | ||
| 7 | 51-2038 | MOUNT - brand wrap | 3 | |
| 8 | 61-6250 | TUBE - suction, tube to tube (#2) | 1 | |
| 9 | 61-6255 | TUBE - suction, tube to evap (#2) | 1 | |
| 10 | 41-9044 | TRANSDUCER - suction | 2 | |
| 11 | 92-8729 | BRACKET - distributor support | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 12 | 61-4179 | VALVE - expansion | 2 | |
| 13 | 61-6267 | TUBE - equalizer (#1) | 1 | |
| 14 | 61-6266 | TUBE - equalizer (#2) | 1 | |
| 15 | 91-759 | CLAMP - tube (.50 dia) | 5 | |
| 55-3675 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 16 | 33-507 | GROMMET (7/8 id) | 2 | |
| 17 | 55-7013 | CLAMP - tube (.875 dia) | 4 | |
| 55-3095 | SCREW - clamp | 4 | ||
| 55-1800 | LOCKWASHER | 4 |
