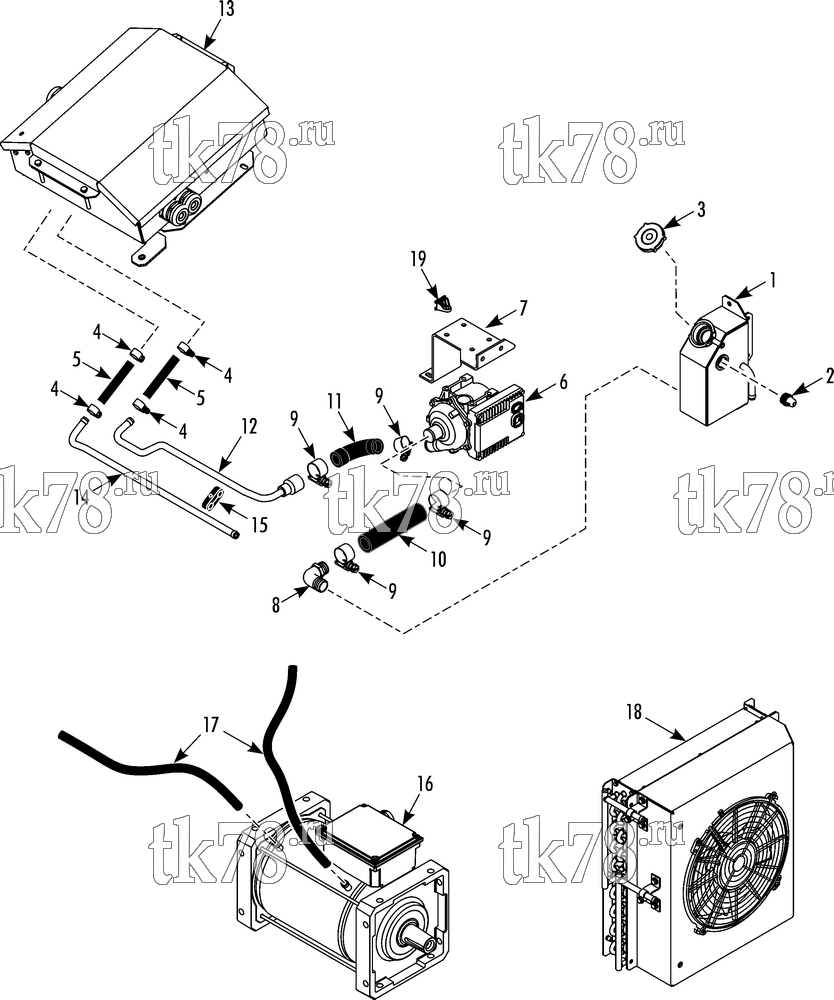

Установкa Thermo King TEA14-M6 схема COOLANT BOOST PUMP CIRCUIT – 260A4
Обновление от: 4/24/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-1236 | TANK - radiator | 1 | |
| 2 | 13-1116 | SIGHTGLASS | 1 | |
| 55-2991 | SCREW - tank | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-8798 | INSERT | 4 | ||
| 3 | 11-9242 | CAP - coolant tank | 1 | |
|
10-11-9242 | Крышка радиатора 10 LBS | 2 370 ₽ |
|
| 4 | 55-6726 | CLAMP - hose | 8 | |
| 5 | 13-1117 | HOSE - coolant (1/2 x 15.5 in long cut to length) | A/R | |
| 6 | 13-1235 | PUMP - coolant, boost | 1 | |
| 55-6993 | SCREW - pump | 4 | ||
| 55-6988 | FLATWASHER | 4 | ||
| 55-7066 | LOCKWASHER | 4 | ||
| 7 | 92-9743 | BRACKET - pump mounting | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 8 | 55-8127 | ADAPTER - hose | 1 | |
| 9 | 55-3401 | CLAMP - hose | 4 | |
| 10 | 13-1237 | HOSE - tube to pump | 1 | |
| 11 | 11-4177 | HOSE - tank to pump | 1 | |
| 12 | 13-1238 | TUBE - coolant, inlet | 1 | |
| 13 | 45-2360 | INVERTER - control box (see 260A2) | 1 | |
| 14 | 61-5391 | TUBE - coolant, outlet | 1 | |
| 15 | 91-445 | CLAMP - tube | 2 | |
| 55-4811 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 16 | 104-795 | ALTERNATOR (see 258H6 & 260A1) | 1 | |
| 17 | NSS | HOSE - coolant (not supplied by Thermo King) | A/R | |
| 18 | NSS | RADIATOR (see 249B3) | 1 | |
| 19 | 51-2275 | MOUNT - bandwrap | 1 |
