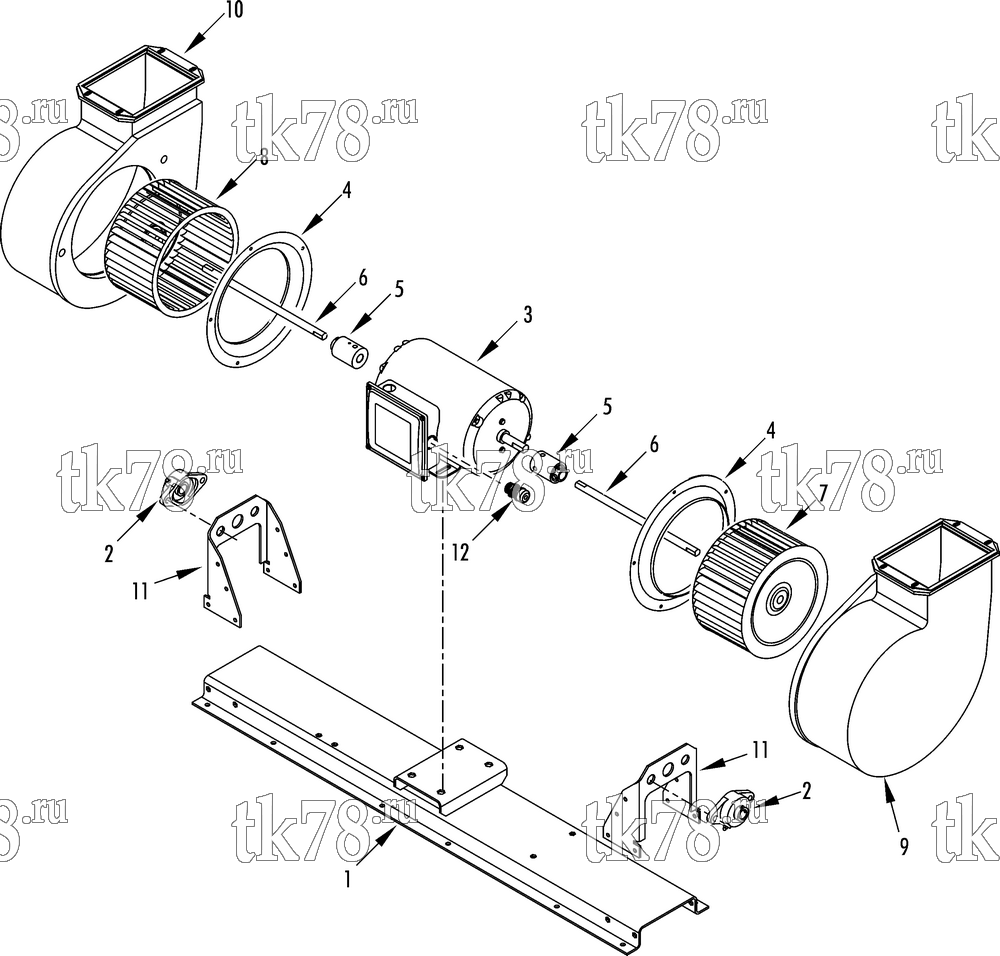

Установкa Thermo King TEA14-M6 схема EVAPORATOR BLOWER – 260A3
Обновление от: 7/9/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8607 | TRAY - evaporator motor | 1 | |
| 55-2969 | SCREW - tray | 12 | ||
| 55-2958 | FLATWASHER | 12 | ||
| 55-2959 | LOCKWASHER | 12 | ||
| 2 | 77-2664 | BEARING - flange | 2 | |
| 55-2961 | SCREW - flange | 4 | ||
| 55-4931 | WASHER - special | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 55-4955 | NUT | 4 | ||
| 3 | 104-778 | MOTOR - evaporator blower | 1 | |
| 55-2969 | SCREW - motor | 4 | ||
| 55-4184 | WASHER - spl (.344 id) | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 55-8976 | INSERT | 4 | ||
| 4 | 77-1834 | RING - inlet | 2 | |
| 55-4560 | LOCKNUT (10-32) | 10 | ||
| 5 | 77-2589 | COUPLING - flexible | 2 | |
| 6 | 77-2665 | SHAFT - motor | 2 | |
| 7 | 77-2519 | WHEEL - blower (ccw) | 1 | |
| 8 | 77-2518 | WHEEL - blower (cw) | 1 | |
| 9 | 98-8860 | HOUSING - blower (curbside) | 1 | |
| 10 | 98-8859 | HOUSING - blower (roadside) | 1 | |
| 55-4560 | LOCKNUT | 2 | ||
| 11 | 92-7311 | BRACKET - bearing support | 2 | |
| 12 | 51-2049 | CONTECTOR - harness grip | 1 | |
| 51-2050 | WASHER | 1 | ||
| 51-2051 | NUT | 1 |
