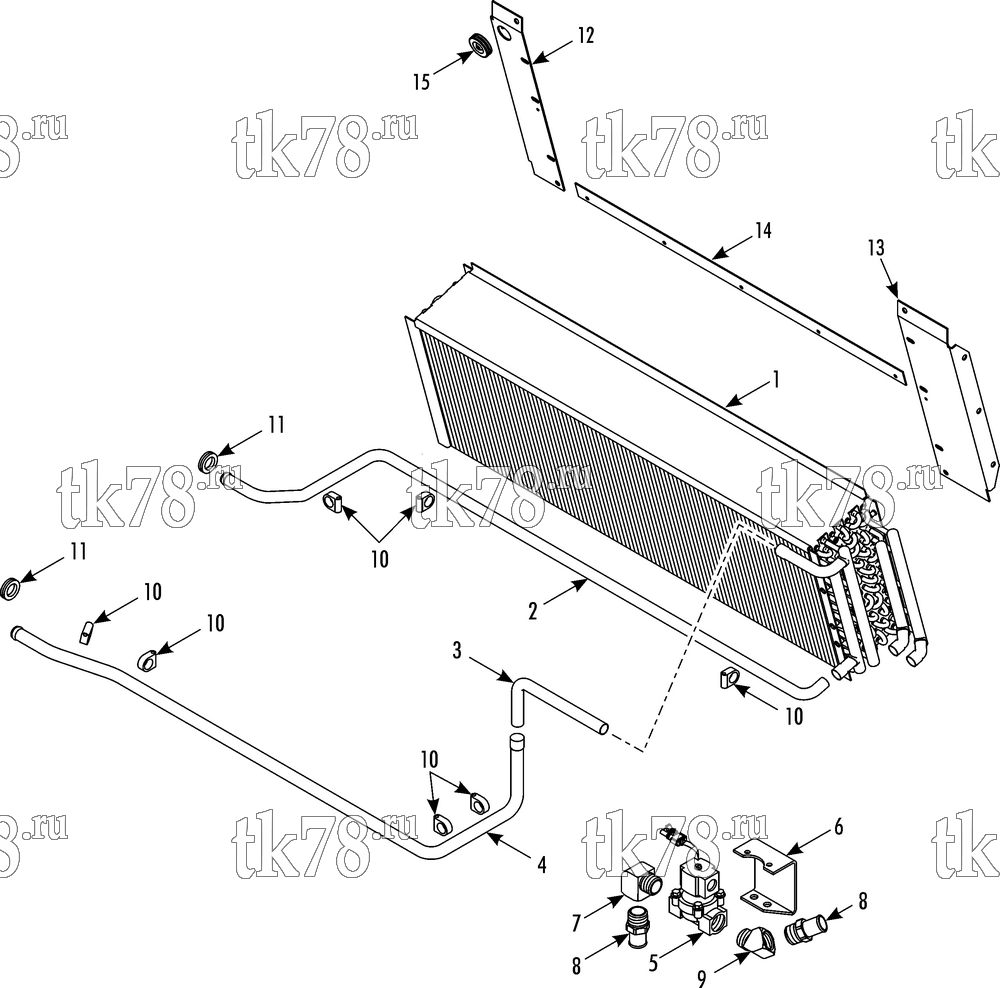

Установкa Thermo King TEA14-M6 схема HEATER COMPONENTS – 258H5
Обновление от: 4/5/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2553 | COIL - evaporator w/heat | 1 | |
| 55-1587 | SCREW - coil | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-8976 | INSERT | 6 | ||
| 2 | 61-5174 | TUBE - coolant, inlet | 1 | |
| 3 | 61-5189 | TUBE - coolant, coil to tube | 1 | |
| 4 | 61-5820 | TUBE - coolant, tube to outlet | 1 | |
| 5 | 41-5610 | VALVE - solenoid | 1 | |
| 44-7553 | COIL - valve | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin, see 115D14 for connectors) | 1 | ||
| 55-2957 | SCREW - valve | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 6 | 92-9101 | BRACKET - valve | 1 | |
| 55-1587 | SCREW - bracket | 5 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 7 | 51-2126 | FITTING - elbow (90 deg) | 1 | |
| 8 | 51-2125 | FITTING - hose | 2 | |
| 9 | 51-2127 | FITTING - elbow (45 deg) | 1 | |
| 203-385 | SEALER - thread | A/R | ||
| 10 | 55-7013 | CLAMP - tube (.875 id) | 7 | |
| 55-2979 | SCREW - clamp | 7 | ||
| 55-4953 | NUT | 7 | ||
| 11 | 33-507 | GROMMET (.875 id) | 2 | |
| 12 | 92-8464 | BRACKET - coil | 1 | |
| 13 | 92-8731 | BRACKET - coil | 1 | |
| 14 | 92-8466 | PLATE - cover (evap bottom) | 1 | |
| 55-2957 | SCREW | 15 | ||
| 55-2086 | FLATWASHER | 15 | ||
| 55-1800 | LOCKWASHER | 15 | ||
| 15 | 33-2110 | GROMMET (1.0 id) | 2 |
