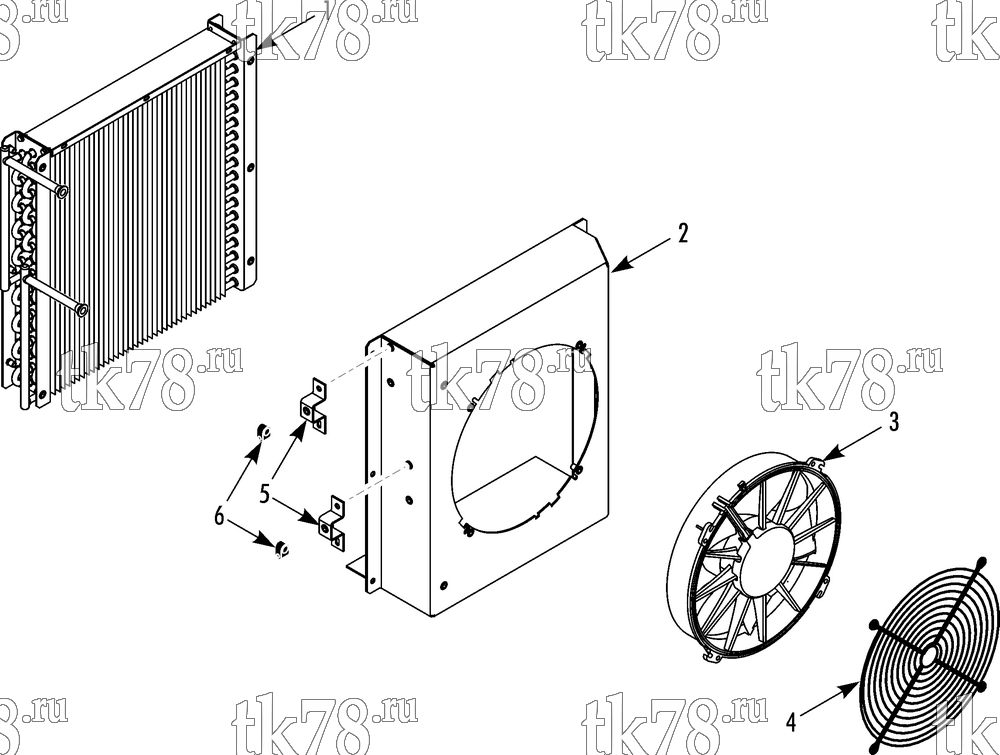

Установкa Thermo King TEA14-M6 схема RADIATOR – 249B3
Обновление от: 11/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2554 | COIL - radiator | 1 | |
| 55-2991 | SCREW - radiator | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-8798 | INSERT | 3 | ||
| 2 | 98-8610 | PANEL - orifice | 1 | |
| 3 | 78-1460 | FAN - radiator (24V) | 1 | |
| 4 | 98-5425 | GUARD - fan | 1 | |
| 55-2979 | SCREW - guard | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4727 | WASHER - special | 4 | ||
| 5 | 92-8736 | BRACKET - clamp | 2 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 6 | 55-6389 | CLAMP - tube | 2 | |
| 55-3675 | SCREW - clamp | 2 |
