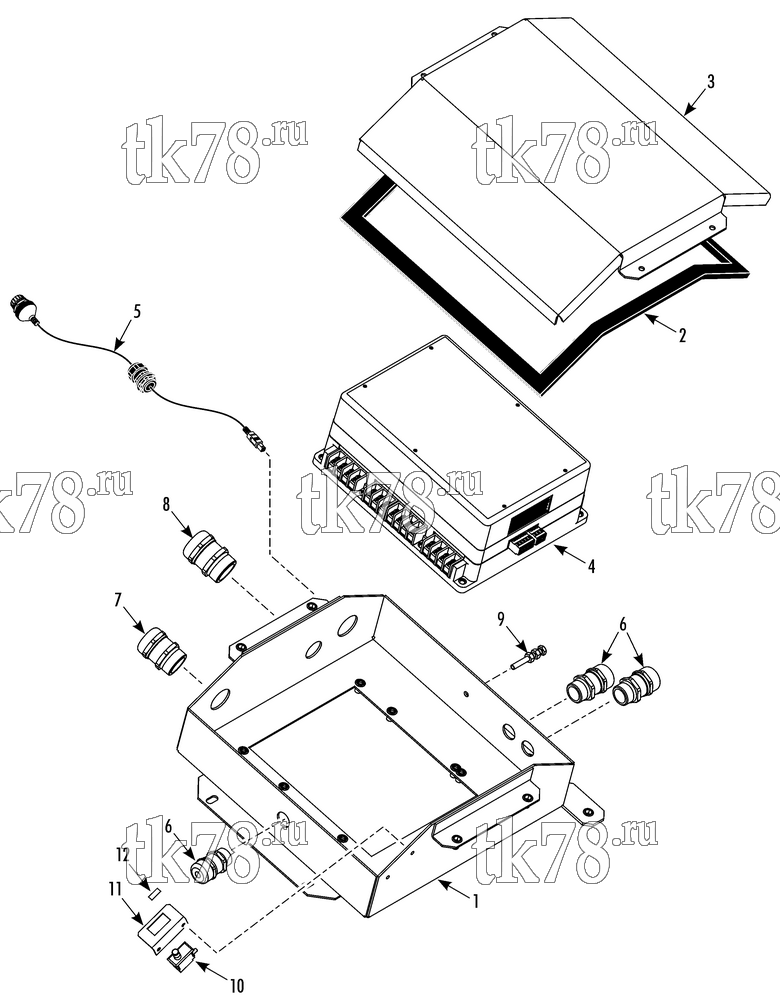

Установкa Thermo King TEA14-M5 схема INVERTER – 260A2
Обновление от: 5/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8989 | PANEL - enclosure | 1 | |
| 55-2957 | SCREW - panel | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-8711 | INSERT | 4 | ||
| 2 | 33-4937 | GASKET - cover | 1 | |
| 3 | 92-8735 | COVER | 1 | |
| 55-2957 | SCREW - cover | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-8711 | INSERT | 4 | ||
| 4 | 45-2360 | INVERTER - control box | 1 | |
| 55-3000 | SCREW - inverter | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-8798 | INSERT | 4 | ||
| 5 | 42-557 | CABLE - inverter USB | 1 | |
| 6 | 51-2049 | CONNECTOR - harness grip | 3 | |
| 51-2050 | WASHER | 3 | ||
| 51-2051 | NUT | 3 | ||
| 7 | 51-2043 | CONNECTOR - harness grip | 1 | |
| 51-2044 | WASHER | 1 | ||
| 51-2045 | NUT | 1 | ||
| 8 | 41-4817 | CONNECTOR - harness grip | 1 | |
| 41-5359 | WASHER | 1 | ||
| 55-2635 | NUT | 1 | ||
| 9 | 55-2977 | SCREW - ground | 1 | |
| 55-2086 | FLATWASHER | 7 | ||
| 55-2993 | LOCKWASHER | 2 | ||
| 55-1801 | NUT | 2 | ||
| 10 | 92-6599 | BRACKET - switch | 1 | |
| 55-3099 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 11 | 41-7998 | SWITCH - safety | 1 | |
| 12 | 92-6600 | STRIP - mark | 1 |
