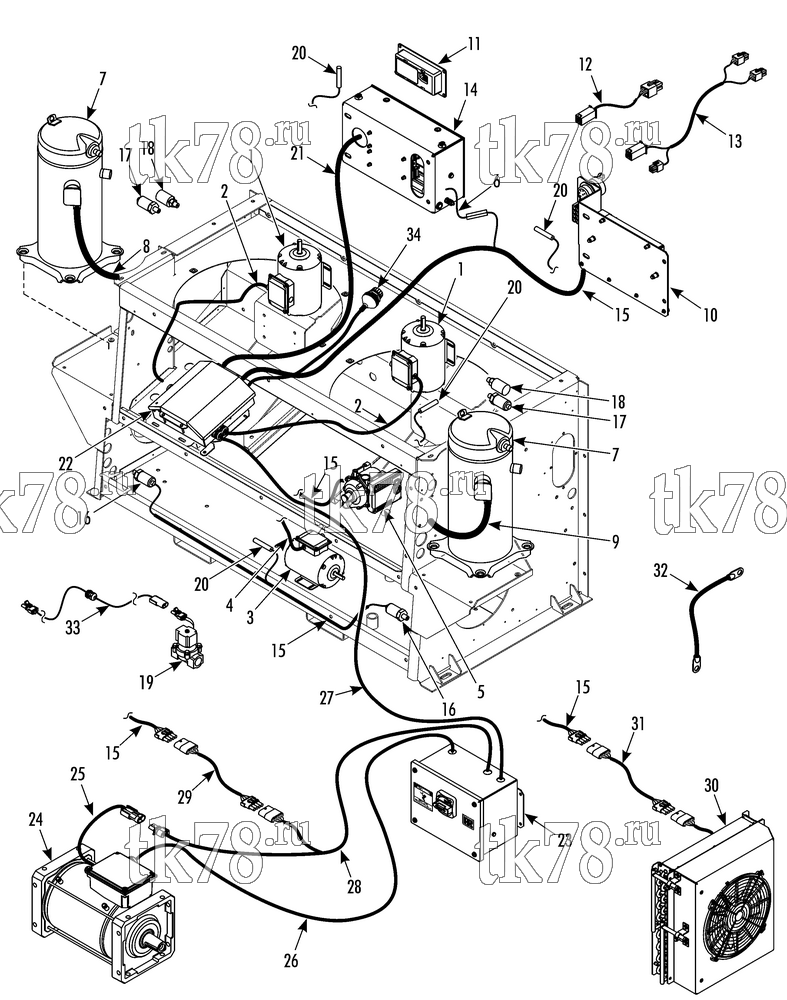

Установкa Thermo King TEA14-M5 схема ELECTRICAL COMPONENTS – 258H6
Обновление от: 7/23/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-779 | MOTOR - condenser fan (see 246G0) | 2 | |
| 2 | 41-9645 | HARNESS - condenser motor | 2 | |
| 41-9022 | TERMINAL - fork (blue #8, 16-14 ga) | 2 | ||
| 44-2791 | TERMINAL - ring (blue #10, 16-14 ga) | 8 | ||
| 3 | 104-778 | MOTOR - evaporator blower (see 260A3) | 1 | |
| 4 | 41-9646 | HARNESS - evaporator motor | 1 | |
| 44-2791 | TERMINAL - ring (blue #10, 16-14 ga) | 1 | ||
| 41-9022 | TERMINAL - fork (blue #8, 16-14 ga) | 4 | ||
| 5 | 13-1235 | PUMP - coolant, boost (see 260A4) | 1 | |
| 6 | 42-462 | HARNESS - contactor box (see 258H8) | 1 | |
| 7 | 102-990 | COMPRESSOR - scroll (see 248H9) | 2 | |
| 8 | 41-9643 | HARNESS - compressor (# 1, see 248H9) | 1 | |
| 9 | 41-9644 | HARNESS - compressor (# 2, see 248H9) | 1 | |
| 10 | NSS | CONTROL - panel, IntelligAIRE III (see 258H7) | 1 | |
| 11 | NSS | MODULE - display IntelligAIRE III (see 246A8) | 1 | |
| 12 | 41-9432 | HARNESS- display IntelligAIRE III (w/resistor, see 246A8) | 2 | |
| 13 | 41-9654 | HARNESS - splitter IntelligAIRE III | 1 | |
| 41-8221 | PLUG - in line (4-pin) | 1 | ||
| 651-148 | TERMINAL - pin (18-24 ga) | 4 | ||
| 41-654 | CONNECTOR - in line (4-pin) | 3 | ||
| 41-1807 | SOCKET (18-24 ga) | 12 | ||
| 14 | NSS | CONTACTOR BOX - compressors (see 258H8) | 1 | |
| 15 | 42-463 | HARNESS - main, IntelligAIRE III (see 258H9) | 1 | |
| 16 | 41-9044 | TRANSDUCER - suction | 2 | |
| 17 | 41-4486 | SWITCH - hpco (see 115D14 for connectors) | 2 | |
| 18 | 41-9043 | TRANSDUCER - discharge | 2 | |
| 19 | 41-5610 | VALVE - coolant (see 258H5) | 1 | |
| 20 | 41-4157 | SENSOR - temperature | 4 | |
| 21 | 41-9649 | HARNESS - contactor power | 1 | |
| 44-9891 | TERMINAL - wire pin (10 ga) | 3 | ||
| 44-2792 | TERMINAL - ring (yellow #10, 12-10 ga) | 1 | ||
| 41-4407 | TERMINAL - fork (yellow #8, 12-10 ga) | 4 | ||
| 22 | NSS | INVERTER (see 260A) | 1 | |
| 23 | NSS | BOX - disconnect (see 258H0) | 1 | |
| 24 | 104-795 | ALTERNATOR (see 260A1) | 1 | |
| 25 | 42-464 | HARNESS - alternator, overload | 1 | |
| 44-5835 | CONNECTOR - shroud (2-pin, see 115D14 for connectors) | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin, see 115D14 for connectors) | 1 | ||
| 26 | 42-465 | HARNESS - alternator to disconnect box | 1 | |
| 41-8854 | TERMINAL - ring (blue 1/4, 8 ga) | 1 | ||
| 41-6710 | TERMINAL - ring (blue #10, 8 ga) | 4 | ||
| 41-8839 | TERMINAL - ring (5/16 8 awg) | 3 | ||
| 27 | 42-466 | HARNESS - inverter to disconnect box | 1 | |
| 41-8854 | TERMINAL (blue 1/4, 8 ga) | 5 | ||
| 41-6710 | TERMINAL (blue #10, 8 ga) | 3 | ||
| 28 | 42-467 | HARNESS - disconnect box | 1 | |
| 44-5838 | CONNECTOR - tower (2-pin, see 115D14 for connectors) | 1 | ||
| 44-8294 | CONNECTOR - shroud (6-pin, see 115D14 for connectors) | 1 | ||
| 41-4817 | CONNECTOR - harness grip | 1 | ||
| 29 | 42-468 | HARNESS - overload unit to disconnect box | 1 | |
| 44-8294 | CONNECTOR - shroud (6-pin, see 115D14 for connectors) | 1 | ||
| 44-7872 | CONNECTOR - tower (6-pin, see 115D14 for connectors) | 1 | ||
| 30 | 78-1460 | FAN - radiator (see 249B3) | 1 | |
| 31 | 41-9651 | HARNESS - radiator cooler (see 115D14 for connectors) | 1 | |
| 44-7880 | CONNECTOR - shroud (4-pin) | 1 | ||
| 44-7881 | CONNECTOR - tower (4-pin) | 1 | ||
| 32 | 41-9475 | CABLE - chassis ground (ch) | 1 | |
| 41-9477 | TERMINAL - lug (3/8, 1 awg) | 1 | ||
| 41-9478 | TERMINAL - lug (1/2, 1 awg) | 1 | ||
| 33 | 41-9947 | HARNESS - coolant valve extension | 1 | |
| 44-5835 | CONNECTOR - shroud (2-pin) | 1 | ||
| 51-2054 | CONNECTOR - harness grip | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 34 | 42-557 | CABLE - inverter USB (see 260A2) | 1 |
