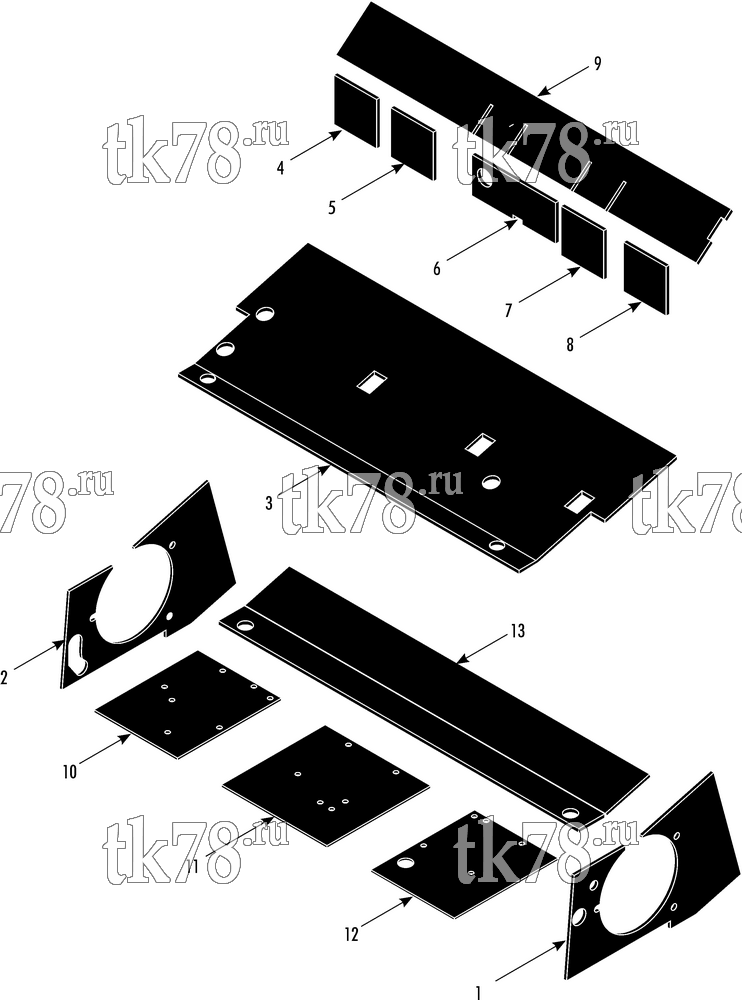

Установкa Thermo King TEA14-M1 схема INSULATION – 249B5
Обновление от: 11/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-4745 | INSULATION - evaporator panel (curbside) | 1 | |
| 2 | 33-4746 | INSULATION - evaporator panel (roadside) | 1 | |
| 3 | 33-4747 | INSULATION - evaporator panel (top) | 1 | |
| 4 | 33-4664 | INSULATION - panel back (roadside) | 1 | |
| 5 | 33-4748 | INSULATION - panel back | 1 | |
| 6 | 33-4749 | INSULATION - panel back (center) | 1 | |
| 7 | 33-4667 | INSULATION - panel back | 1 | |
| 8 | 33-4750 | INSULATION - panel back (curbside) | 1 | |
| 9 | 33-4751 | INSULATION - panel back (top) | 1 | |
| 10 | 33-4670 | INSULATION - bottom (curbside) | 1 | |
| 11 | 33-4671 | INSULATION - bottom (center) | 1 | |
| 12 | 33-4672 | INSULATION - bottom (roadside) | 1 | |
| 13 | 33-4673 | INSULATION - bottom (front) | 1 |
