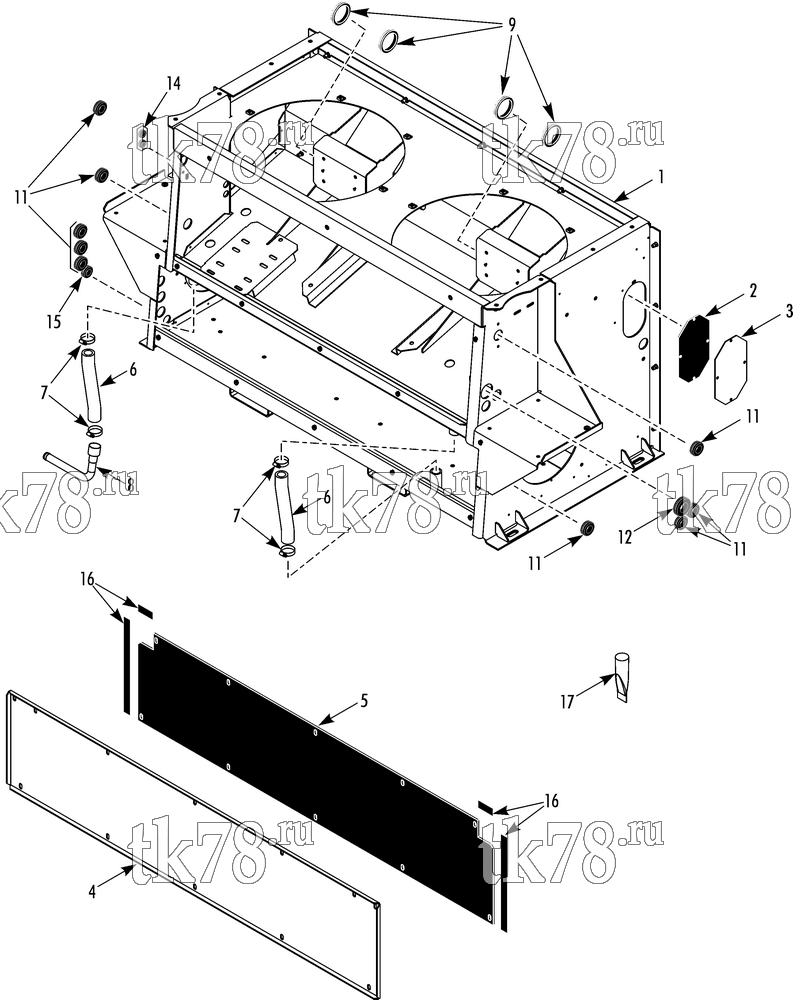

Установкa Thermo King TEA14-M1 схема FRAME – 249B4
Обновление от: 4/5/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8608 | FRAME | 1 | |
| 2 | 92-8458 | PLATE - fresh air block off | 1 | |
| 55-2991 | SCREW - plate | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER- | 4 | ||
| 3 | 33-4674 | INSULATION - fresh air cover | 1 | |
| 4 | 98-8609 | PANEL - rear access | 1 | |
| 55-2977 | SCREW - panel | 10 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 5 | 33-4744 | INSULATION - panel, rear | 1 | |
| 6 | 13-1114 | HOSE - drain (11.25 in long) | A/R | |
| 7 | 55-2684 | CLAMP - hose | 4 | |
| 8 | 13-1085 | TUBE - drain (TEA14-M1) | 1 | |
| 13-1119 | TUBE - drain (TEA14-M2 & M2A) | 1 | ||
| 55-7596 | COUPLING | 1 | ||
| 9 | 33-623 | GROMMET (2.125 id) | 4 | |
| 10 | 33-1692 | GROMMET (.375 id) | 1 | |
| 11 | 33-507 | GROMMET (.875 id) | 9 | |
| 12 | 33-3608 | GROMMET (1.125 id) | 1 | |
| 13 | 33-2110 | GROMMET (1.0 id) | 1 | |
| 14 | 33-1809 | GROMMET (.50 id) | 2 | |
| 15 | 33-810 | GROMMET (.75 id) | 1 | |
| 16 | 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | |
| 17 | 66-1273 | VALVE - check | 4 |
