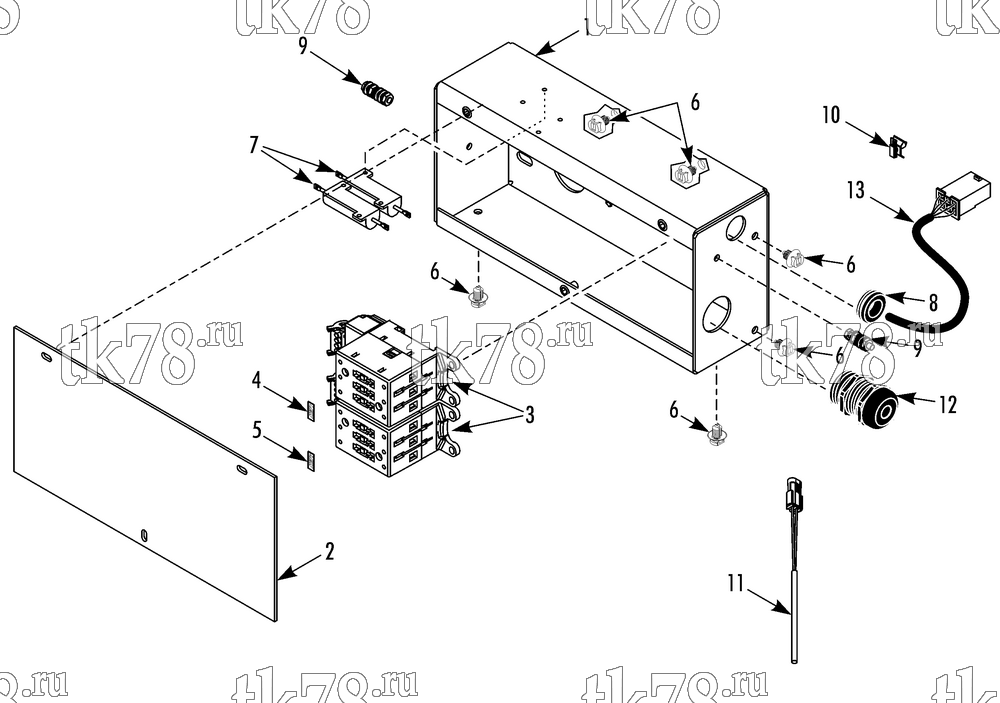

Установкa Thermo King TEA14-M1 схема CONTROL PANEL - COMPRESSORS – 249B1
Обновление от: 2/4/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-8739 | ENCLOSURE | 1 | |
| 55-1587 | SCREW - enclosure | 8 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 2 | 92-8740 | COVER | 1 | |
| 55-2991 | SCREW - cover | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 55-8798 | INSERT | 3 | ||
| 3 | 41-7995 | CONTACTOR (25 amp) | 2 | |
| 55-5974 | SCREW - contactor | 6 | ||
| 55-2202 | LOCKWASHER | 6 | ||
| 55-2201 | FLATWASHER | 6 | ||
| 51-724 | INSERT | 6 | ||
| 4 | 92-6595 | STRIP - mark (COMP1) | 1 | |
| 5 | 92-6596 | STRIP - mark (COMP2) | 1 | |
| 6 | 92-8400 | MOUNT - bandwrap | 3 | |
| 7 | 41-7990 | RESISTOR - assembly | 2 | |
| 55-2270 | RIVET - resistor | 4 | ||
| 8 | 33-367 | GROMMET (.625 id) | 1 | |
| 9 | 55-3000 | SCREW | 2 | |
| 55-2996 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 10 | ||
| 55-2965 | NUT | 4 | ||
| 10 | 55-9704 | CLIP - self locking | 1 | |
| 11 | 41-4157 | SENSOR - temperature (see 115D14 for connectors) | 1 | |
| 12 | 51-2043 | CONNECTOR - harness grip | 1 | |
| 51-2044 | WASHER | 1 | ||
| 51-2045 | NUT | 1 | ||
| 13 | 41-9660 | HARNESS - contactor box | 1 | |
| 41-9443 | PLUG - in line (6-pin) | 1 |
