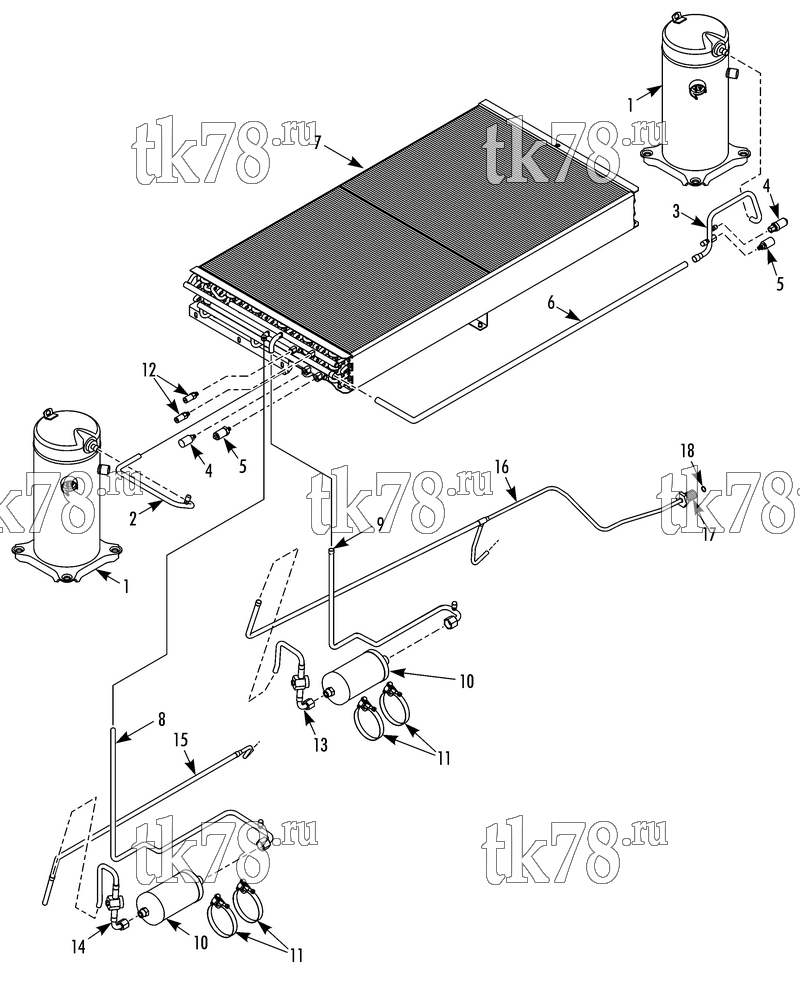

Установкa Thermo King TEA14-M1 схема REFRIGERATION CONDENSER – 249A2
Обновление от: 11/12/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-990 | COMPRESSOR - scroll (see 248H9) | 2 | |
| 2 | 61-5370 | TUBE - compressor to coil (#1) | 1 | |
| 66-9842 | VALVE | 1 | ||
| 3 | 61-5371 | TUBE - compressor to tube (#2) | 1 | |
| 66-9842 | VALVE | 2 | ||
| 66-3571 | FITTING - saddle | 1 | ||
| 55-3627 | COUPLING | 1 | ||
| 4 | 41-9043 | TRANSDUCER - discharge | 2 | |
| 5 | 41-4486 | SWITCH - hpco | 2 | |
| 6 | 61-5372 | TUBE - discharge, tube to condenser | 1 | |
| 7 | 67-2552 | COIL - condenser (see 249A7) | 1 | |
| 8 | 61-5373 | TUBE - condenser to dehydrator (#1) | 1 | |
| 9 | 61-5374 | TUBE - condenser to dehydrator (#2) | 1 | |
| 10 | 61-600 | DEHYDRATOR | 2 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 11 | 55-7800 | CLAMP - dehydrator | 4 | |
| 12 | 66-7392 | VALVE - relief (see 119B8) | 2 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 13 | 61-5375 | TUBE - sightglass (#1) | 1 | |
| 14 | 61-5376 | TUBE - sightglass (#2) | 1 | |
| 15 | 61-5378 | TUBE - liquid, sightglass to expansion valve (#2) | 1 | |
| 16 | 61-5377 | TUBE - liquid, sightglass to expansion valve (#1) | 1 | |
| 17 | 55-7064 | ADAPTER - bulkhead (#10 ors) | 1 | |
| 55-6843 | LOCKWASHER | 1 | ||
| 55-6811 | NUT | 1 | ||
| 18 | 33-566 | O-RING (1/2 id) | 1 |
