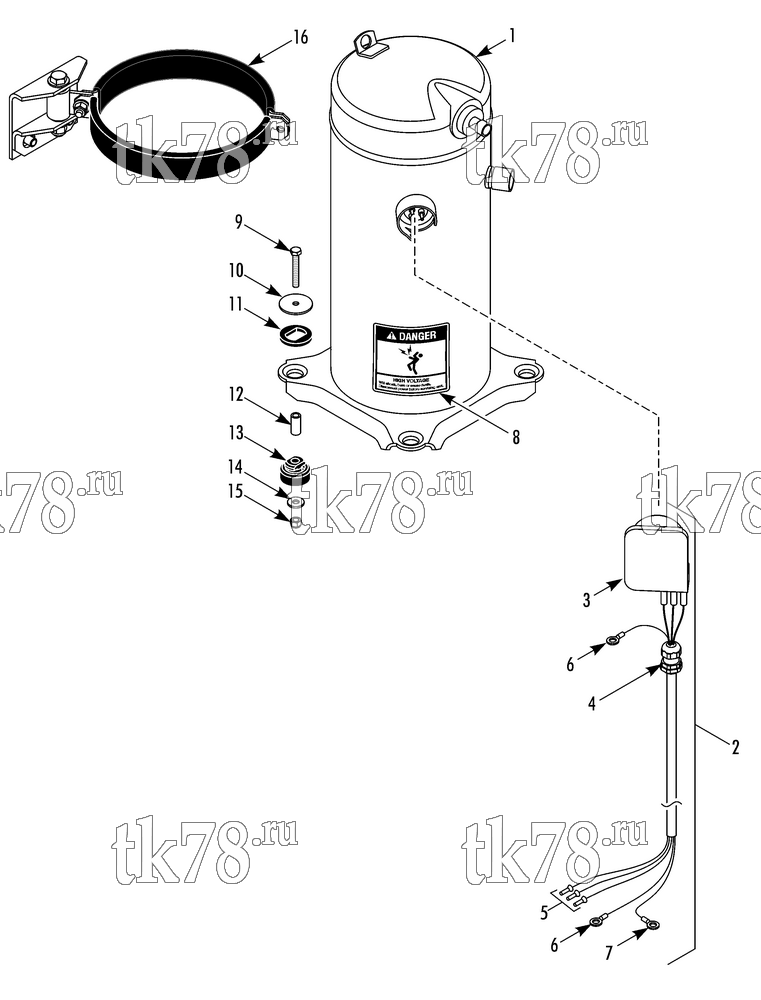

Установкa Thermo King TEA14-M1 схема SCROLL COMPRESSOR – 248H9
Обновление от: 11/8/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-990 | COMPRESSOR - scroll | 2 | |
| 2 | 41-9643 | HARNESS - compressor (motor #1) | 1 | |
| 41-9644 | HARNESS - compressor (motor #2) | 1 | ||
| 3 | 41-8021 | CONNECTOR (3 conductor) | 1 | |
| 4 | 41-8022 | CONNECTOR - harness grip | 1 | |
| 91-9780 | CONNECTOR - straight, female | 1 | ||
| 33-3952 | BUSHING - sealing | 1 | ||
| 5 | 44-9891 | TERMINAL - wire pin (10 ga) | 3 | |
| 6 | 44-2792 | TERMINAL - ring (#10 yellow, 12-10 ga) | 2 | |
| 7 | 44-2791 | TERMINAL - ring (#10 blue, 16-14 ga) | 1 | |
| 8 | 92-4092 | NAMEPLATE - Danger, High Voltage | 2 | |
| 9 | 55-3565 | SCREW - compressor (2.0 in long) | 6 | |
| 55-2962 | SCREW - compressor (1.75 in long) | 2 | ||
| 10 | 51-1818 | WASHER - special | 8 | |
| 11 | 51-1817 | MOUNT - rubber | 8 | |
| 12 | 51-1815 | SPACER - tube (1.1 in long) | 6 | |
| 51-1816 | SPACER - tube (1.0 in long) | 2 | ||
| 13 | 33-4480 | GROMMET - compressor stabilizer | 8 | |
| 14 | 55-4184 | WASHER | 8 | |
| 15 | 55-4954 | NUT - stop | 8 | |
| 16 | 92-8732 | BRACKET - compressor | 2 | |
| 51-2066 | TUBE - support | 2 | ||
| 51-2065 | TUBE - rubber | 2 | ||
| 51-2067 | RING - support (w/wrap) | 4 | ||
| 55-2957 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 |
