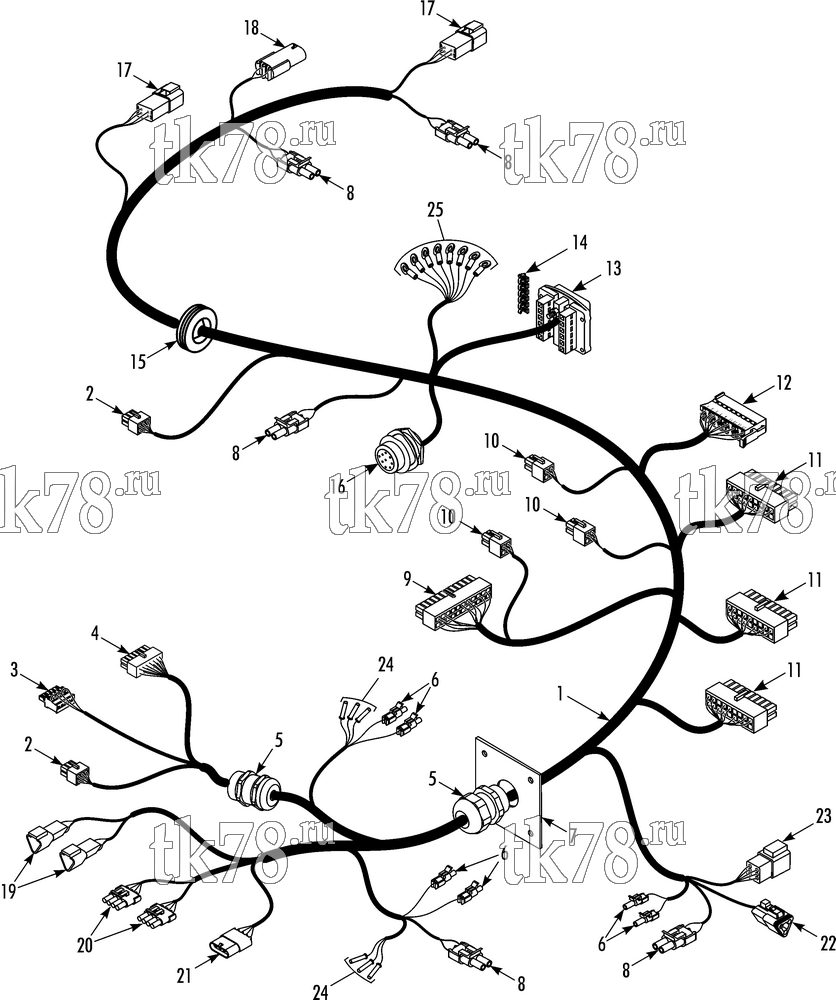

Установкa Thermo King TEA14-M1 схема MAIN HARNESS - IntelligAIRE III – 248H8
Обновление от: 2/4/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9648 | HARNESS - main IntelligAIRE III | 1 | |
| 2 | 41-7605 | PLUG - in line (6-pin) | 2 | |
| 651-148 | TERMINAL - pin (18-24 ga) | 10 | ||
| 3 | 41-9536 | CONNECTOR - multi plug (5-pin) | 1 | |
| 44-9888 | TERMINAL - wirepin (18 ga) | 4 | ||
| 4 | 41-661 | CONNECTOR (14-pin) | 1 | |
| 41-1807 | SOCKET (18-24 ga) | 9 | ||
| 5 | 41-4188 | CONNECTOR - harness grip | 2 | |
| 41-4189 | WASHER - sealing | 2 | ||
| 55-2636 | NUT - lock | 2 | ||
| 6 | 44-7327 | CONNECTOR- tower (1-pin) | 5 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 5 | ||
| 44-8681 | SEAL - cable (red) | 5 | ||
| 7 | 92-8733 | PLATE - blocking | 1 | |
| 8 | 44-5838 | CONNECTOR- tower (2-pin) | 4 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 8 | ||
| 44-8681 | SEAL - cable (red) | 8 | ||
| 9 | 41-656 | CONNECTOR - male (24-pin) | 1 | |
| 41-1807 | SOCKET (18-24 ga) | 17 | ||
| 10 | 41-654 | CONNECTOR - male (4-pin) | 3 | |
| 41-1807 | SOCKET (18-24 ga) | 12 | ||
| 11 | 41-650 | CONNECTOR - male (18-pin) | 3 | |
| 41-1807 | SOCKET (18-24 ga) | 54 | ||
| 12 | 41-3856 | CONNECTOR - female (18-pin) | 1 | |
| 41-4247 | RECEPTACLE (18 ga) | 14 | ||
| 13 | 41-7618 | PANEL - fuse | 1 | |
| 41-8841 | TERMINAL (14-16 awg) | 4 | ||
| 14 | 41-6723 | FUSE - holder lock | 1 | |
| 15 | 33-2110 | GROMMET (1.0 id) | 1 | |
| 16 | 41-9446 | CONNECTOR - receptacle (9-pin) | 1 | |
| 41-9448 | NUT - plastic | 1 | ||
| 44-9602 | PIN - sealing | 3 | ||
| 44-9591 | TERMINAL - pin (18 ga) | 6 | ||
| 17 | 44-8915 | CONNECTOR - receptacle (4-pin) | 2 | |
| 44-8918 | WEDGE (4-pin) | 2 | ||
| 44-9591 | TERMINAL - pin (18 ga) | 6 | ||
| 44-9602 | PIN - sealing | 2 | ||
| 18 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 44-5883 | TERMINAL - male (20-18 ga) | 2 | ||
| 44-8681 | SEAL - cable (red) | 2 | ||
| 19 | 44-9544 | RECEPTACLE (3-pin) | 2 | |
| 44-9545 | WEDGE (3-pin) | 2 | ||
| 20 | 44-7881 | CONNECTOR - tower (4-pin) | 2 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 8 | ||
| 44-8681 | SEAL - cable (red) | 8 | ||
| 21 | 44-7880 | CONNECTOR - shroud (4-pin) | 1 | |
| 44-8681 | SEAL - cable (red) | 4 | ||
| 44-5883 | TERMINAL - male (20-18 ga) | 4 | ||
| 22 | 44-9631 | PLUG (3-pin) | 1 | |
| 41-9653 | WEDGE (3-pin) | 1 | ||
| 44-8330 | SOCKET (18 ga) | 2 | ||
| 23 | 41-4281 | CONNECTOR (6-pin) | 1 | |
| 41-4282 | WEDGE (6-pin) | 1 | ||
| 41-8978 | PIN (16-20 ga) | 5 | ||
| 24 | 44-9591 | PIN (18 ga) | 6 | |
| 25 | 44-2792 | TERMINAL - ring (yellow 1/4, 10-12 ga) | 3 | |
| 44-2791 | TERMINAL - ring (blue #10, 16-14 ga) | 5 |
