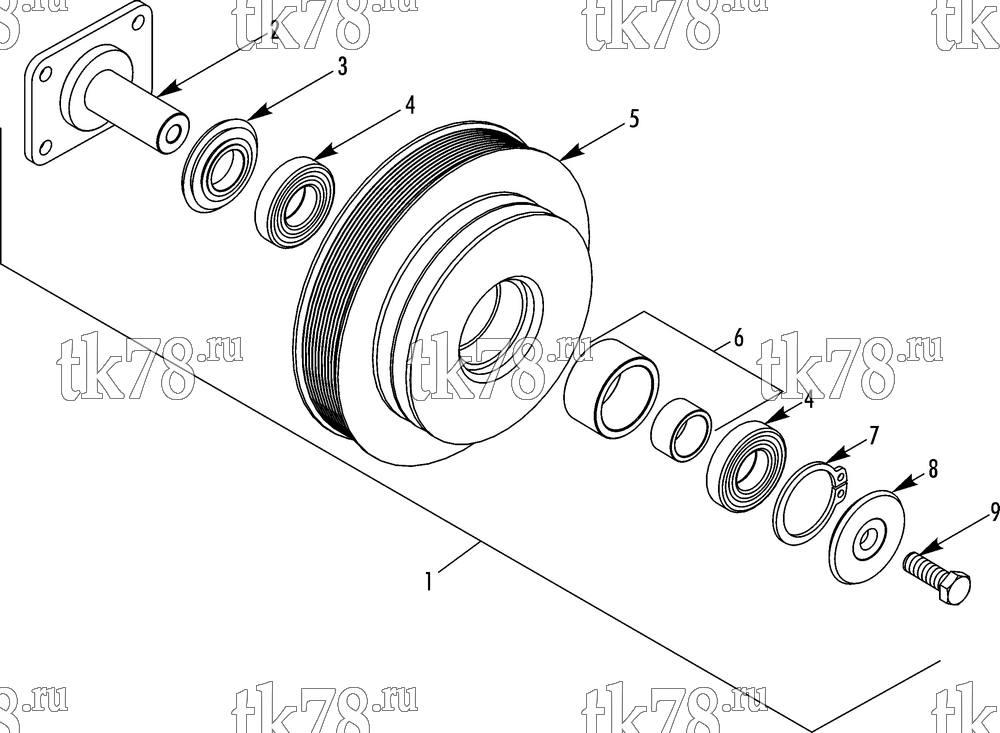

Установкa Thermo King TEA14-M1 схема REDUCING PULLEY ASSEMBLY – 248A3
Обновление от: 5/2/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 77-3018 | PULLEY - reducing assembly | 1 | |
| 2 | 108-2308 | SLIDER - pulley | 1 | |
| 3 | 77-3021 | SPACER (3 blade, inner) | 1 | |
| 4 | 77-3022 | BEARING - pulley | 2 | |
| 5 | NSS | PULLEY - reducing | 1 | |
| 6 | 77-3020 | SPACER - bearing, pair | 1 | |
| 7 | 77-3024 | RING - retaining | 1 | |
| 8 | 77-3023 | SPACER (3 blade, outer) | 1 | |
| 9 | 51-1566 | SCREW - pulley | 1 |
