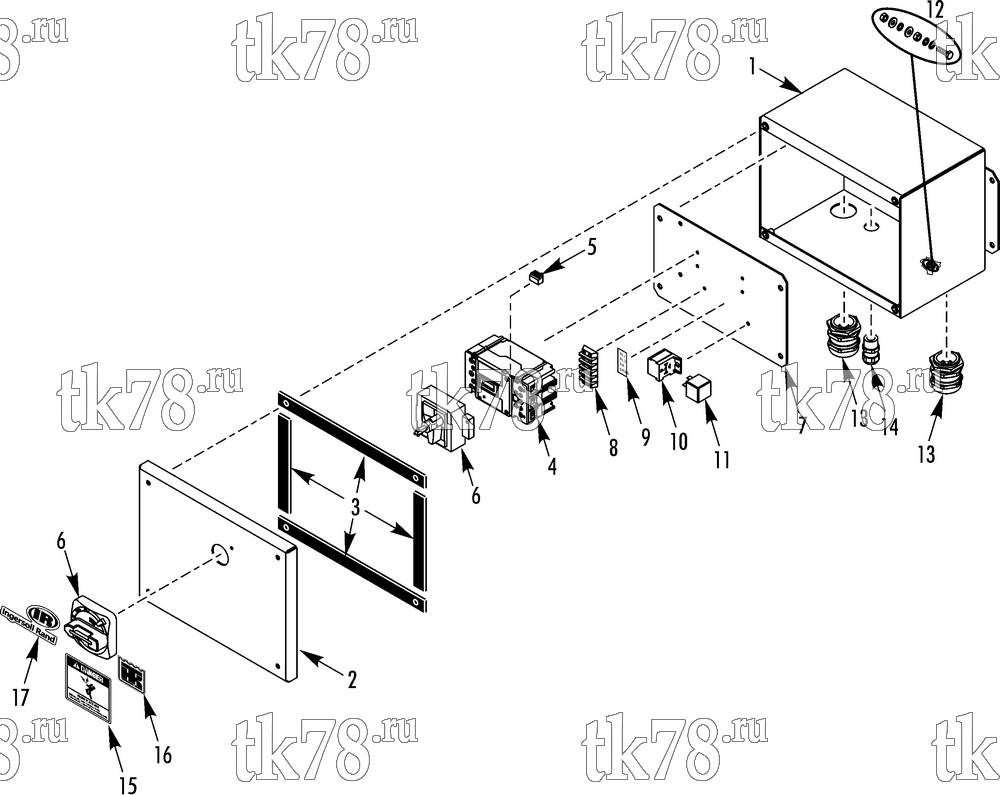

Установкa Thermo King TEA14-M1 схема REMOTE DISCONNECT BOX – 246H8
Обновление от: 1/3/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8555 | BOX - remote disconnect (TEA14-M2) | 1 | |
| 98-8906 | BOX - remote disconnect (TEA14-M2A) | 1 | ||
| 2 | 98-8556 | COVER - remote disconnect | 1 | |
| 55-5965 | SCREW - cover | 4 | ||
| 55-8711 | INSERT | 4 | ||
| 3 | 99-5966 | STRIP - neoprene (50 ft long) | A/R | |
| 4 | 41-9586 | BREAKER - circuit assembly (includes items 5 & 6) | 1 | |
| 5 | 41-9587 | SHUNT | 1 | |
| 6 | 41-9588 | HANDLE - circuit breaker | 1 | |
| 7 | 92-8560 | PLATE - electrical components | 1 | |
| 55-3098 | SCREW - plate | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-3570 | NUT - captive | 4 | ||
| 8 | 44-5534 | BOARD - terminal | 1 | |
| 55-4487 | SCREW - board | 2 | ||
| 55-5754 | NUT - stop | 2 | ||
| 9 | 92-8554 | STRIP - mark | 1 | |
| 10 | 41-9534 | HARNESS - relay disconnect box | 1 | |
| 44-5537 | SOCKET - relay | 1 | ||
| 44-5066 | TERMINAL - fingrip (18-14 ga) | 3 | ||
| 41-438 | TERMINAL - fork (blue #6, 16-14 ga) | 3 | ||
| 11 | 41-896 | RELAY | 1 | |
| 12 | 55-2977 | SCREW | 1 | |
| 55-419 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-1801 | NUT | 2 | ||
| 13 | 51-2046 | CONNECTOR - harness grip | 2 | |
| 51-2047 | WASHER | 2 | ||
| 51-2048 | NUT | 2 | ||
| 14 | 41-8255 | CONNECTOR - harness grip | 1 | |
| 33-4410 | WASHER | 1 | ||
| 55-2836 | NUT | 1 | ||
| 15 | 92-4092 | NAMEPLATE - Danger, High Voltage | 1 | |
| 16 | 91-3247 | NAMEPLATE - TK Logo | 1 | |
| 17 | 92-1773 | NAMEPLATE - IR Logo | 1 |
