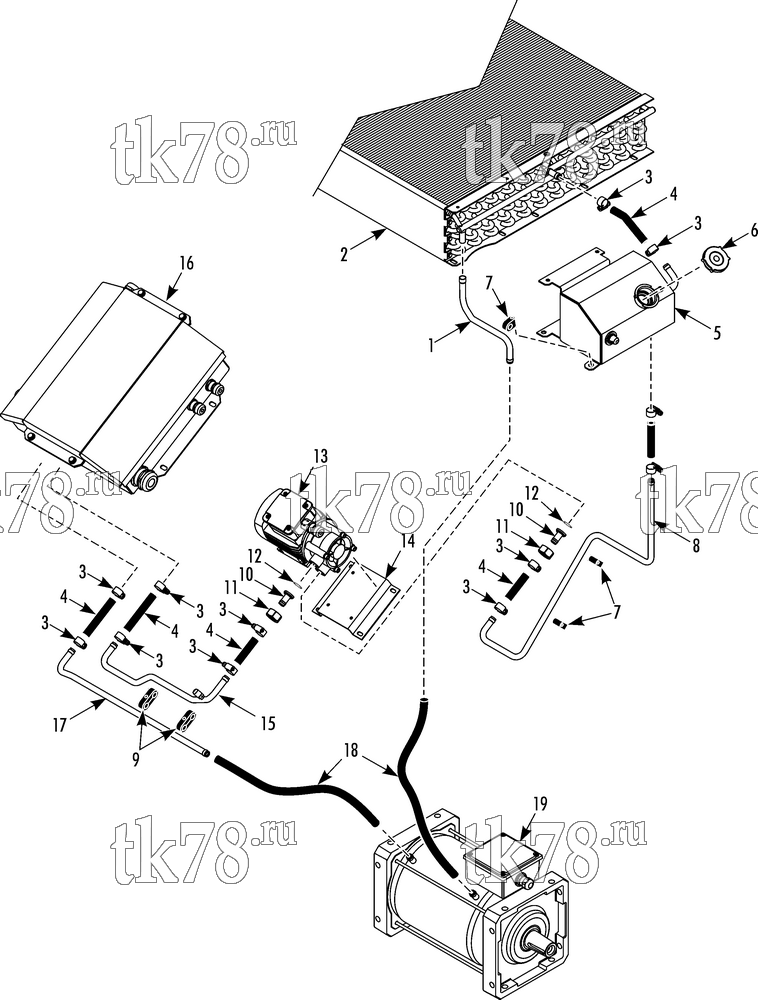

Установкa Thermo King TEA1-M2 схема COOLANT BOOST PUMP CIRCUIT – 246G6
Обновление от: 6/23/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-5258 | TUBE - coolant, inlet | 1 | |
| 2 | 67-2515 | COIL - condenser | 1 | |
| 3 | 55-6726 | CLAMP - hose | 12 | |
| 4 | 13-1106 | HOSE - coolant | A/R | |
| 5 | 13-1105 | TANK - coolant | 1 | |
| 55-2991 | SCREW - tank | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-8798 | INSERT | 4 | ||
| 6 | 11-9242 | CAP - coolant tank | 1 | |
|
10-11-9242 | Крышка радиатора 10 LBS | 2 370 ₽ |
|
| 7 | 91-759 | CLAMP - tube | 3 | |
| 55-3675 | SCREW - clamp | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 8 | 61-5259 | TUBE - coolant, tank to pump | 1 | |
| 9 | 91-445 | CLAMP - tube | 2 | |
| 55-4811 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 10 | 11-9486 | ADAPTER - pump | 2 | |
| 11 | 55-9842 | NUT - adapter | 2 | |
| 12 | 55-9841 | WASHER - sealing | 2 | |
| 13 | 11-9485 | PUMP - coolant, boost | 1 | |
| 55-3843 | SCREW - pump | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT - stop | 4 | ||
| 14 | 92-8559 | BRACKET - pump mounting | 1 | |
| 55-2957 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 15 | 61-5260 | TUBE - coolant, pump to inverter | 1 | |
| 16 | 45-2360 | INVERTER - control box (see 246H7) | 1 | |
| 17 | 61-5261 | TUBE - coolant , inverter out | 1 | |
| 18 | NSS | HOSE - coolant (not supplied by Thermo King) | A/R | |
| 19 | 104-795 | ALTERNATOR (see 246H9 & 246G9) | 1 |
