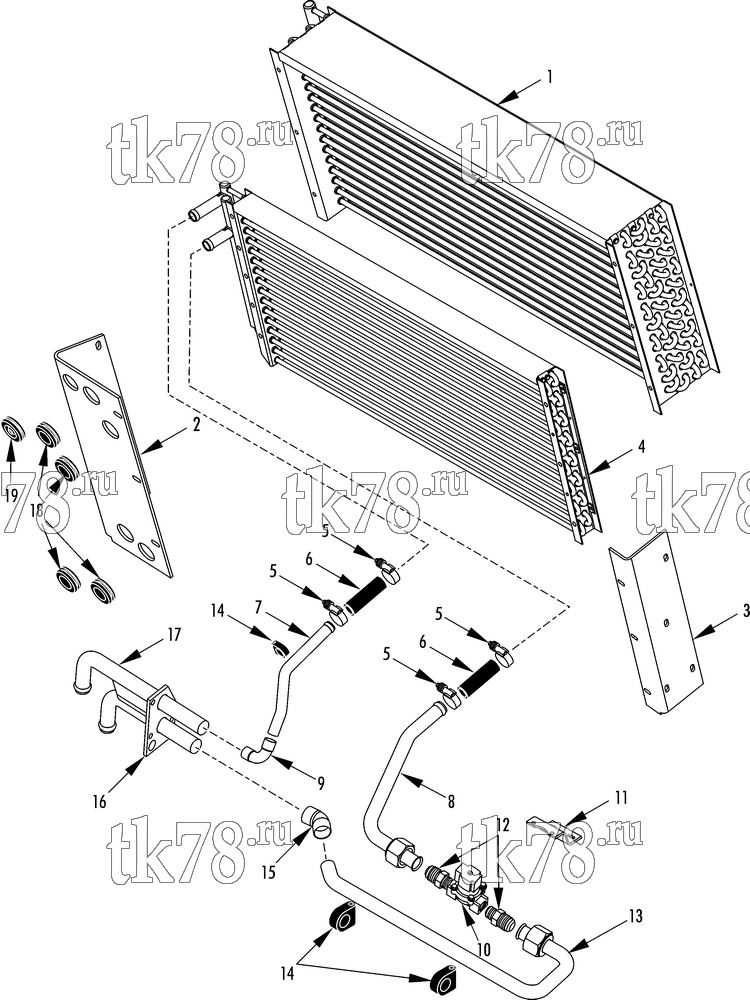

Установкa Thermo King TEA1-M2 схема HEATER COMPONENTS – 246G5
Обновление от: 7/7/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2390 | COIL - evaporator | 1 | |
| 55-1587 | SCREW - coil | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 2 | 92-8548 | BRACKET - coil | 1 | |
| 3 | 92-2997 | BRACKET - coil | 1 | |
| 55-2957 | SCREW | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-8976 | INSERT - threaded | 12 | ||
| 4 | 67-2391 | COIL - heater | 1 | |
| 99-6968 | STRIP - sealing (0.12 x 1 x50 ft) | A/R | ||
| 55-3018 | SCREW - coil | 6 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 5 | 55-3401 | CLAMP - hose | 4 | |
| 6 | 92-7209 | HOSE - water (.875 id, cut 3.75")" | A/R | |
| 7 | 61-4431 | TUBE - outlet | 1 | |
| 8 | 61-4432 | TUBE - inlet from valve to heater | 1 | |
| 9 | 55-3326 | ELBOW - 90 degree | 1 | |
| 10 | 41-5610 | VALVE - assembly (see 173F5) | 1 | |
| 11 | 92-7210 | BRACKET - valve | 1 | |
| 55-1587 | SCREW - valve | 2 | ||
| 55-2957 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 12 | 55-9334 | COUPLING | 2 | |
| 13 | 61-4433 | TUBE - inlet to valve | 1 | |
| 14 | 55-7013 | CLAMP - tube | 3 | |
| 55-3462 | SCREW - clamp | 3 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 15 | 55-4276 | ELBOW - 45 degree | 1 | |
| 16 | 33-1484 | GASKET - tube inlet/outlet | 1 | |
| 17 | 67-1949 | TUBE - assembly inlet/outlet | 1 | |
| 55-2957 | SCREW | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 18 | 33-316 | GROMMET (1.0 id, with .187 groove) | 4 | |
| 19 | 33-2110 | GROMMET (1.0 id, with .125 groove) | 1 |
