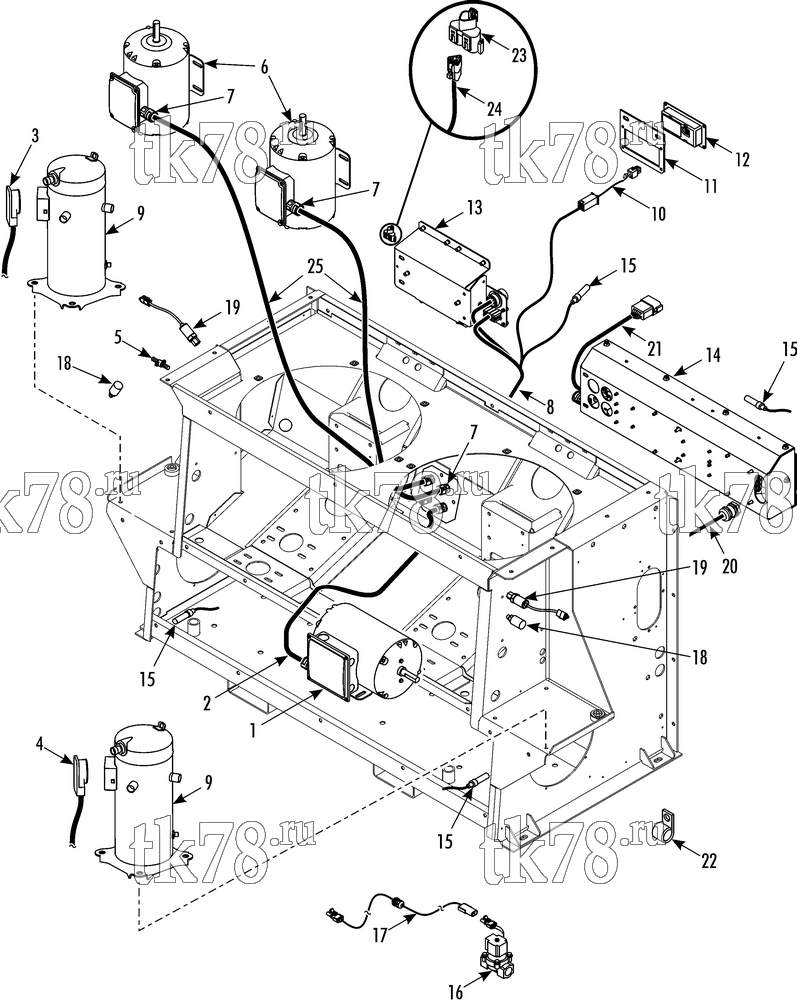

Установкa Thermo King TE14-M5 схема ELECTRICAL COMPONENTS – 271A6
Обновление от: 8/22/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-746 | MOTOR - evaporator (see 255H4) | 1 | |
| 2 | 42-311 | HARNESS - evap motor | 1 | |
| 44-9889 | TERMINAL - wirepin (16 ga) | 6 | ||
| 44-2791 | TERMINAL - ring (blue #10, 16-14 ga) | 3 | ||
| 91-9746 | CONNECTOR - harness grip | 2 | ||
| 33-4410 | WASHER - sealing | 2 | ||
| 55-2836 | NUT - lock | 2 | ||
| 3 | 42-309 | HARNESS - compressor (motor #1, see 255G7) | 2 | |
| 4 | 42-310 | HARNESS - compressor (motor #2, see 255G7) | 2 | |
| 5 | 55-3167 | STUD - ground | 1 | |
| 55-448 | FLATWASHER | 4 | ||
| 55-3066 | LOCKWASHER (int th) | 2 | ||
| 55-3672 | LOCKWASHER (int/ext th) | 1 | ||
| 55-671 | NUT - (hex jam) | 4 | ||
| 6 | 104-747 | MOTOR - condenser fan (see 232D4) | 2 | |
| 7 | 91-9746 | CONNECTOR - straight | 6 | |
| 33-4410 | WASHER - sealing | 6 | ||
| 55-2836 | NUT - lock | 6 | ||
| 8 | 42-312 | HARNESS - main (see 255G0) | 1 | |
| 9 | 102-907 | COMPRESSOR - scroll (see 255G7) | 2 | |
| 10 | 41-9432 | HARNESS - display (see 246A8) | 1 | |
| 11 | 92-8471 | BRACKET - display (see 246A8) | 1 | |
| 12 | 45-2339 | MODULE - display IntelligAIRE III (see 246A8) | 1 | |
| 13 | NSS | PANEL - control (see 255G9) | 1 | |
| 14 | NSS | PANEL - control assembly (see 255H1) | 1 | |
| 15 | 41-4157 | SENSOR - temp | 4 | |
| 16 | 41-5610 | VALVE - solenoid (see 173F5) | 1 | |
| 17 | 41-9947 | HARNESS - coolant valve (see 115D14 for connectors) | 1 | |
| 51-2054 | CONNECTOR - harness grip | 1 | ||
| 18 | 41-4486 | SWITCH - hpco (for connectors see 115D14) | 2 | |
| 41-4809 | SWITCH - only | 2 | ||
| 19 | 41-9043 | TRANSDUCER - discharge | 2 | |
| 20 | 42-1298 | HARNESS - main power | 1 | |
| 21 | 42-314 | HARNESS - panel | 1 | |
| 22 | 51-176 | CLAMP (.25 dia) | 2 | |
| 23 | 42-392 | CONNECTOR - splitter (Y) | 1 | |
| 24 | 42-393 | HARNESS - J1939 (96 in) | 1 | |
| 42-394 | HARNESS - J1939 (100 in) | 1 | ||
| 44-9631 | PLUG - 3-pin | 1 | ||
| 41-9653 | WEDGE - 3-pin (blue) | 1 | ||
| 41-8832 | PIN (20 ga) | 3 | ||
| 42-316 | SOCKET (20 ga) | 3 | ||
| 25 | 42-1299 | HARNESS -condenser motor | 2 |
