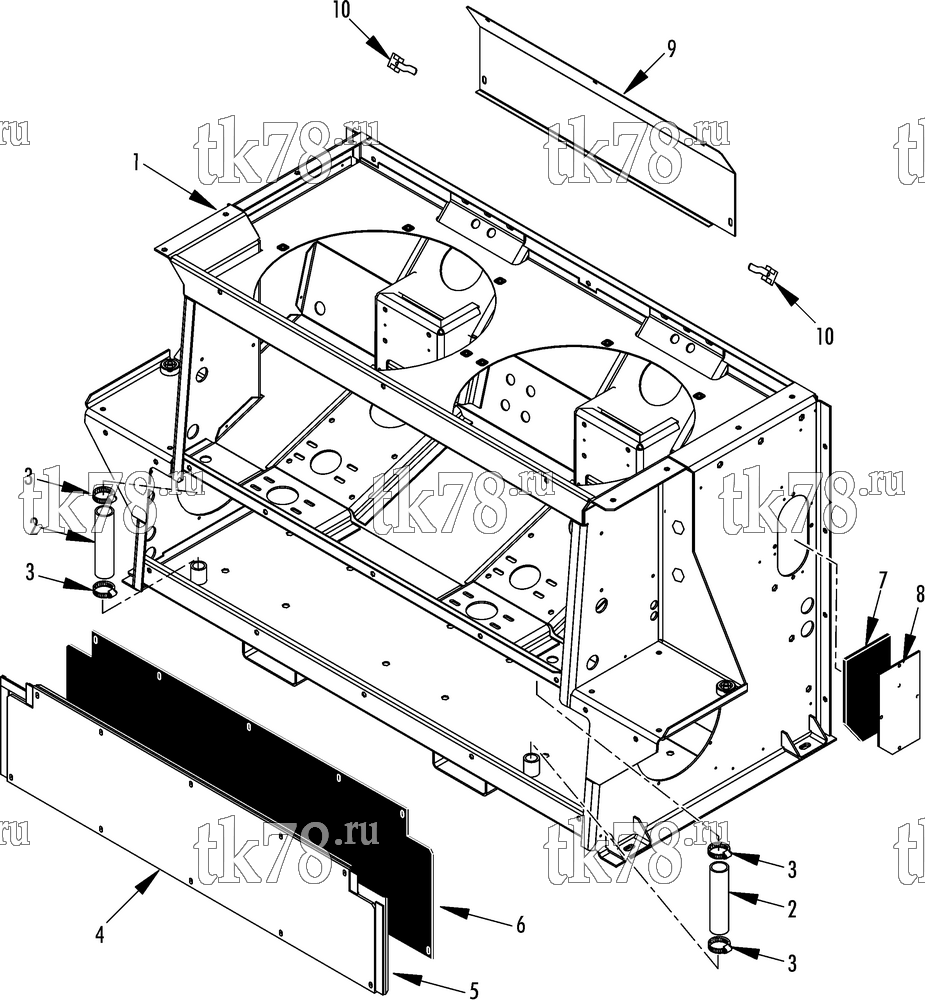

Установкa Thermo King TE11-M6 схема STRUCTURAL COMPONENTS – 238A9
Обновление от: 6/19/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8310 | FRAME - condenser | 1 | |
| 55-3059 | NUT - captive | 22 | ||
| 55-8798 | INSERT - hex (10-32) | 4 | ||
| 55-8711 | INSERT - hex (1/4, .585 dept) | 26 | ||
| 55-8979 | INSERT - hex (1/4, .685 dept) | 28 | ||
| 55-9159 | INSERT - hex (5/16, .685 dept) | 12 | ||
| 55-8976 | INSERT - hex (5/16, .844 dept) | 12 | ||
| 55-3035 | RIVET | 4 | ||
| 99-6968 | STRIP - sealing (0.12 x 1.0 x 50 ft) | A/R | ||
| 2 | 66-6928 | HOSE - drain | 2 | |
| 3 | 55-2818 | CLAMP - hose | 4 | |
| 4 | 98-7922 | COVER - rear | 1 | |
| 55-2977 | SCREW - cover | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 5 | 99-6968 | STRIP - sealing (0.12 x 1.0 x 50 ft) | A/R | |
| 6 | 33-4409 | INSULATION - rear cover | 1 | |
| 7 | 92-852 | INSULATION - cover | 1 | |
| 8 | 98-4536 | COVER - fresh air | 1 | |
| 55-2991 | SCREW - cover | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-8798 | INSERT | 4 | ||
| 9 | 92-6547 | COVER - control pan | 1 | |
| 55-1587 | SCREW - cover | 5 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 55-3059 | NUT - captive | 5 | ||
| 10 | 55-4422 | FASTENER - snap | 2 | |
| 55-2864 | RIVET | 2 |
