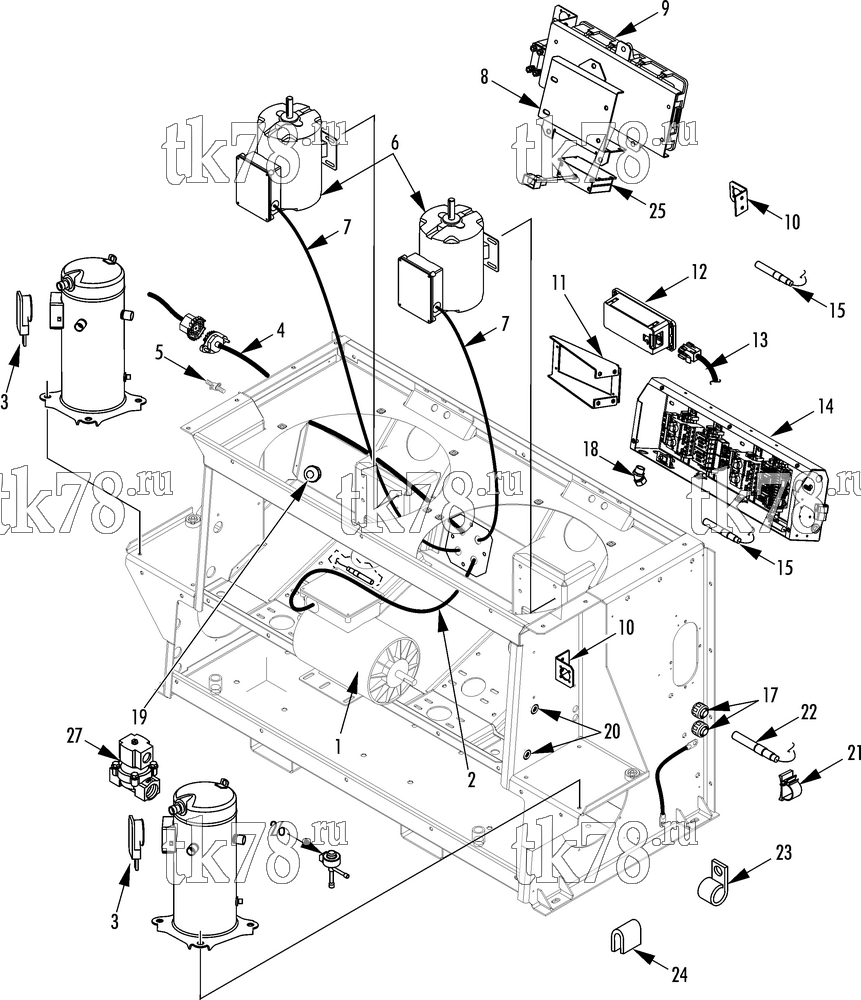

Установкa Thermo King TE11-M6 схема ELECTRICAL COMPONENTS – 238A6
Обновление от: 6/26/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-746 | MOTOR - evaporator | 1 | |
| 2 | 41-8364 | HARNESS - evaporator motor | 1 | |
| 44-9889 | TERMINAL - wirepin 16 ga | 6 | ||
| 44-2791 | TERMINAL - ring (blue #10, 14-16 ga) | 3 | ||
| 91-9746 | CONNECTOR - straight | 2 | ||
| 33-4410 | WASHER - sealing | 2 | ||
| 55-2836 | NUT - lock | 2 | ||
| 3 | 41-8365 | HARNESS - compressor | 2 | |
| 41-8021 | HARNESS - molded, 3 conductor | 2 | ||
| 44-2791 | TERMINAL - ring (blue #10, 14-16 ga) | 1 | ||
| 44-9891 | TERMINAL - wirepin 10 ga | 3 | ||
| 44-2792 | TERMINAL - ring (yellow # 10) | 2 | ||
| 41-8022 | CONNECTOR - liq tite | 2 | ||
| 33-3952 | BUSHING - sealing | 1 | ||
| 91-9780 | CONNECTOR - straight, female | 2 | ||
| 41-4188 | CONNECTOR - liq tite | 2 | ||
| 41-4189 | WASHER - sealing | 2 | ||
| 55-2636 | NUT - lock | 2 | ||
| 4 | NSS | HARNESS - main (see main harness) | 1 | |
| 5 | 55-3167 | STUD - ground | 1 | |
| 55-448 | FLATWASHER | 4 | ||
| 55-3066 | LOCKWASHER (int th) | 2 | ||
| 55-3672 | LOCKWASHER (int/ext th) | 1 | ||
| 55-671 | NUT - (hex jam) | 4 | ||
| 6 | 104-747 | MOTOR - condenser fan | 2 | |
| 7 | 41-8366 | HARNESS - condenser motor | 2 | |
| 44-9889 | TERMINAL - wirepin 16 ga | 6 | ||
| 44-2791 | TERMINAL - ring (blue #10, 14-16 ga) | 3 | ||
| 91-9746 | CONNECTOR - straight | 4 | ||
| 33-4410 | WASHER - sealing | 4 | ||
| 55-2836 | NUT - lock | 4 | ||
| 8 | 92-7816 | BRACKET - controller | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-3059 | NUT - captive | 4 | ||
| 9 | 41-3616 | MODULE - IntelligAIRE II (Deluxe) | 1 | |
| 55-2979 | SCREW - module | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-8711 | INSERT | 3 | ||
| 10 | 92-6193 | BRACKET - diagnostic plug | 1 | |
| 55-2991 | SCREW - bracket | 4 | ||
| 55-2001 | FLATWASHER - bracket | 8 | ||
| 55-4560 | NUT - bracket | 4 | ||
| 41-7774 | LANYARD - nylon | 1 | ||
| 41-2406 | CAP - dust | 1 | ||
| 55-3183 | SCREW - receptacle | 4 | ||
| 11 | 92-6641 | BRACKET - controller | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-8711 | INSERT | 4 | ||
| 12 | 41-7199 | MODULE - display, standard | 1 | |
| 51-802 | SCREW - display | 4 | ||
| 13 | 41-4195 | HARNESS - display | 1 | |
| 41-4284 | CONNECTOR - 6 term | 1 | ||
| 41-4285 | LOCK - terminal | 2 | ||
| 41-4283 | CONNECTOR 6 term | 1 | ||
| 41-4899 | WEDGE - connector | 1 | ||
| 14 | NSS | PANEL - control (see 238A4) | 1 | |
| 15 | 41-7706 | SENSOR - temp | 3 | |
| 16 | 41-896 | RELAY - mini | 1 | |
| 203-524 | GREASE - anti corrosion | A/R | ||
| 17 | 41-4188 | CONNECTOR - liq tite | 2 | |
| 41-4189 | WASHER - sealing | 2 | ||
| 55-2636 | NUT - lock | 2 | ||
| 18 | 41-8023 | CONNECTOR - liq tite | 2 | |
| 55-2635 | NUT - lock | 2 | ||
| 19 | 41-4817 | CONNECTOR - liq tite | 2 | |
| 41-5359 | WASHER - sealing | 2 | ||
| 55-2635 | NUT - lock | 2 | ||
| 20 | 33-507 | GROMMET (7/8 id) | 2 | |
| 21 | 99-9647 | CLIP - wire (0.500 id) | 10 | |
| 22 | 41-8950 | SENSOR - temperature | 2 | |
| 23 | 55-9701 | CLAMP (.375" dia)" | 2 | |
| 51-151 | CLAMP (.562" dia)" | 2 | ||
| 55-9721 | CLAMP (.875 " dia)" | 10 | ||
| 55-2957 | SCREW - clamp | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-9311 | CLAMP (1.00" dia)" | 1 | ||
| 91-759 | CLAMP - tube | 1 | ||
| 24 | 91-7754 | EXTRUSION - rubber | 1 | |
| 25 | 41-8951 | MODULE - Gateway (see 238A0) | 1 | |
| 55-5974 | SCREW | 4 | ||
| 55-2201 | FLATWASHER | 8 | ||
| 55-4223 | NUT | 4 | ||
| 26 | 61-4810 | VALVE - expansion, electric | 1 | |
| 44-7872 | CONNECTOR - tower (6-pin, see 115D14) | 1 | ||
| 44-5884 | TERMINAL - female (18-20 ga) | 5 | ||
| 44-8681 | SEAL - cable (red, 18-20 ga) | 5 | ||
| 44-7812 | PLUG - cavity (green) | 1 | ||
| 27 | 41-5610 | VALVE - assembly (see 173F5) | 1 |
