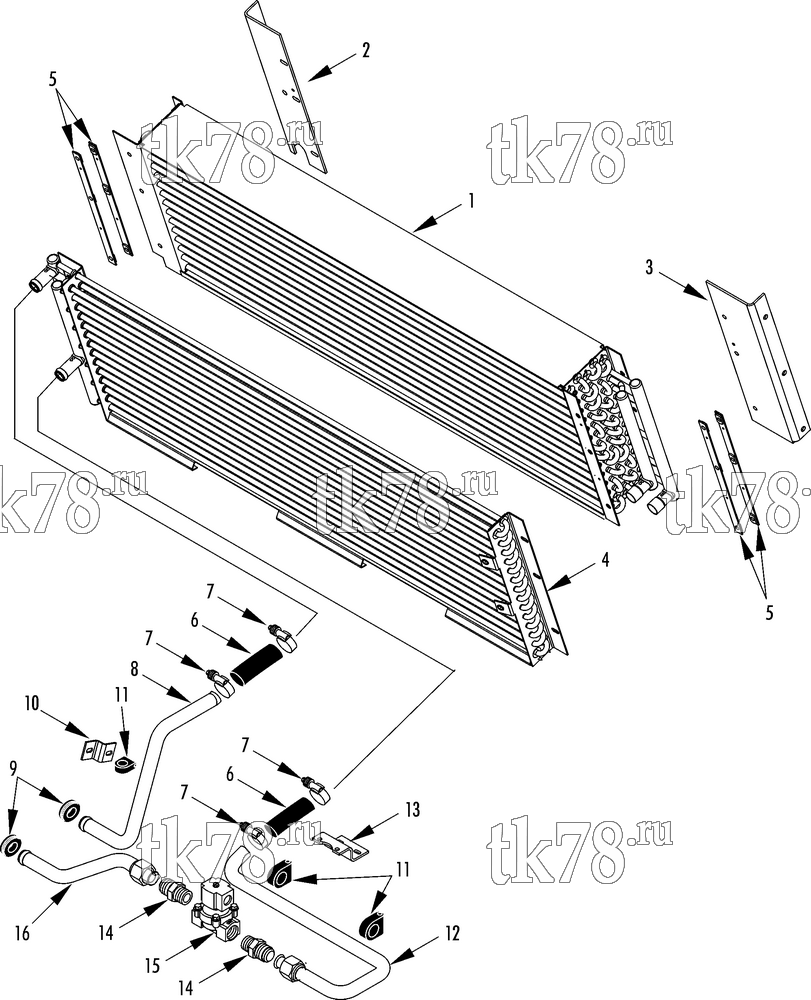

Установкa Thermo King TE11-M5 схема HEATER COMPONENTS – 223H3
Обновление от: 2/22/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2344 | COIL - evaporator | 1 | |
| 55-1587 | SCREW - coil | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 2 | 92-6548 | BRACKET - coil | 1 | |
| 3 | 92-6549 | BRACKET - coil | 1 | |
| 55-2969 | SCREW - bracket | 6 | ||
| 55-2959 | LOCKWASHER | 6 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 55-8976 | INSERT - threaded | 6 | ||
| 4 | 67-2345 | COIL - heater | 1 | |
| 99-6968 | STRIP - sealing (0.12 x 1 x50 ft) | A/R | ||
| 55-3018 | SCREW - coil | 6 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 5 | 99-7803 | NUTSTRIP - coil | 4 | |
| 55-1714 | RIVET - nutstrip | 8 | ||
| 6 | 12-537 | HOSE - water (silicone, .875 id, cut 3.75")" | A/R | |
| 92-7209 | HOSE - water (EPDM, .875 id, cut 3.75")" | A/R | ||
| 7 | 55-3401 | CLAMP - hose | 4 | |
| 8 | 61-4162 | TUBE - water outlet | 1 | |
| 9 | 33-507 | GROMMET (.875 id) | 2 | |
| 10 | 92-6550 | BRACKET - water lines | 1 | |
| 55-2957 | SCREW - bracket | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 1 | ||
| 11 | 55-7013 | CLAMP - tube | 3 | |
| 55-3462 | SCREW - clamp | 3 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-8711 | INSERT | 1 | ||
| 55-8789 | INSERT | 2 | ||
| 12 | 61-4163 | TUBE - water (inlet) | 1 | |
| 55-9951 | NUT - tube | 1 | ||
| 13 | 92-6552 | BRACKET - valve | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-8979 | INSERT | 2 | ||
| 14 | 55-9334 | COUPLING | 2 | |
| 203-385 | SEALER - thread | A/R | ||
| 15 | 41-5610 | VALVE - assembly | 1 | |
| 41-7599 | VALVE - solenoid, water (see 173F5) | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 55-1587 | SCREW - valve | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 16 | 61-4164 | TUBE - water (inlet) | 1 |
