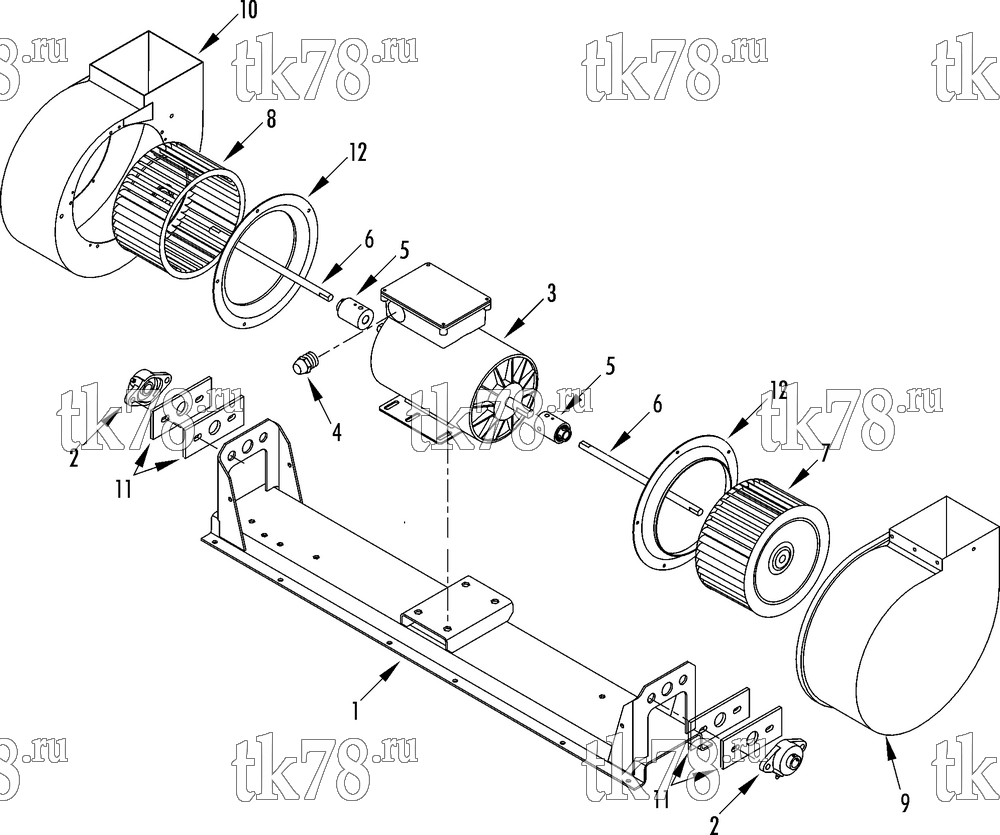

Установкa Thermo King TE11-M5 схема EVAPORATOR BLOWER – 223H1
Обновление от: 5/7/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7924 | TRAY - evaporator motor | 1 | |
| 55-2969 | SCREW - tray | 12 | ||
| 55-2958 | FLATWASHER | 12 | ||
| 55-2959 | LOCKWASHER | 12 | ||
| 55-9159 | INSERT - threaded | 12 | ||
| 2 | 77-2664 | BEARING - flange | 2 | |
| 55-2341 | SCREW - flange | 4 | ||
| 55-4931 | WASHER - special | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 55-4955 | NUT | 4 | ||
| 3 | 104-746 | MOTOR - evaporator blower (see 153G5) | 1 | |
| 55-2969 | SCREW - motor | 4 | ||
| 55-4184 | WASHER - spl (.344 id) | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 55-8976 | INSERT | 4 | ||
| 4 | 91-9746 | CONNECTOR - straight | 1 | |
| 33-4410 | WASHER - sealing | 1 | ||
| 55-2836 | NUT - lock | 1 | ||
| 5 | 77-2589 | COUPLING - flexible | 2 | |
| 6 | 77-2665 | SHAFT - motor | 2 | |
| 7 | 77-2519 | WHEEL - blower (ccw) | 1 | |
| 8 | 77-2518 | WHEEL - blower (cw) | 1 | |
| 9 | 98-7382 | HOUSING - blower (curbside) | 1 | |
| 10 | 98-7383 | HOUSING - blower (roadside) | 1 | |
| 55-4560 | LOCKNUT (10-32) | 2 | ||
| 11 | 92-761 | SPACER - bearing | 4 | |
| 12 | 77-1834 | RING - inlet | 2 | |
| 55-4560 | LOCKNUT (10-32) | 10 |
