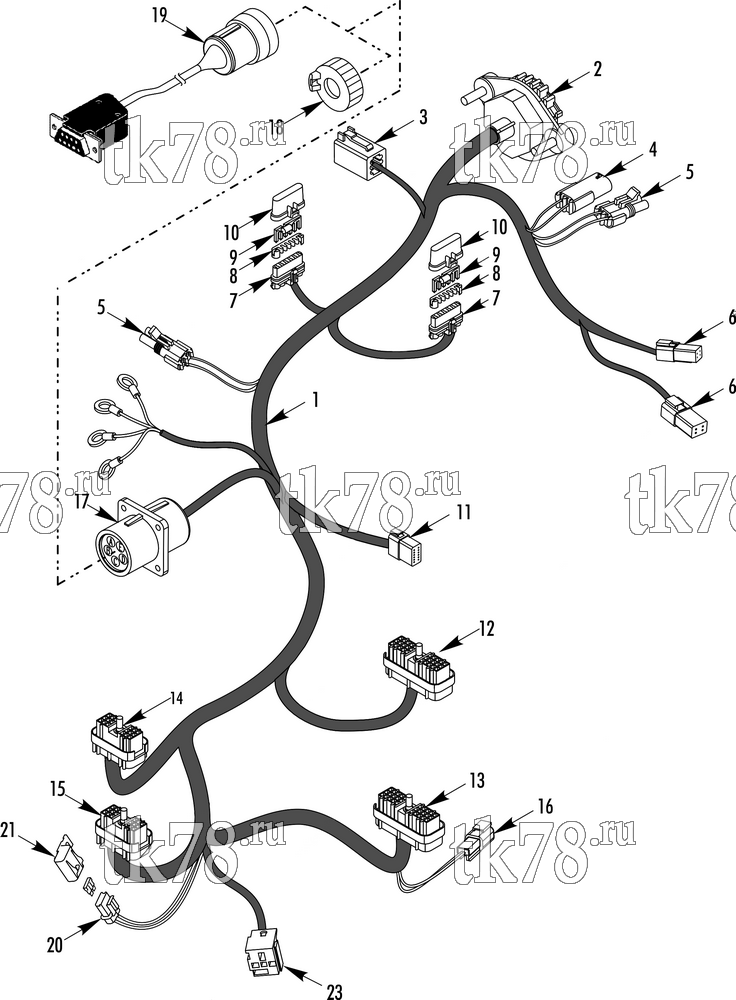

Установкa Thermo King TE11-M5 схема MAIN HARNESS - IntelligAIRE II – 223E6
Обновление от: 8/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2228 | HARNESS - main | 1 | |
| 2 | 44-7829 | CONNECTOR - tower (22-pin, see 115D14) | 1 | |
| 44-7811 | LOCK - secondary | 2 | ||
| 3 | 41-4281 | CONNECTOR (6-pin) | 1 | |
| 41-4282 | WEDGE | 1 | ||
| 4 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 5 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 6 | 44-8915 | RECEPTACLE (4-pin) | 2 | |
| 7 | 41-1789 | CONNECTOR - tower (6-pin) | 2 | |
| 8 | 41-1790 | LOCK - secondary (6-pin) | 2 | |
| 9 | 41-1788 | BUSBAR (6 way) | 2 | |
| 10 | 41-1787 | COVER - connector | 2 | |
| 11 | 44-9600 | PLUG (12-pin, w/seal) | 1 | |
| 12 | 41-4136 | CONNECTOR (30-pin, white) | 1 | |
| 13 | 44-8857 | CONNECTOR (30-pin, black) | 1 | |
| 44-9240 | TERMINAL - female (16-20 ga) | A/R | ||
| 14 | 41-4135 | CONNECTOR (18-pin, white) | 1 | |
| 15 | 44-8858 | CONNECTOR (18-pin, black) | 1 | |
| 44-9240 | TERMINAL - female (16-20 ga) | A/R | ||
| 16 | 41-7738 | CONNECTOR (2-pin) | 1 | |
| 41-7739 | WEDGE | 1 | ||
| 17 | 41-2405 | CONNECTOR - receptacle ( 5-pin) | 1 | |
| 55-4247 | SCREW - connector | 4 | ||
| 55-2360 | LOCKWASHER | 4 | ||
| 55-2359 | FLATWASHER | 8 | ||
| 55-2361 | NUT | 4 | ||
| 18 | 41-2406 | CAP - dust | 1 | |
| 41-7774 | LANYARD - nylon | 1 | ||
| 19 | 204-1040 | CABLE - download | 1 | |
| 20 | 41-1770 | HOLDER - fuse | 1 | |
| 30-41-1770 | Гнездо предохранителя 32V 30А | 760 ₽ |
|
|
| 41-1292 | FUSE | 1 | ||
|
10-41-1292 | Предохранитель 5 ампер 10 шт | 1 860 ₽ |
|
| 21 | 41-1769 | COVER - fuse | 1 | |
| 30-41-1769 | Крышка предохранителя | 510 ₽ |
|
|
| 22 | 44-5537 | SOCKET - relay | 1 |
