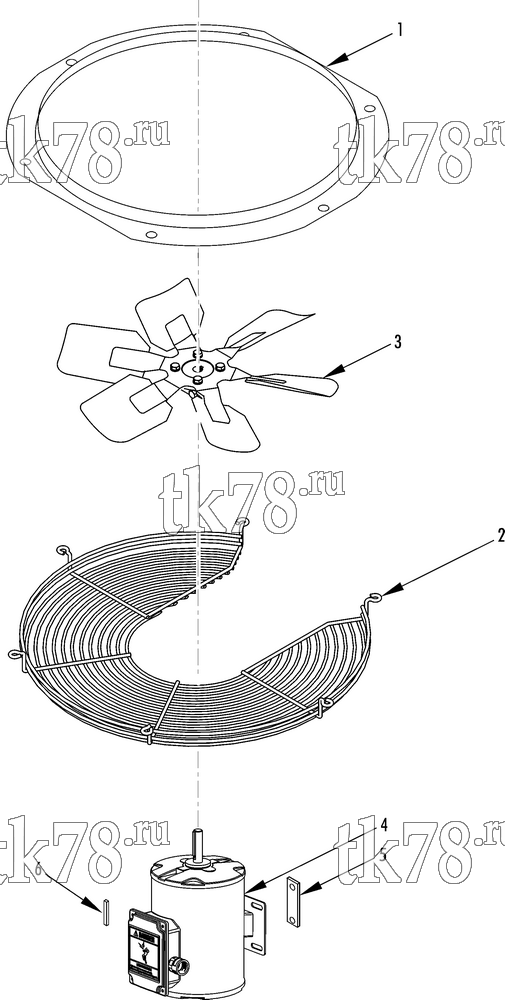

Установкa Thermo King TE11-M5 схема CONDENSER FAN GROUP – 223E5
Обновление от: 5/7/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2357 | ORIFICE - condenser fan | 2 | |
| 2 | 98-5264 | GUARD - fan | 2 | |
| 55-2979 | SCREW - orifice & guard | 12 | ||
| 55-2945 | WASHER - special | 12 | ||
| 55-3045 | WASHER - dome | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-3059 | NUT - captive | 12 | ||
| 3 | 78-542 | FAN - condenser | 2 | |
| 78-567 | FAN | 2 | ||
| 55-2963 | SCREW - fan to hub | 4 | ||
| 55-2959 | LOCKWASHER | 6 | ||
| 77-1457 | HUB | 1 | ||
| 55-3089 | SCREW - hub to motor shaft | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 4 | 104-747 | MOTOR - condenser fan | 1 | |
| 55-2969 | SCREW - motor | 8 | ||
| 55-2959 | LOCKWASHER | 8 | ||
| 55-4184 | WASHER - special | 8 | ||
| 5 | 99-8335 | NUTSTRIP | 4 | |
| 55-3035 | RIVET - nutstrip | 4 | ||
| 6 | 55-2048 | KEY | 2 |
