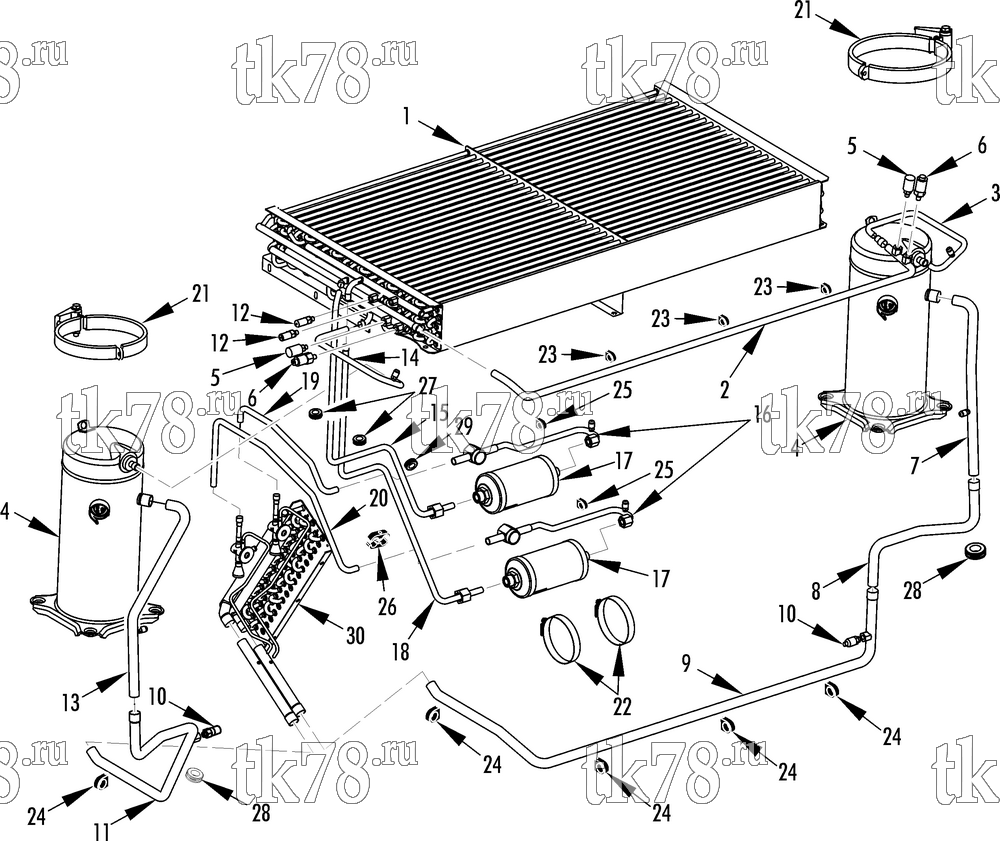

Установкa Thermo King TE1-M3 схема REFRIGERATION COMPONENTS – 231B7
Обновление от: 1/15/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2392 | COIL - condenser | 1 | |
| 55-8711 | INSERT | 5 | ||
| 99-5966 | STRIP - neoprene | A/R | ||
| 2 | 61-4434 | TUBE - joint to coil (#2) | 1 | |
| 66-9842 | VALVE | 1 | ||
| 3 | 61-4435 | TUBE - compressor to joint (#2) | 1 | |
| 4 | 102-907 | COMPRESSOR - scroll | 2 | |
| 55-4931 | WASHER | 4 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 55-4955 | NUT | 6 | ||
| 5 | 41-4486 | SWITCH - hpco (for connectors see 115D14) | 2 | |
| 41-4809 | SWITCH - only | 2 | ||
| 6 | 41-7956 | TRANSDUCER - pressure - discharge/500psi | 2 | |
| 7 | 61-4436 | TUBE - joint to compressor (#2) | 1 | |
| 66-9842 | VALVE | 1 | ||
| 8 | 61-4437 | TUBE (#2) | 1 | |
| 9 | 61-4438 | TUBE - coil to joint (#2) | 1 | |
| 10 | 41-7958 | TRANSDUCER - pressure - suction/200psi | 2 | |
| 11 | 61-4439 | TUBE - coil to joint (#1) | 1 | |
| 12 | 66-7392 | VALVE - relief (see 119B8) | 2 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 13 | 61-4446 | TUBE - joint to compressor (#1) | 1 | |
| 66-9842 | VALVE | 1 | ||
| 14 | 61-4440 | TUBE - compressor to coil (#1) | 1 | |
| 15 | 61-4441 | TUBE - coil to dehydrator (#1) | 1 | |
| 66-9842 | VALVE - pressure | 1 | ||
| 66-4139 | FITTING - saddle | 2 | ||
| 16 | 61-4442 | TUBE - sight glass | 2 | |
| 66-1188 | INDICATOR - liquid | 2 | ||
| 17 | 61-600 | DEHYDRATOR | 2 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 18 | 61-4443 | TUBE - coil to dehydrator (#2) | 1 | |
| 19 | 61-4444 | TUBE - joint to evap (#1) | 1 | |
| 92-2310 | SEALER - tape | A/R | ||
| 20 | 61-4447 | TUBE - joint to evap (#2) | 1 | |
| 92-2310 | SEALER - tape | A/R | ||
| 21 | 92-7211 | BRACKET - compressor | 2 | |
| 55-2086 | FLATWASHER | 4 | ||
| 55-2977 | SCREW | 2 | ||
| 55-4953 | NUT | 2 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 55-2916 | SCREW | 2 | ||
| 55-4955 | NUT | 2 | ||
| 22 | 55-7800 | CLAMP - dehydrator | 4 | |
| 23 | 91-758 | CLAMP - tube | 3 | |
| 55-3675 | SCREW | 3 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 24 | 55-7013 | CLAMP - tube (.875) | 5 | |
| 55-3675 | SCREW - clamp | 5 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 25 | 91-759 | CLAMP - tube | 2 | |
| 55-3675 | SCREW | 1 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 26 | 91-445 | CLAMP-TUBE | 2 | |
| 55-3675 | SCREW | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 27 | 33-507 | GROMMET (.875 dia) | 4 | |
| 28 | 33-1809 | GROMMET (.500 id) | 2 | |
| 55-2957 | SCREW - bracket | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-6396 | NUT - shoulder | 1 | ||
| 55-6838 | NUT - shoulder | 2 | ||
| 29 | 91-759 | CLAMP - tube | 2 | |
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 30 | 67-2390 | COIL - evaporator (see 231B6) | 1 | |
| 61-4179 | VALVE - expansion | 2 |
