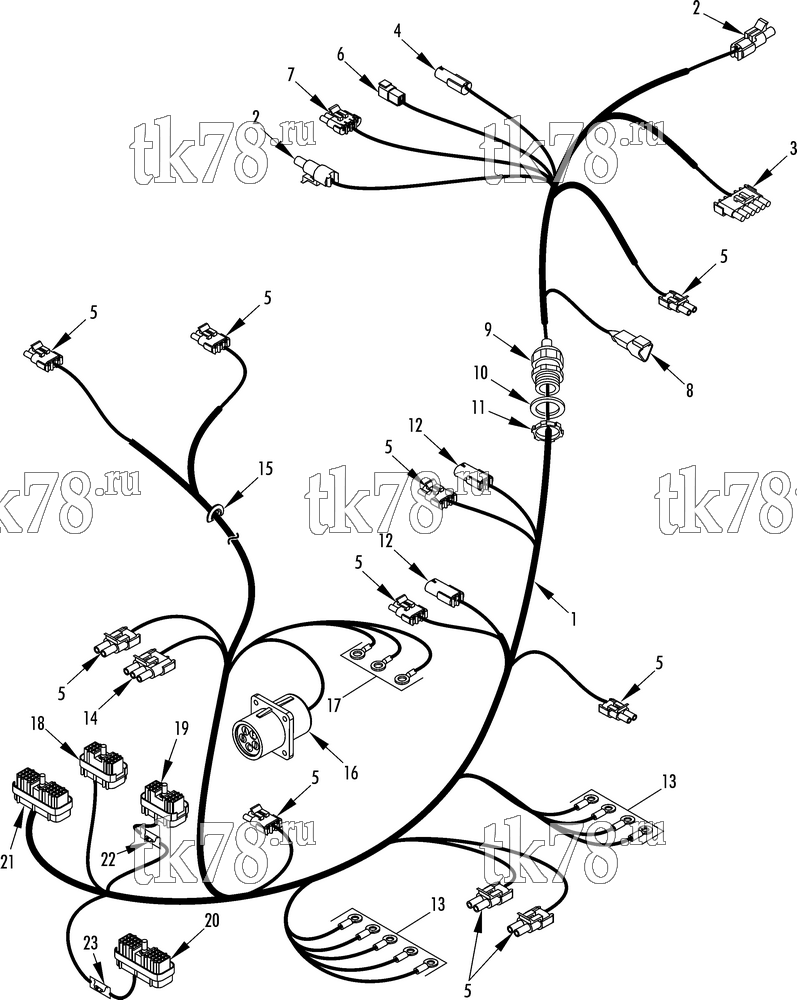

Установкa Thermo King TDD-M2 Northern Double Deck схема HARNESS MAIN – 240A8
Обновление от: 8/17/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-6713 | HARNESS - main | 1 | |
| 2 | 44-7327 | CONNECTOR - tower (1-pin) | 2 | |
| 44-5839 | TERMINAL - female (14-16 ga) | 1 | ||
| 44-5884 | TERMINAL - female (18-20 ga) | 1 | ||
| 44-6324 | SEAL - cable (blue) | 1 | ||
| 44-8681 | SEAL - cable (red) | 1 | ||
| 3 | 44-7872 | CONNECTOR - tower (6-pin) | 1 | |
| 44-5839 | TERMINAL - female (14-16 ga) | 2 | ||
| 44-5884 | TERMINAL - female (18-20 ga) | 4 | ||
| 44-5837 | SEAL - cable (gray) | 2 | ||
| 44-8681 | SEAL - cable (red) | 4 | ||
| 4 | 44-7330 | CONNECTOR - shroud (1-pin) | 1 | |
| 44-5883 | TERMINAL - male (18-20 ga) | 1 | ||
| 44-8681 | SEAL - cable (red) | 1 | ||
| 5 | 44-5838 | CONNECTOR - tower (2-pin) | 10 | |
| 44-8681 | SEAL - cable (red) | 20 | ||
| 44-5884 | TERMINAL - female (18-20 ga) | 20 | ||
| 6 | 41-4281 | RECEPTACLE - (6-pin) | 1 | |
| 41-4282 | WEDGE | 1 | ||
| 41-8978 | PIN (16-20 ga) | 5 | ||
| 41-8979 | PLUG - sealing | 1 | ||
| 7 | 44-7881 | CONNECTOR - tower (4-pin) | 1 | |
| 44-5884 | TERMINAL - female (18-20 ga) | 4 | ||
| 44-8681 | SEAL - cable (red) | 4 | ||
| 8 | 44-9544 | RECEPTACLE - (3-pin) | 1 | |
| 44-8915 | WEDGE | 1 | ||
| 44-9591 | PIN (18 ga) | 3 | ||
| 9 | 41-6950 | CONNECTOR - liquid tite | 1 | |
| 41-3123 | HEATSHRINK | 1 | ||
| 10 | 92-6061 | PLATE - blockoff | 1 | |
| 11 | 55-2635 | NUT - lock | 1 | |
| 12 | 44-5835 | CONNECTOR - shroud (2-pin) | 2 | |
| 44-5883 | TERMINAL - male (18-20 ga) | 4 | ||
| 44-8681 | SEAL - cable (red) | 4 | ||
| 13 | 41-4409 | TERMINAL - ring (red #8, 16-22 ga) | 9 | |
| 14 | 44-6959 | CONNECTOR - tower (3-pin) | 1 | |
| 44-8681 | SEAL - cable (red) | 3 | ||
| 44-5884 | TERMINAL - female (18-20 ga) | 3 | ||
| 15 | 83-257 | GROMMET | 1 | |
| 16 | 41-2405 | CONNECTOR - receptacle (5-pin) | 1 | |
| 44-9591 | TERMINAL - pin (18 ga) | 3 | ||
| 44-9602 | PLUG - sealing | 2 | ||
| 17 | 44-2791 | TERMINAL - ring (blue #10, 14-16 ga) | 3 | |
| 18 | 44-8858 | CONNECTOR (18-pin, black) | 1 | |
| 41-8963 | PLUG - seal | 5 | ||
| 44-9240 | TERMINAL - female (16-20 ga) | 13 | ||
| 19 | 41-4135 | CONNECTOR (18-pin, white) | 1 | |
| 41-8963 | PLUG - seal | 9 | ||
| 44-9240 | TERMINAL - female (16-20 ga) | 9 | ||
| 20 | 44-8857 | CONNECTOR (30-pin, black) | 1 | |
| 41-8963 | PLUG - seal | 11 | ||
| 44-9240 | TERMINAL - female (16-20 ga) | 19 | ||
| 21 | 41-4136 | CONNECTOR (30-pin, white) | 1 | |
| 41-8963 | PLUG - seal | 17 | ||
| 44-9240 | TERMINAL - female (16-20 ga) | 13 | ||
| 22 | 41-6117 | RESISTOR (22.1 k .25 w) | 1 | |
| 23 | 41-4537 | RESISTOR (120 ohm 1/2 w) | 1 | |
| 41-7681 | HEATSHRINK (1-1/2 in) | A/R |
