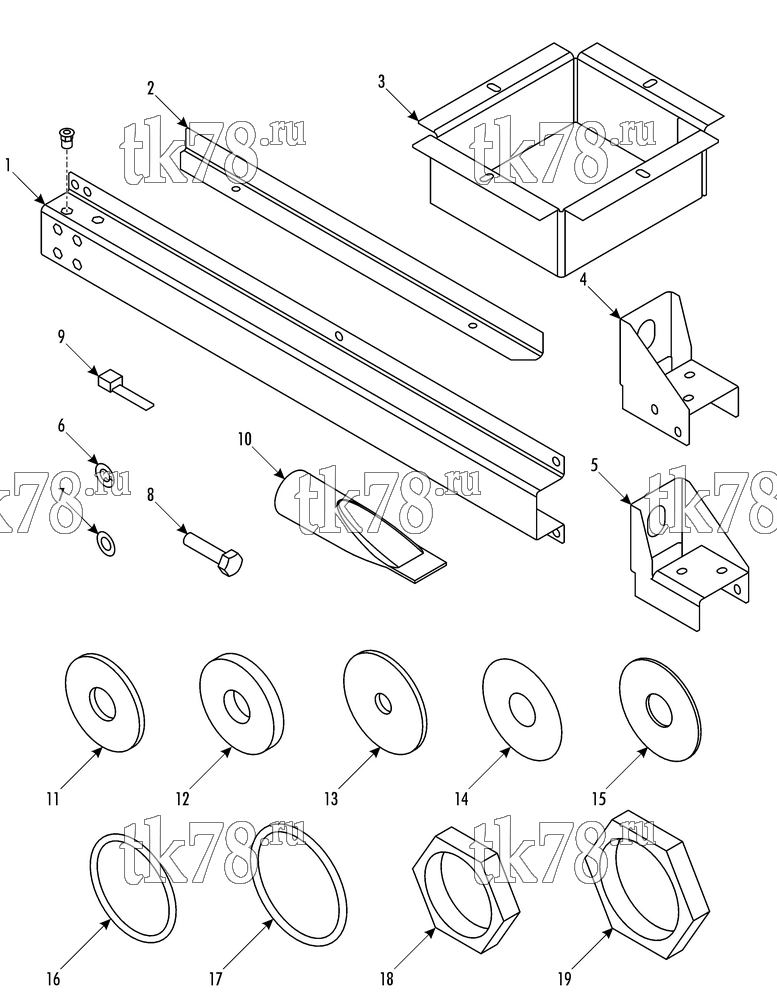

Установкa Thermo King TDD GO TRANSIT схема INSTALLATION COMPONENTS – 265H7
Обновление от: 5/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7180 | CHANNEL - side | 2 | |
| 55-9698 | NUT - captive | 8 | ||
| 2 | 92-4953 | BRACKET - support | 2 | |
| 3 | 92-4954 | DUCT - extension | 2 | |
| 4 | 98-8372 | BRACKET - support, curbside | 1 | |
| 5 | 98-8371 | BRACKET - support, roadside | 1 | |
| 6 | 55-7170 | LOCKWASHER | 8 | |
| 7 | 55-7075 | FLATWASHER | 8 | |
| 8 | 55-7035 | SCREW | 8 | |
| 9 | 55-2330 | BANDWRAP | A/R | |
| 10 | 66-1273 | VALVE - hose check | 2 | |
| 11 | 51-1954 | WASHER | 4 | |
| 12 | 51-1953 | WASHER | 4 | |
| 13 | 51-1952 | WASHER | 2 | |
| 14 | 51-1955 | WASHER | 4 | |
| 15 | 51-1956 | WASHER | 8 | |
| 16 | 33-230 | GASKET - o-ring 1-7/8ID 1/8W | 1 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
|
| 17 | 33-3707 | GASKET - o-ring 2.125ID | 1 | |
| 18 | 55-5739 | NUT #20 | 1 | |
| 19 | 55-5996 | NUT #24 | 1 |
