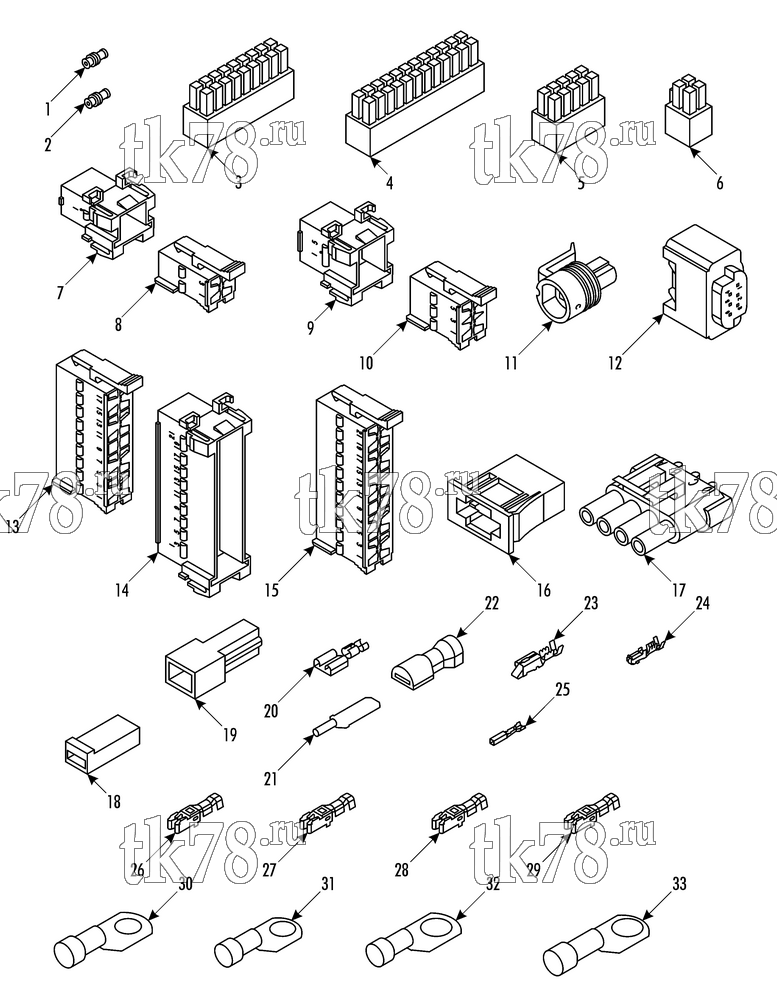

Установкa Thermo King TDD GO TRANSIT схема CONNECTORS – 265H4
Обновление от: 5/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-3289 | CONNECTOR (green) | 20 | |
| 2 | 41-9226 | CONNECTOR (blue) | 4 | |
| 3 | 41-650 | CONNECTOR - in-line (18 pin, male) | 3 | |
| 4 | 41-656 | CONNECTOR - in-line (24 pin, male) | 1 | |
| 5 | 41-3423 | CONNECTOR - in-line (10 pin) | 1 | |
| 6 | 41-654 | CONNECTOR - in-line (4 pin, male) | 7 | |
| 7 | 41-4949 | CONNECTOR - male (4 pin) | 2 | |
| 8 | 41-2769 | CONNECTOR - female (4 pin) | 1 | |
| 9 | 41-4055 | CONNECTOR - male (6 pin) | 1 | |
| 10 | 41-2767 | CONNECTOR - female (6 pin) | 2 | |
| 11 | 41-5799 | CONNECTOR - 3 way, female | 1 | |
| 12 | 41-3288 | CONNECTOR - female (6 pin) | 4 | |
| 13 | 41-3856 | CONNECTOR - female (18 pin) | 1 | |
| 14 | 41-2765 | CONNECTOR - male (22 pin) | 1 | |
| 15 | 41-3858 | CONNECTOR - female (22 pin) | 1 | |
| 16 | 41-4965 | HOLDER - fuse | 1 | |
| 17 | 44-7881 | CONNECTOR - tower (4 pin) | 6 | |
| 18 | 44-6381 | CONNECTOR - female (1 pin) | 1 | |
| 19 | 44-6264 | CONNECTOR - male (1 pin) | 1 | |
| 20 | 44-5066 | TERMINAL - pin (18-14 ga) | 5 | |
| 21 | 44-9695 | TERMINAL - pin (14-18 ga) | 1 | |
| 22 | 41-5243 | TERMINAL - pin (14-16 ga) | 5 | |
| 23 | 41-4229 | CONNECTOR - female (16 ga) | 6 | |
| 24 | 44-9240 | TERMINAL - pin (20-16 ga) | 3 | |
| 25 | 41-3290 | CONNECTOR | 15 | |
| 26 | 42-1161 | HOLDER - fuse | 4 | |
| 27 | 42-666 | HOLDER - fuse | 2 | |
| 28 | 41-9782 | HOLDER - fuse | 15 | |
| 29 | 42-1162 | HOLDER - fuse | 8 | |
| 30 | 41-9451 | TERMINAL - ring (5/16 red) | 3 | |
| 31 | 44-9995 | TERMINAL - ring (5/16 yellow) | 1 | |
| 32 | 44-5089 | TERMINAL - ring (3/8 yellow, 12-10 ga) | 5 | |
| 33 | 42-1163 | TERMINAL - ring (3/8 red) | 2 |
