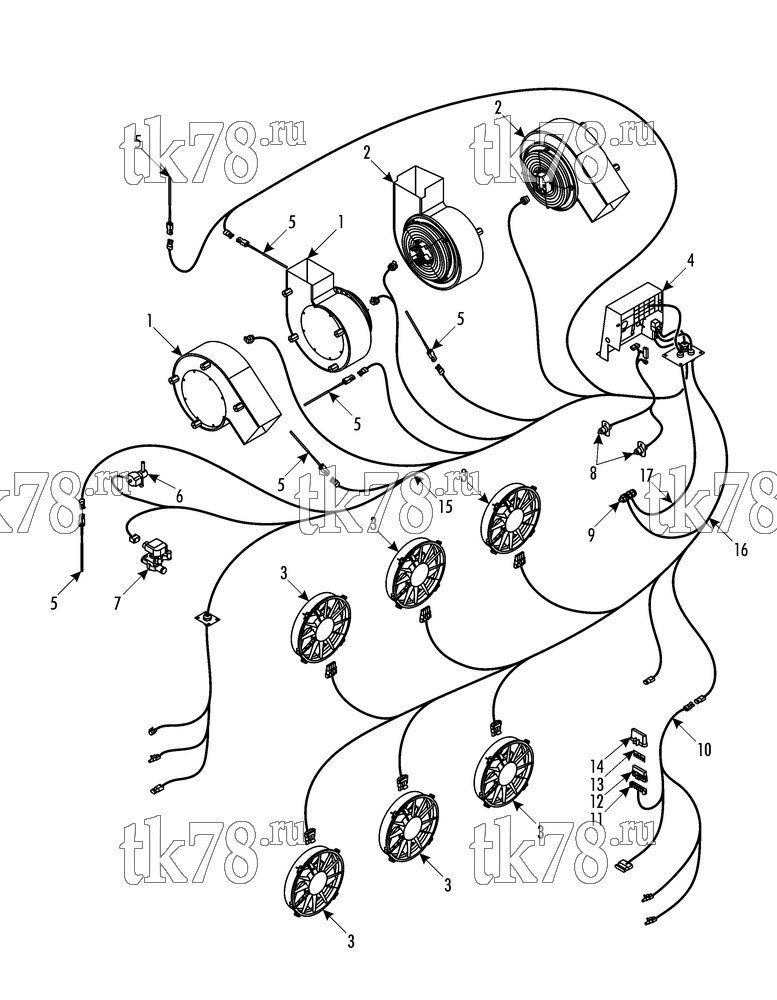

Установкa Thermo King TDD GO TRANSIT схема ELECTRICAL COMPONENTS – 265H2
Обновление от: 8/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1740 | BLOWER - assy, left | 2 | |
| 2 | 78-1739 | BLOWER - assy, right | 2 | |
| 3 | 78-1460 | FAN (24VDC) | 6 | |
| 4 | NSS | PANEL - control (see 265H3) | 1 | |
| 5 | 41-4157 | SENSOR - temperature | 6 | |
| 6 | 61-6477 | VALVE - solenoid, w/ connector | 1 | |
| 7 | 41-6592 | VALVE - water | 1 | |
| 8 | 41-9742 | CONNECTOR | 2 | |
| 9 | NSS | TERMINAL | 1 | |
| 55-9191 | STUD | 1 | ||
| 55-9189 | NUT | 4 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-3672 | LOCKWASHER | 1 | ||
| 55-3066 | LOCKWASHER | 2 | ||
| 10 | 41-5209 | HARNESS - compressor | 1 | |
| 11 | 41-1790 | LOCK - secondary (6 pin connector) | 1 | |
| 12 | 41-1789 | CONNECTOR - tower (6 pin) | 1 | |
| 13 | 41-4280 | BUSBAR (6 pin, w/ diode) | 1 | |
| 14 | 41-1787 | COVER - connector | 1 | |
| 15 | 42-1113 | HARNESS - main, Double Deck x CANAIRE | 1 | |
| 16 | 42-1055 | HARNESS - condenser Double Deck x CANAIRE | 1 | |
| 17 | 42-1056 | HARNESS - supply Double deck x Canaire | 1 |
