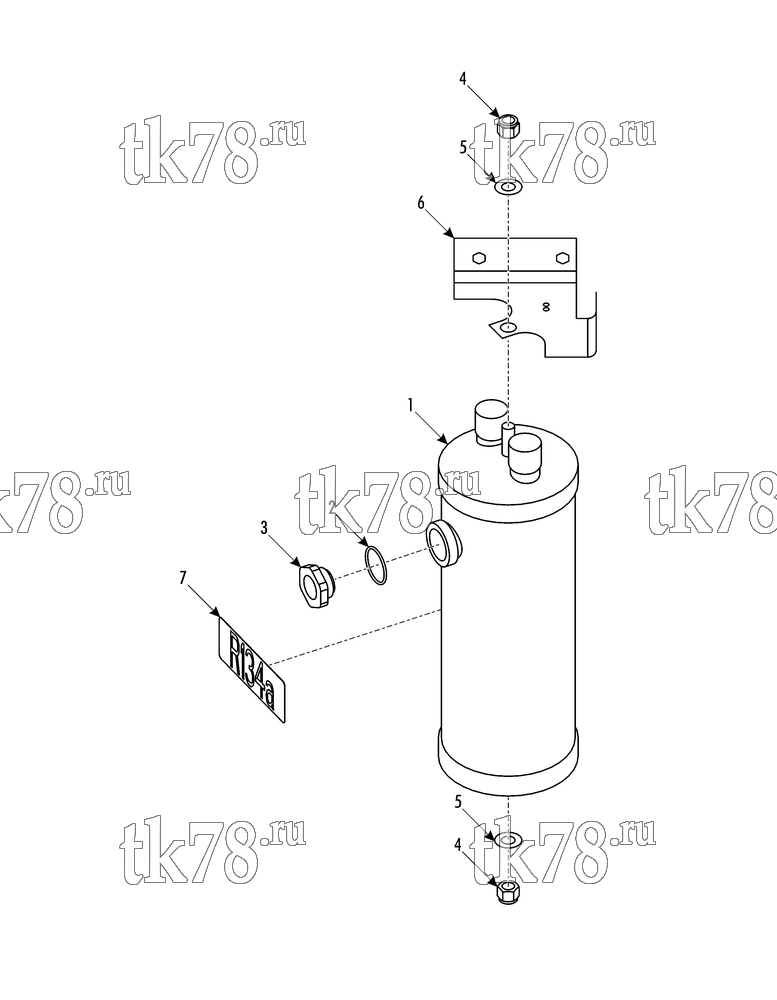

Установкa Thermo King TDD GO TRANSIT схема RECEIVER TANK GROUP – 265H1
Обновление от: 5/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2139 | TANK - receiver | 1 | |
| 2 | 33-2419 | O-ring | 1 | |
| 3 | 66-9918 | INDICATOR - liquid (sight glass) | 1 | |
| 4 | 55-4955 | LOCKNUT | 2 | |
| 5 | 55-2641 | FLATWASHER | 2 | |
| 6 | 93-934 | BRACKET - tank | 1 | |
| 55-6994 | SCREW - bracket | 3 | ||
| 55-7170 | LOCKWASHER | 3 | ||
| 51-167 | FLATWASHER | 2 | ||
| 55-4414 | FLATWASHER | 1 | ||
| 55-9837 | NUT - captive | 3 | ||
| 7 | 91-5459 | NAMEPLATE - R134a | 1 |
