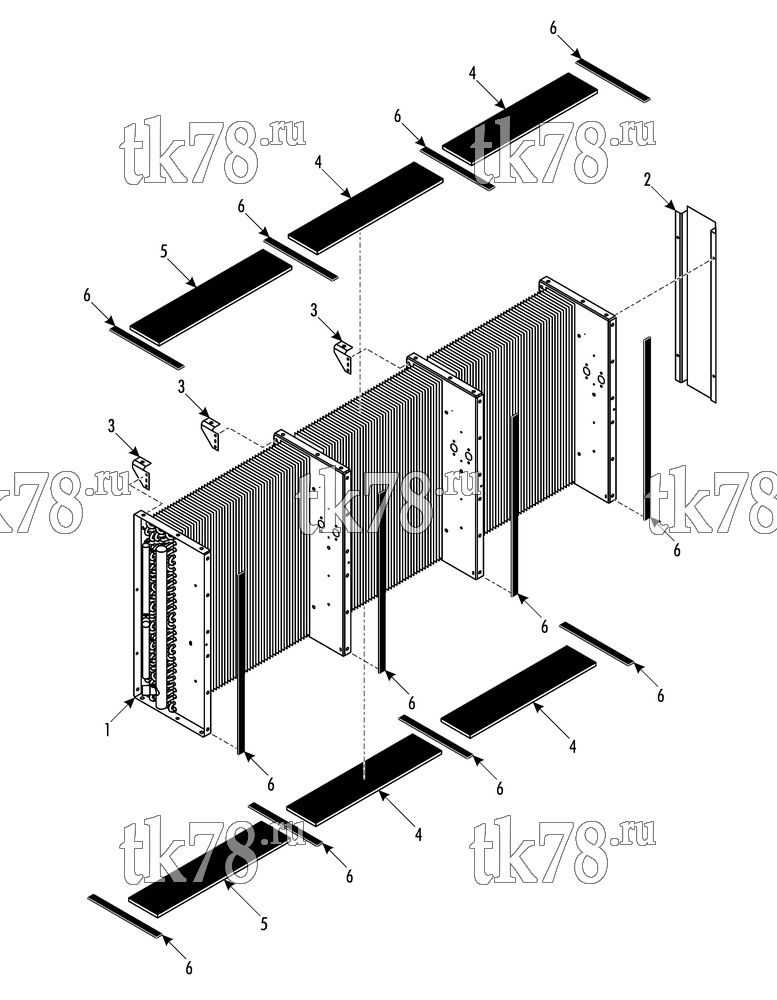

Установкa Thermo King TDD GO TRANSIT схема CONDENSER ASSEMBLY – 265G9
Обновление от: 5/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2836 | COIL - condenser | 1 | |
| 55-6994 | SCREW - coil | 12 | ||
| 55-7170 | LOCKWASHER | 12 | ||
| 51-167 | FLATWASHER | 12 | ||
| 55-7373 | NUT - captive | 46 | ||
| 55-6987 | SCREW - coil | 2 | ||
| 55-7066 | LOCKWASHER | 2 | ||
| 51-953 | FLATWASHER | 2 | ||
| 51-118 | NUT - captive | 2 | ||
| 2 | 93-927 | COVER - condenser | 1 | |
| 55-6994 | SCREW - cover | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 3 | 93-928 | BRACKET - support | 3 | |
| 55-6994 | SCREW - bracket | 6 | ||
| 55-7170 | LOCKWASHER | 6 | ||
| 51-167 | FLATWASHER | 6 | ||
| 55-7373 | NUT - captive | 6 | ||
| 55-6994 | SCREW - bracket | 3 | ||
| 55-7170 | LOCKWASHER | 3 | ||
| 51-167 | FLATWASHER | 3 | ||
| 55-9837 | NUT - captive | 3 | ||
| 4 | 93-929 | INSULATION | 4 | |
| 5 | 93-931 | INSULATION | 2 | |
| 6 | 91-3809 | STRIP - neoprene | A/R |
