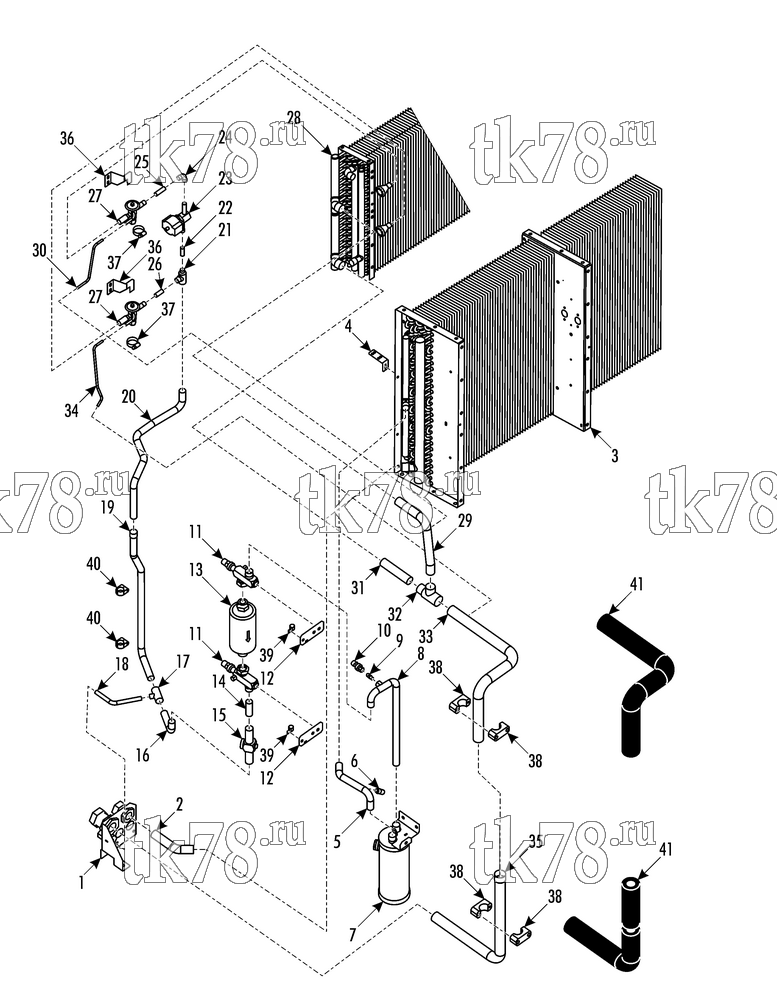

Установкa Thermo King TDD GO TRANSIT схема REFRIGERATION COMPONENTS – 265G6
Обновление от: 5/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | MODULE - inlet/outlet (see 265G7) | 1 | |
| 2 | 61-3262 | TUBE - discharge | 1 | |
| 3 | NSS | CONDENSER - assembly (see 265G9) | 1 | |
| 4 | 93-920 | BRACKET | 1 | |
| 5 | 61-3263 | TUBE - coil to receiver | 1 | |
| 6 | 66-7392 | VALVE - relief, complete | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 7 | NSS | TANK - receiver, assembly (see 265H1) | 1 | |
| 8 | 61-3264 | TUBE - receiver tank to valve | 1 | |
| 9 | 55-7213 | BODY - valve | 1 | |
| 10 | 41-5781 | TRANSDUCER - pressure | 1 | |
| 41-5781 OEM | Трансдюсер, V-Series | 32 730 ₽ |
|
|
|
10-41-5781 | Трансдюсер, V-Series | 3 820 ₽ |
|
| 11 | 66-5946 | VALVE - shut-off | 2 | |
| 12 | 93-921 | BRACKET - shut-off valve | 2 | |
| 55-8926 | SCREW - bracket | 2 | ||
| 55-2363 | LOCKWASHER | 2 | ||
| 55-4931 | FLATWASHER | 2 | ||
| 13 | 306-221 | FILTER - drier (dehydrator) | 1 | |
| 14 | 61-3218 | TUBE - valve to indicator | 1 | |
| 15 | 66-6976 | INDICATOR - liquid (sight glass) | 1 | |
| 16 | 61-3265 | TUBE - indicator to tee | 1 | |
| 17 | 55-4322 | TEE (7/8 x 7/8 x 1/2) | 1 | |
| 18 | 61-3266 | TUBE - tee to drivers box | 1 | |
| 19 | 61-3267 | TUBE - liquid line | 1 | |
| 20 | 61-6466 | TUBE - liquid line | 1 | |
| 21 | 51-1168 | TEE (7/8 x 1/2 x 1/2) | 1 | |
| 22 | 61-5256 | TUBE - straight | 1 | |
| 23 | 61-6477 | VALVE - solenoid, w/ connector | 1 | |
| 61-3269 | VALVE - solenoid | 1 | ||
| 55-3029 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 24 | 55-8812 | ELBOW - (1/2SLD 1/2SLD) | 1 | |
| 25 | 61-6467 | TUBE - straight | 1 | |
| 26 | 66-9210 | TUBE - straight | 1 | |
| 27 | 61-922 | VALVE - thermostatic expansion, R134a | 2 | |
| 28 | 67-2835 | EVAPORATOR - assembly (see 265G0) | 1 | |
| 29 | 61-6468 | TUBE - suction line | 1 | |
| 30 | 61-6469 | TUBE | 1 | |
| 31 | 61-6470 | TUBE - suction line | 1 | |
| 32 | 55-4308 | TEE (1-3/8 x 1-1/8 x 1-1/8) | 1 | |
| 33 | 61-6471 | TUBE - suction line | 1 | |
| 34 | 61-6472 | TUBE | 1 | |
| 35 | 61-3276 | TUBE - suction line | 1 | |
| 36 | 93-922 | BRACKET - thermostatic expansion valve | 2 | |
| 55-7172 | SCREW - bracket | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7373 | NUT - captive | 4 | ||
| 37 | 55-2818 | CLAMP | 2 | |
| 38 | 55-6020 | CLAMP - tube | 4 | |
| 55-9759 | SCREW - clamp | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 51-167 | FLATWASHER | 4 | ||
| 51-167 | FLATWASHER | 2 | ||
| 55-8224 | NUT | 2 | ||
| 55-9837 | NUT - captive | 2 | ||
| 39 | 55-9423 | CLAMP | 2 | |
| 40 | 55-7013 | CLAMP - tube | 2 | |
| 55-8993 | SCREW - clamp | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 51-167 | FLATWASHER | 2 | ||
| 41 | 92-4043 | INSULATION | 1 |
