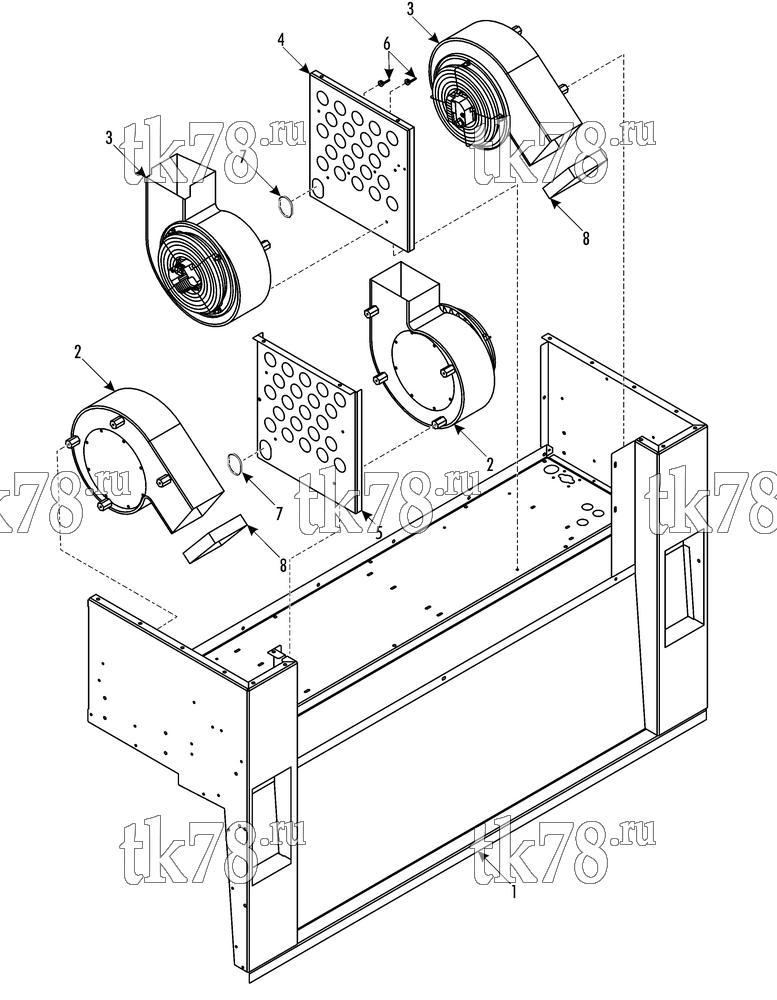

Установкa Thermo King TDD GO TRANSIT схема BLOWERS KIT – 265G5
Обновление от: 8/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-9253 | FRAME - weldment (see 265G1) | 1 | |
| 2 | 78-1739 | BLOWER - assembly, ccw | 2 | |
| 3 | 78-1740 | BLOWER - assembly | 2 | |
| 55-2957 | SCREW - blower | 16 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 4 | 93-918 | HOLDER - blower | 1 | |
| 5 | 93-919 | HOLDER - blower | 1 | |
| 55-7373 | NUT - captive | 9 | ||
| 6 | 51-1631 | STRAP - cable | 2 | |
| 7 | 92-3279 | RUBBER - profile | A/R | |
| 8 | 33-2317 | STRIP | A/R |
